As data rates rise, buyers need more than a familiar connector and an attractive price. The 100G QSFP28 module remains widely used in data centers, enterprise networks, and telecommunications systems. However, its specifications can vary significantly between parallel, duplex, single-mode, multimode, and breakout designs. This guide examines the best module types considered for 2026 purchasing decisions. It focuses on practical fit, not impressive wording. Yet, labels mislead.
The comparison considers reach, fiber type, wavelength, power consumption, temperature range, and platform compatibility. It also reviews SR4, LR4, ER4, CWDM4, PSM4, and breakout applications. Buyers should verify IEEE 802.3 requirements, MSA documents, and vendor datasheets before placing orders. A module that works perfectly in one switch may fail to achieve stable links in another. Firmware support, coding, connector cleanliness, and optical budget all matter. Small details matter.
Real purchasing experience shows that low cost does not always mean lower risk. A slightly more expensive module may reduce troubleshooting time and replacement frequency. Still, no shortlist is perfect. Some manufacturers provide limited test data, while others describe compatibility too broadly. That gap deserves attention. This article encourages buyers to compare verified specifications, request sample testing, and confirm warranty terms. It also explains where trade-offs appear between reach, density, power, and deployment simplicity. Readers will gain a clearer framework for selecting reliable 100G QSFP28 module options, while recognizing that field conditions can challenge even well-designed equipment.
100G QSFP28 Fundamentals: 4×25.78-GBd Lanes and 100GbE Standards
A 100G QSFP28 module does not carry 100GbE through one fast optical lane. Its electrical design uses four lanes, each running at 25.78125 GBd. Together, they create the familiar 100GbE interface.
IEEE 802.3ba defines 100GbE operation, including 100GBASE-SR4 and 100GBASE-LR4. The four-lane structure explains the connector design: SR4 commonly uses four transmit and four receive fibers. LR4 combines four optical wavelengths over a duplex fiber pair. The difference is physical, not cosmetic.
Standards matter here.
The Ethernet Alliance’s 2024 Ethernet Roadmap places 100GbE among established data-center speeds, while 200GbE and 400GbE support newer leaf-spine designs. Buyers should still check actual lane behavior. Some modules use 25.78125 GBd signaling, while host equipment may require strict compliance with 100GAUI-4 electrical specifications.
A practical test is simple. Confirm the switch port, fiber type, reach, and forward-error-correction setting before purchase. IEEE specifications identify multimode reach near 70 meters on common OM3 cabling for SR4, while LR4 targets approximately 10 kilometers over suitable single-mode fiber. Installation quality can change those results.
One detail is often overlooked. A module may fit mechanically but fail operationally. The cage, firmware, coding, and optical budget all matter. Published market reports may show strong 100G demand, yet demand figures do not guarantee interoperability. Buyers should treat forecasts as guidance, not proof, and verify performance with real port-level testing.
SR4, LR4, PSM4, CWDM4, and ER4: Comparing 100G Module Types

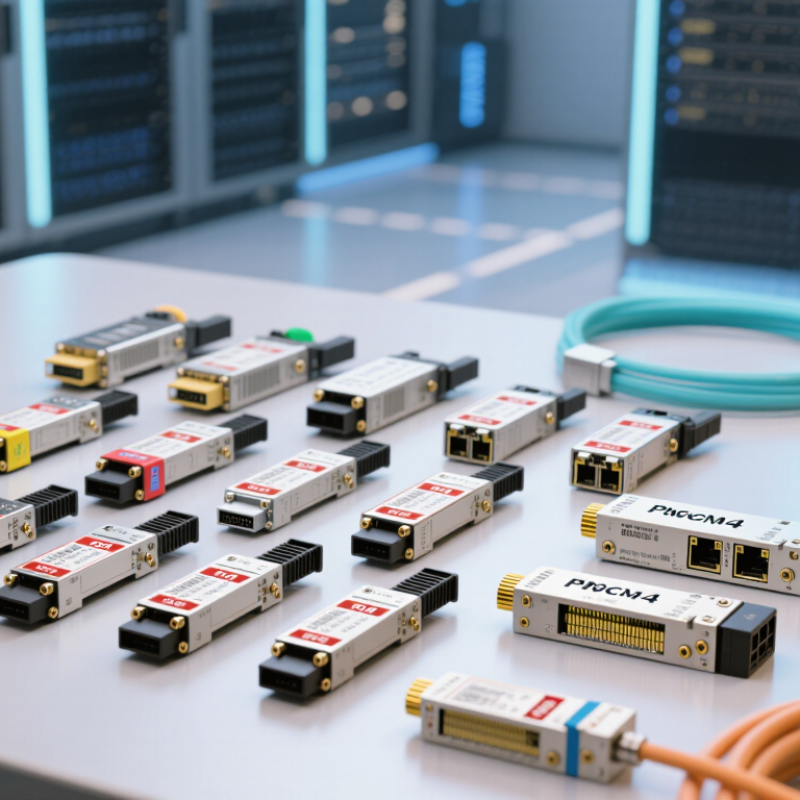

2026 Best 100G QSFP28 Module Types for Buyers
SR4, LR4, PSM4, CWDM4, and ER4 serve different fiber layouts and distances. SR4 uses four parallel 25Gbps lanes over multimode fiber. It commonly reaches 70 meters on OM3 and 100 meters on OM4. Its MPO connection suits short data center links, but polarity errors can delay installation.
LR4 sends four wavelengths through duplex single-mode fiber. It supports links up to 10 kilometers and uses standard LC connectors. PSM4 also uses four parallel lanes, but over single-mode fiber, typically reaching 500 meters. It can reduce optical complexity, although it requires parallel fiber pairs and MPO connectivity. That detail is easy to miss.
CWDM4 combines four wavelengths over duplex single-mode fiber, usually for distances near 2 kilometers. It often fits campus or extended data center connections. ER4 reaches approximately 40 kilometers, making it suitable for metropolitan links. However, its stronger reach usually brings higher cost and stricter link-budget checks. The distance numbers are not guarantees. Fiber loss, connector contamination, bends, and temperature can change actual performance. During deployment, verify wavelength compatibility, FEC settings, DOM readings, and end-to-end polarity. I would not select a module from distance alone. The physical route and maintenance habits matter more than a neat specification sheet.
2026 Best 100G QSFP28 Module Types for Buyers - SR4, LR4, PSM4, CWDM4, and ER4: Comparing 100G Module Types
| Module Type |
Common Standard / Application |
Optical Architecture |
Wavelength |
Fiber Type |
Typical Reach |
Connector |
Typical Power Range* |
Best-Fit Deployment |
Buyer Considerations |
| 100GBASE-SR4 |
IEEE 802.3bm; short-reach data-center links |
4 × 25G parallel optical lanes |
850 nm nominal |
Multimode fiber, OM3 or OM4 |
Up to 70 m on OM3; up to 100 m on OM4 |
MPO/MTP® 12-fiber, typically 8 fibers used |
Approximately 2.5–3.5 W |
Top-of-rack to server, switch-to-switch, and high-density intra-rack connections |
Lowest-cost optical option, but requires compatible multimode cabling and polarity planning. |
| 100G PSM4 |
MSA-based parallel single-mode solution |
4 × 25G parallel optical lanes |
1310 nm nominal |
Single-mode fiber, typically OS2 |
Up to 2 km |
MPO/MTP® 12-fiber, typically 8 fibers used |
Approximately 2.5–3.5 W |
Campus data centers and medium-distance interconnects where single-mode fiber is already installed |
Provides longer reach than SR4 without WDM, but needs eight single-mode fiber strands and MPO connectivity. |
| 100GBASE-CWDM4 |
CWDM4 MSA; duplex single-mode data-center links |
4 × 25G CWDM lanes multiplexed onto one fiber pair |
1271, 1291, 1311, and 1331 nm |
Single-mode fiber, typically OS2 |
Up to 2 km |
Duplex LC |
Approximately 3.5–4.5 W |
High-density switch-to-switch and leaf-to-spine connections using only two fibers |
A practical alternative to PSM4 when fiber count and panel density are important; verify link-loss and FEC requirements. |
| 100GBASE-LR4 |
IEEE 802.3ba; long-reach Ethernet links |
4 × 25G LAN-WDM lanes multiplexed onto one fiber pair |
Approximately 1295, 1300, 1305, and 1310 nm |
Single-mode fiber, typically OS2 |
Up to 10 km |
Duplex LC |
Approximately 3.5–4.5 W |
Data-center interconnects, metro access, and campus links up to 10 km |
A widely interoperable choice for 10 km links; confirm host port coding and optical budget before deployment. |
| 100GBASE-ER4 |
IEEE 802.3bm; extended-reach Ethernet links |
4 × 25G LAN-WDM lanes multiplexed onto one fiber pair |
Four LAN-WDM wavelengths around 1310 nm |
Single-mode fiber, typically OS2 |
Up to 30 km for many 100G ER4 implementations; some versions support up to 40 km |
Duplex LC |
Approximately 4.5–6.0 W |
Extended campus, metro, and data-center interconnects beyond the LR4 distance range |
Higher optical power and budget may require attenuation on short links; check the exact reach rating and host thermal limits. |
|
Notes: Optical reach depends on fiber quality, connector loss, splice loss, transceiver specifications, and link margin. Power figures are representative ranges rather than universal limits and can vary by implementation, temperature, and host platform. MPO/MTP® denotes a multifiber push-on connector format; connector polarity and fiber mapping must be matched at both ends.
|
Reach and Wavelength Data: 70 m to 40 km at 850–1310 nm
2026 Best 100G QSFP28 Module Types for Buyers
Reach and wavelength matter more than a low purchase price when selecting a
100G QSFP28 module.
Short-reach SR4 designs commonly use
850 nm light and support about
70 to 100 meters over parallel multimode fiber.
They suit data-center rows with short, predictable cable paths. OM4 fiber can extend practical reach, but installation quality still matters.
For longer links, 1310 nm modules offer clearer options.
DR designs often reach around 500 meters over single-mode fiber, while FR versions can cover about
2 kilometers.
LR modules typically support up to 10 kilometers, making them suitable for campus connections and compact metropolitan links.
ER4 designs may reach 30 to 40 kilometers, depending on optical budget, connector loss, and link engineering.
Distance charts are useful, but they can mislead. A 40-kilometer rating does not guarantee stable service through poor splices, dirty connectors, or excessive patch panels. I recommend checking wavelength, fiber type, transmit power, receiver sensitivity, and digital diagnostics together. Measure the actual route, not the building’s floor-plan distance. Small details matter.
There is also a practical compromise. A 1310 nm module may provide more reach than needed, yet its cost and power use can be higher. An 850 nm option may be efficient, but it leaves little margin for future expansion. Buyers should test compatibility with switch ports and verify real optical readings after installation. Specification sheets are necessary, not sufficient.
Fiber, Connector, and FEC Requirements for QSFP28 Deployment
For 2026, choosing a 100G QSFP28 module requires more than checking reach.
Fiber type, connector design, and FEC settings must match the entire link. Multimode SR4 modules usually use OM3 or OM4 fiber with an MPO connector. Single-mode options may use parallel MPO links or duplex LC connectors. The wrong fiber can increase loss and create unstable performance.
Connector cleanliness matters immediately. A tiny dust particle can raise insertion loss or damage an optical end face. Inspect and clean every connector before installation. Check MPO polarity, key orientation, and lane mapping carefully. One reversed lane can keep the link down. Duplex LC connections also need correct transmit and receive alignment.
FEC deserves practical attention.
Many 100G links operate without FEC, while some designs require RS-FEC through the switch or host port. Requirements depend on the optical standard, module coding, and equipment configuration. Never assume that two 100G modules share the same FEC behavior. Verify link budgets, maximum insertion loss, and supported FEC modes in their technical documents. A longer cable is not always the real problem. In field deployments, engineers sometimes blame the module before testing fiber loss and polarity. That mistake is common, and I have seen it waste valuable troubleshooting time.
2026 Buyer Criteria: Power, DOM Monitoring, MSA Compliance, and Compatibility
For 2026 buyers, QSFP28 selection should begin with power, not price. Short-reach SR4 modules often suit data-center links under 100 meters, while LR4 supports longer single-mode connections. Actual consumption varies by design, but a 1-watt difference across hundreds of ports becomes significant. The Uptime Institute’s 2024 Global Data Center Survey reported that 54% of recent outages cost below $100,000, while 8% exceeded $1 million. Efficient optics cannot prevent every outage, but lower heat can reduce cooling pressure.
DOM monitoring is essential for practical maintenance. Check temperature, supply voltage, laser bias, and transmit and receive optical power. DOM is helpful, not magical. A drifting value may indicate dirty connectors, fiber damage, or host-side issues. LightCounting’s 2024 optical communications forecast showed continued data-center demand for higher-speed optical components, increasing the value of early fault detection. Buyers should record baseline readings after installation, then compare them during quarterly checks.
MSA compliance must match the host platform, firmware, FEC mode, and breakout design. QSFP28 modules should support the relevant SFF and IEEE specifications, but “MSA compliant” does not guarantee universal interoperability. Confirm connector type, wavelength, reach, and switch coding before purchase. I would also test one module in the exact production port. Compatibility tables can be incomplete. That is an uncomfortable detail, but field testing remains more reliable than a perfect-looking datasheet.
Conclusion
Choosing the right 100G QSFP28 module in 2026 requires understanding both its optical design and deployment conditions. QSFP28 typically uses four 25.78-GBd lanes to deliver 100GbE, with options such as SR4, LR4, PSM4, CWDM4, and ER4 serving different distances and network environments. Reach can range from approximately 70 meters to 40 kilometers, while operating wavelengths generally fall between 850 and 1310 nm. These differences determine whether a solution is best suited for short-reach data center links, parallel single-mode connections, or extended campus and metro networks.
Buyers should also evaluate fiber type, connector format, lane configuration, and FEC requirements before deployment. Multimode and single-mode cabling can affect both reach and installation cost, while connector compatibility is essential for reliable operation. Additional selection criteria include power consumption, temperature tolerance, DOM monitoring, MSA compliance, and interoperability with existing equipment. A careful comparison of specifications helps ensure stable performance, manageable maintenance, and a practical upgrade path for high-bandwidth networks.
