High-performance mechanical cages featuring advanced EMI mitigation, customizable heat sink options, and press-fit alignment for 10G/25G high-speed links.
As transmission data rates accelerate past 10Gbps and 28Gbps per channel toward 56G and 112G PAM4, the physical interface between optical transceiver modules and the host Printed Circuit Board (PCB) encounters severe signal integrity (SI) and electromagnetic interference (EMI) challenges. Ganged SFP Cages, structurally configured as a contiguous 1xN (where N typically represents 2, 4, 6, or 8 ports inline), are engineered specifically to address these physics-based constraints while maximizing port density.

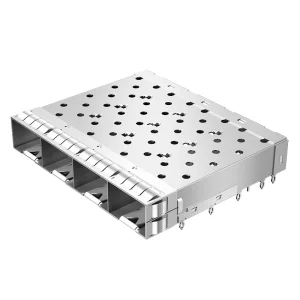

Mechanics & Alignment: Integrated grounding fingers, elastomer gaskets, and specialized press-fit compliant pins (often designed as 'Eye of the Needle' contacts) guarantee consistent electrical contact with the PCB ground planes. Lumopt Opto Technology's 1xN cages comply precisely with SFF-8432 and SFF-8433 standards, guaranteeing full mechanical compatibility with industry-standard SFP, SFP+, and SFP28 transceivers.
Designed for mission-critical telecommunications, cloud edge architectures, and rugged high-density industrial switches.
How system designers utilize 1xN ganged configurations in varying structural and regulatory environments.
| Region / Target Market | Primary Application Scenario | Key Hardware Constraints | Lumopt Tailored Solution |
|---|---|---|---|
| North American Hyperscalers | Edge Data Centers, AI clusters & high-performance computing (HPC) switches. | Demanding thermal dissipation under continuous high-power loads. | 1x4 and 1x6 ganged cages equipped with custom-profile vertical heatsinks. |
| European Telecom & Broadbands | 5G Fronthaul Active Antenna Units (AAU) and baseband processing units. | Strict environmental sealing and IP67 weather-resistance limits. | Press-fit SFP cages with ultra-durable elastomeric gaskets preventing EMI leaks. |
| Asian Industrial Smart Factories | Ruggedized Ethernet switches, PLC automation hubs, and IoT gateways. | High mechanical vibration, shock, and prolonged operating temperatures. | THT solder-tail SFP+ cages (e.g., U77-E16D3-3001 equivalents) for maximum board retention. |

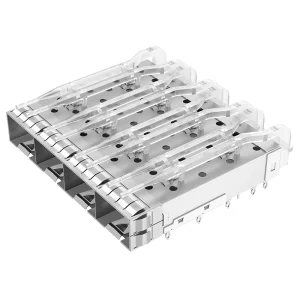

In modern high-speed transmission networks, standard mechanical architectures do not fit all. For instance, in European telecom cabinets where passive airflow is often the primary cooling mechanism, our 1x2 or 1x4 press-fit cages with integrated light pipes allow real-time diagnostic monitoring without compromising the airflow integrity required by neighboring components. On the other hand, US cloud-scale topologies prioritize rapid field replacements, making press-fit cages with dedicated extraction-tool access points the preferred selection.
Tracking the evolution of physical layer interfaces from 10G SFP+ to 800G and Co-Packaged Optics (CPO).
Focused on optimizing contact geometry and impedance tuning at 12.5 GHz Nyquist frequency to maintain signal-to-noise margins.
Introduction of dual-channel interfaces and advanced internal EMI baffles to support dense PAM4 configurations with complex thermal profiles.
Moving toward complex multi-port stacked cages, advanced direct-attach copper (DAC) support, and highly structured thermal riding heat sinks.
Transition of the optical engine inside the chip package. The SFP cage evolves to serve as an optical connector socket with laser source bays.
A transparent view inside our ISO9001-certified factory floors and step-by-step quality control systems.
As a leading exporter from China, Lumopt Opto Technology (registered as Luguang Communication Technology Co., Ltd. in China) enforces rigorous manufacturing procedures to ensure that every single 1xN ganged cage meets the tolerance limits specified by MSA. Our factory floor houses high-precision stamping lines, automated soldering systems, and comprehensive optoelectronic testing equipment.
Deploying networking infrastructure requires trusted manufacturing partners who can scale production while maintaining structural consistency. Lumopt Opto Technology Co., Ltd. (known domestically as Luguang Communication Technology Co., Ltd.) leverages a complete supply chain in optical and copper interconnects.
By localizing raw materials sourcing, high-speed progressive metal stamping, and automatic plastic injection molding, we minimize lead times to a fraction of the standard western supply lines. Our integrated facilities enable us to easily process high-volume OEM/ODM projects for ganged SFP cages, ensuring consistent board retention, precise pitch layout, and robust plating quality across millions of shipped units annually.
Answers to common structural design questions from network hardware and system engineers.
Ganged SFP Cages (1xN) consist of a single row of ports arranged side-by-side directly on the host PCB. This provides a lower profile, making them ideal for standard 1U height systems. Stacked Cages (2xN) stack ports vertically, doubling the port density within the same horizontal width but requiring a taller physical envelope and more complex host PCB layout routing to balance signals from the upper and lower ports.

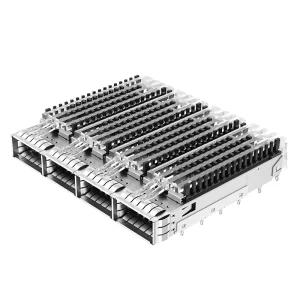

Press-fit technology utilizes compliant pins (such as 'eye-of-the-needle') that form a gas-tight mechanical connection with the PCB vias when pressed into place, eliminating the need for thermal solder reflow. This simplifies assembly, minimizes thermal stress on adjacent components, and makes field repair easier. THT soldering, conversely, provides a highly robust mechanical bond, which is typically preferred in industrial environments subject to high vibrations.

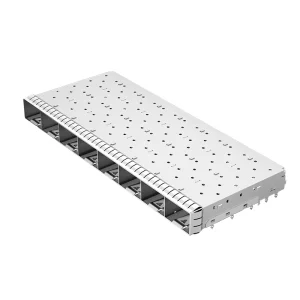

At higher frequencies, slot-to-slot crosstalk and resonance within the metal cavity become critical factors. Our 1xN ganged cages use internal grounding dividers to isolate electromagnetic coupling between adjacent ports. Furthermore, the selection of contact pin plating and matching the internal connector profile helps maintain impedance matching at 100 Ohms (+/- 10%) across the entire transmission channel.

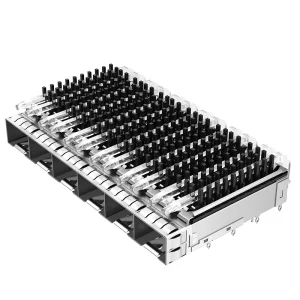

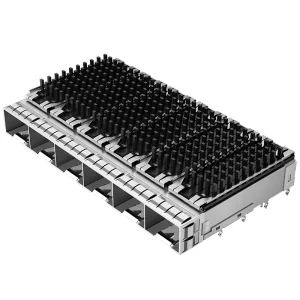

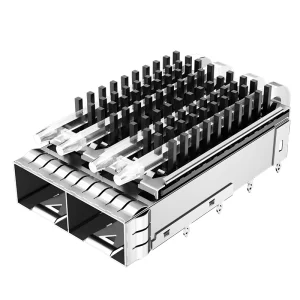

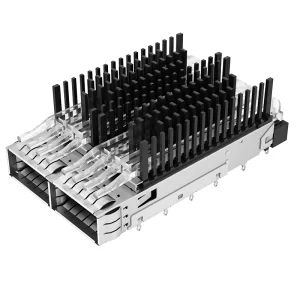

We offer SFP cages with custom heatsinks designed to maximize heat flow from the transceiver module. The heatsink is held against the top of the cage by a spring clip, ensuring direct thermal contact. Standard finishes include nickel-plated copper and clear anodized aluminum, with fin heights and direction (vertical/horizontal) customizable depending on the host switch chassis's airflow patterns.
Yes. All of our cage components comply with the latest SFF-8432 and SFF-8433 multisource agreements (MSA). Additionally, our raw materials are RoHS and REACH compliant, and the manufacturing process is certified under ISO 9001:2015 standards, ensuring universal cross-compatibility with transceivers from Cisco, Juniper, TE Connectivity, and Amphenol.

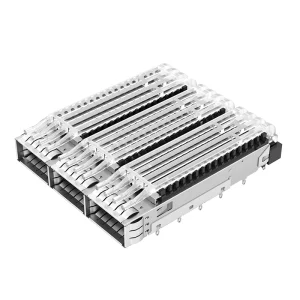

Yes. We support custom light pipe configurations (1-segment, 2-segment, or multi-segment) with varying exit windows. These are designed using optical-grade polycarbonate to guide LED signals from the host PCB to the front panel, providing clear physical port status indications without introducing light bleeding between channels.
