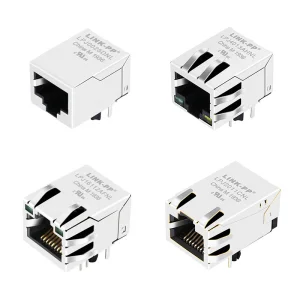

Premium Surface-Mount Technology (SMT/SMD) RJ45 Female Jacks with Integrated Magnetics, PoE Support, and LED Indicators.
In modern Ethernet network design, physical interface layout density and assembly automation constraints dictate component choice. The migration from standard through-hole technology (THT) to Surface Mount Technology (SMT) for RJ45 female connectors represents a major shift toward high-performance, automated PCB assembly. By eliminating the necessity for manual or wave soldering of secondary components, SMT RJ45 connectors streamline production, lower process defect rates, and enhance thermal profiles during lead-free reflow processes.
However, implementing an SMT RJ45 modular jack requires careful design consideration. The mechanical strain of repeated RJ45 cable insertion and extraction forces (nominally 20 Newtons minimum retention) cannot be borne by surface-mount signal solder pads alone. Consequently, high-performance SMT RJ45 female connectors feature mechanical structural enhancements—such as robust plastic locating pegs, solderable metal hold-downs (tabs), or shield solder pins—specifically engineered to absorb mechanical torque and isolate the signal coplanarity zones from stress fractures.
Understanding Solder Coplanarity & Thermal Resilience
A critical parameter in SMT RJ45 connector design is terminal coplanarity. Standard specifications mandate a maximum coplanarity variance of less than 0.1mm (0.004 inches) across all solder contacts. If coplanarity deviates, open circuits will occur after infrared reflow soldering. High-temperature plastics, such as Liquid Crystal Polymer (LCP) or High-Temperature Nylon (PA9T), are utilized to survive peak reflow temperatures of 260°C without dimensional deformation or blistering.

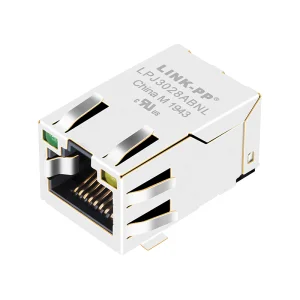

By housing isolation transformers, common-mode chokes, and decoupling capacitors directly inside the RJ45 shield cage, integrated Magjacks shield Ethernet signal paths from EMI and reduce board space requirements by up to 50%.
Advanced SMT RJ45 connectors feature specialized high-current pins and transformer cores optimized to deliver IEEE 802.3af (15.4W), 802.3at (30W), and 802.3bt (up to 90W) Power over Ethernet without localized saturation or thermal runaway.
Utilizing brass or copper alloy shielding plates, pre-plated with nickel, SMT modular jacks provide 360-degree grounding paths to combat Electrostatic Discharge (ESD) and Electromagnetic Interference (EMI).
The demand for high-reliability surface mount RJ45 female connectors is driven by the rapid growth of automation, edge computing, and smart manufacturing. From a global market perspective, high-frequency signal integrity and mechanical stability are non-negotiable. Modern distributed control systems (DCS), automated guided vehicles (AGVs), and server blades require board-to-board and board-to-cable interfaces that can withstand intense ambient vibrations, high relative humidity, and thermal cycling.
Furthermore, the shift toward localized computing power—such as Multi-access Edge Computing (MEC) hubs and smart traffic management units—requires network interfaces that are easily assembled on automated pick-and-place lines. SMT RJ45 connectors minimize assembly errors, ensuring that enterprise-level infrastructure remains continuously online, with minimal downtime and maintenance overheads.
Lumopt Opto Technology Co., Ltd., registered as Luguang Communication Technology Co., Ltd. in China, is a professional Chinese manufacturer and exporter specializing in high-performance network interfaces and optical transceivers.
We focus on the R&D, production, and customization of high-reliability interconnect products—including advanced SMT RJ45 connectors, magnetic RJ45 jacks, and full-series optical modules covering 10G, 25G, 100G, 400G, 800G, and 1.6T speeds. Our products are widely applied in data centers, telecom networks, cloud computing hubs, AI computing clusters, and enterprise communication systems.
Equipped with standardized dust-free production workshops, advanced automatic testing equipment, and a professional technical R&D team, we implement strict quality control throughout the entire manufacturing flow. All our connectors and optical transceivers comply with international industry standards and have passed relevant reliability certifications, supporting OEM & ODM customized services to meet diverse demands from global buyers.
A transparent look at our strict manufacturing sequences ensuring high coplanarity and robust electrical insulation.
1. Wire Twisting
2. PCB Tinning
3. Component Soldering
4. Pin Shearing
5. Semi-Finished Testing
6. Outer Shell Assembly
7. High-Potential (Hi-Pot) Testing
8. Parametric Testing
9. Optical & Planarity Inspection
10. Tape-and-Reel Packaging
Maintaining zero defects requires precise measurement instruments. Explore our advanced quality control equipment.
Because SMT components sit directly on the outer layers of the circuit assembly without requiring long protruding pins, they are highly suited for space-constrained, localized hardware deployments:
Global electronics manufacturers rely on Chinese supply chains to maintain competitive time-to-market advantages. At Lumopt (Luguang Communication Technology), our production facilities are optimized to mitigate component supply disruptions through three core pillars:
The networking industry continues to scale transmission frequencies. Standard 10/100Base-T configurations are transitioning to multi-gigabit copper connectivity (2.5G, 5G, and 10GBase-T networks). Our technical roadmap focuses on addressing these demands:
First, signal path optimization is critical. Higher frequencies (up to 500MHz for 10Gbps copper runs) demand tighter crosstalk (NEXT, FEXT) and return loss mitigation. We use optimized multi-layer internal PCBs within our SMT RJ45 Magjack housings to maintain signal integrity.
Second, miniaturization remains a priority. Standard RJ45 configurations are being challenged by smaller form factors like Single Pair Ethernet (SPE) interfaces. Our future roadmap integrates SPE technology alongside SMT footprints, delivering compact, lightweight, and cost-effective connection solutions for industrial IoT nodes.
Operating in European, American, and Asian markets requires compliance with local standards. All Lumopt SMT RJ45 connectors adhere to global environmental and technical guidelines:
Technical answers to common design and integration questions regarding SMT RJ45 jacks.
SMT RJ45 connectors enable full assembly automation. Traditional through-hole components require manual insertion or wave soldering, which increases production costs and assembly error rates. SMT components utilize pick-and-place systems and reflow soldering, saving space on the bottom side of the PCB.
To compensate for the absence of through-hole pins, our SMT RJ45 jacks feature robust mechanical locating posts and solderable shield tabs. These design elements absorb mechanical stress, preventing force transfer to the signal solder joints.
We utilize Liquid Crystal Polymer (LCP) and High-Temperature Nylon (such as PA9T or PA46). These thermoplastics feature high thermal stability, minimal expansion, and prevent dimensional changes or deformation during lead-free reflow cycles.
We supply configurations supporting 10/100 Base-T, 1000 Base-T (Gigabit), and multi-gigabit speeds. Additionally, customers can specify PoE, PoE+, or PoE++ configurations, with or without integrated LEDs and shielding configurations.
We offer gold plating options ranging from Gold Flash to 3u", 6u", 15u", 30u", and 50u" gold plating thickness, tailored to meet specific durability requirements and signal transmission specifications.
Yes, we customize SMD configurations to meet diverse PCB design demands. We support custom pin orientations, PoE ratings, and specific housing profiles.

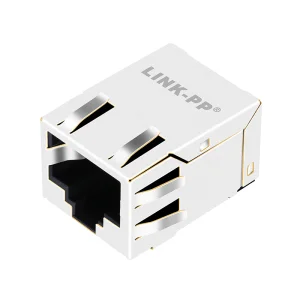

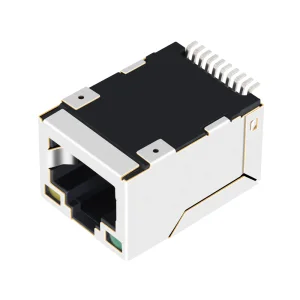

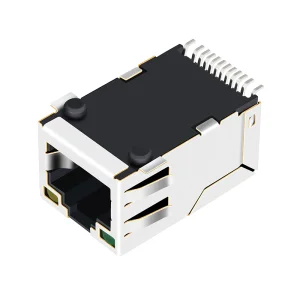

Explore our high-performance shielding, PoE capability, and space-saving vertical and tab-up SMT jacks.
