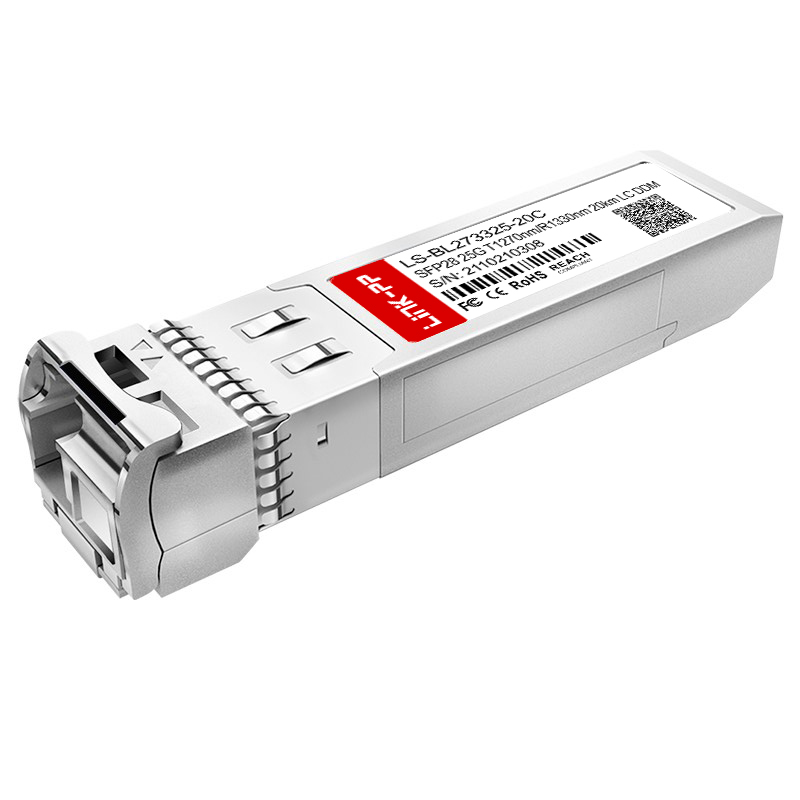

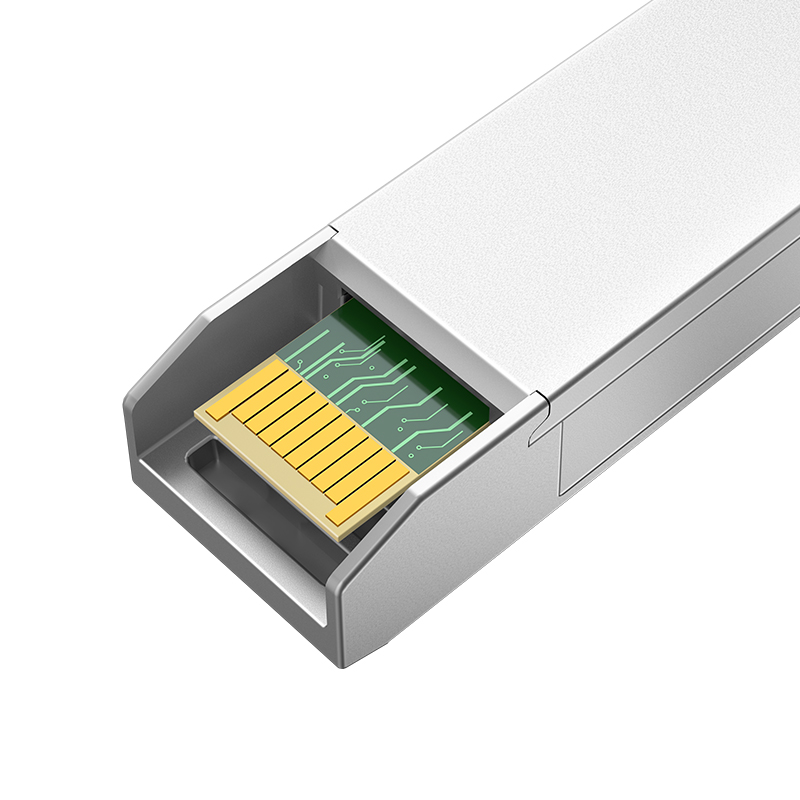

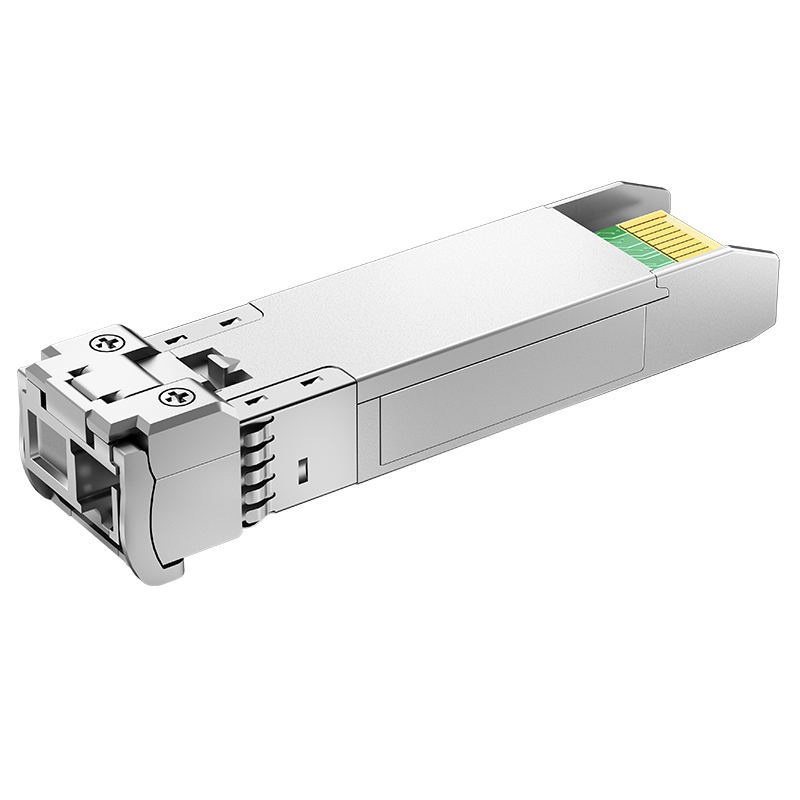

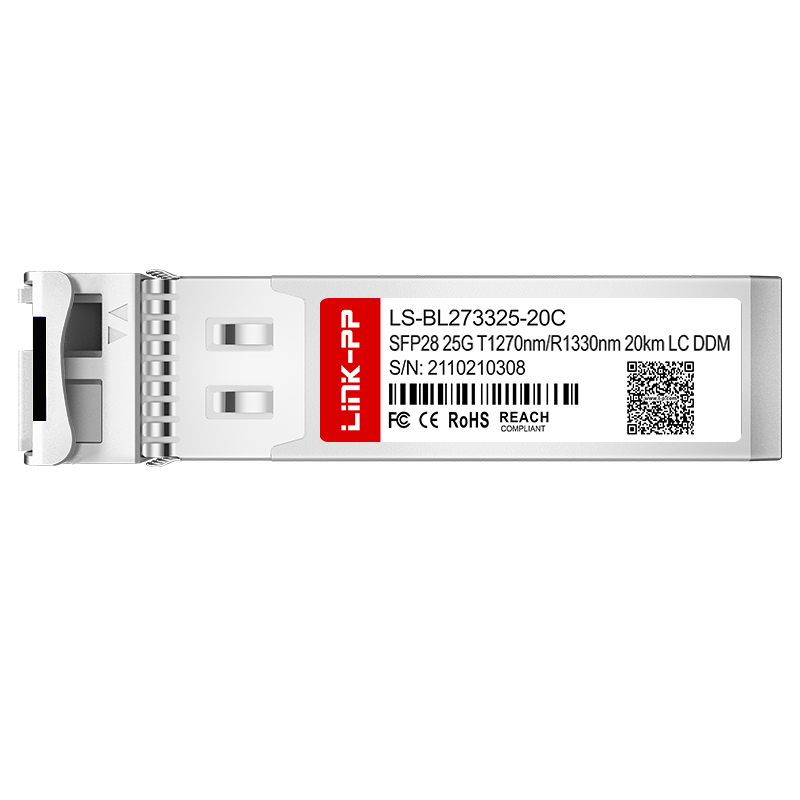

1270nm-TX/1330nm-RX Bidirectional Simplex LC Optical Module Single Mode SFP28 25G BiDi Transceiver 20km

Product Description

1270nm-TX/1330nm-RX Bidirectional Simplex LC Optical Module Single Mode SFP28 25G BiDi Transceiver 20km
Products Description
Item 25G SFP28 Transceiver
Part No. LS-BL273325-20C
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 1270nm-TX/1330nm-RX
Max Cable Distance 20km
Media SMF
Connector Simplex LC
Optical Component DFB/PIN
TX Power 0~6dBm
Receiver Sensitivity <-14dBm
Receiver Overload 2.5dBm
Power Consumption ≤1.2W
Extinction Ratio 3.5dB
DDM/DOM Supported
Commercial Temperature Range 0℃ to 70°C / -40℃ to 85℃
Protocols eCPRI, SFF-8472, SFF-8432, SFF-8431
Warranty 5 Years
Sample Available
