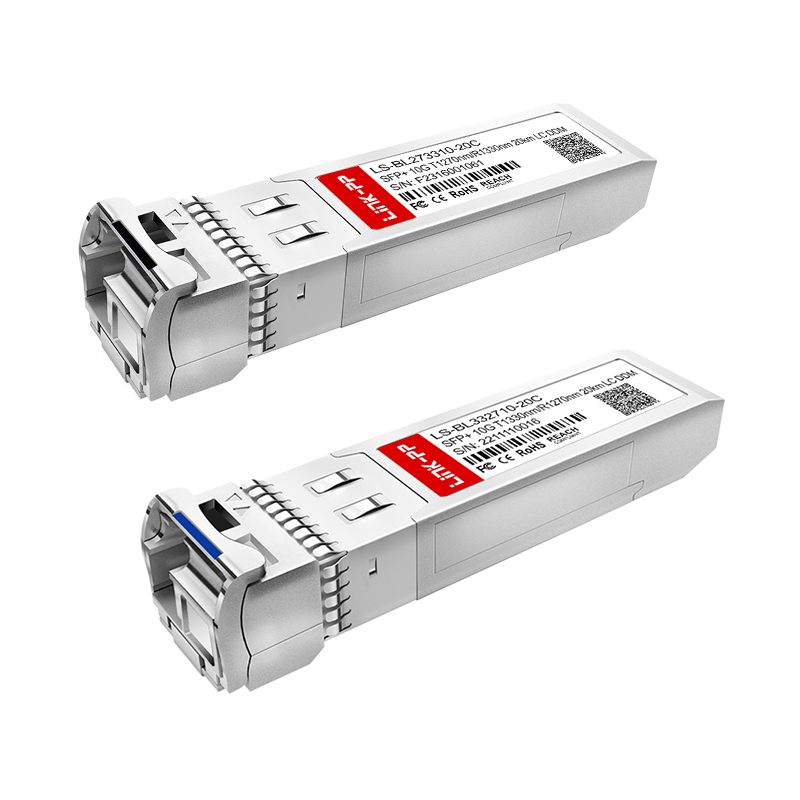

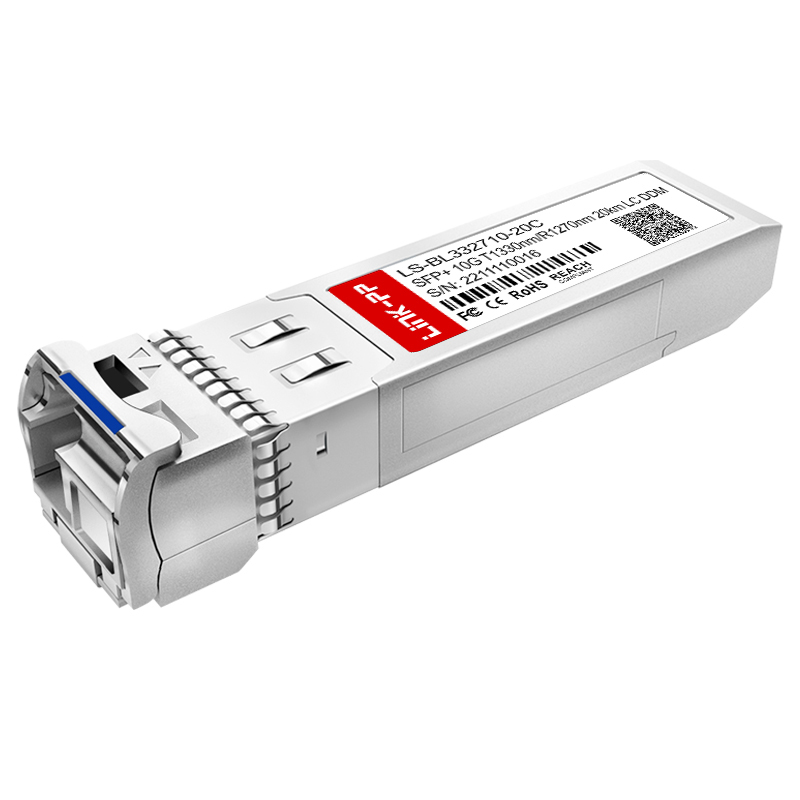

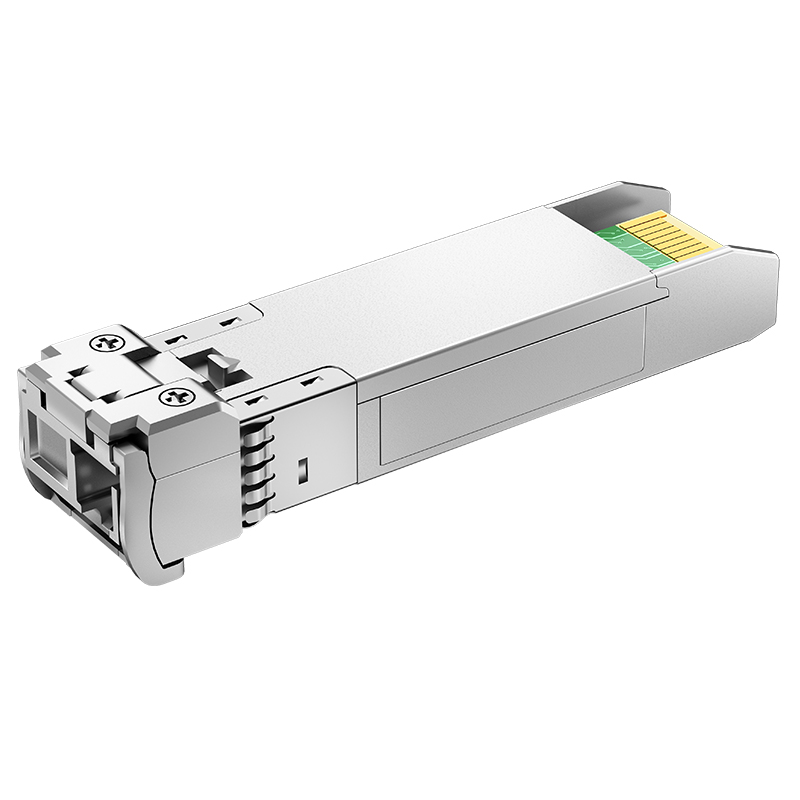

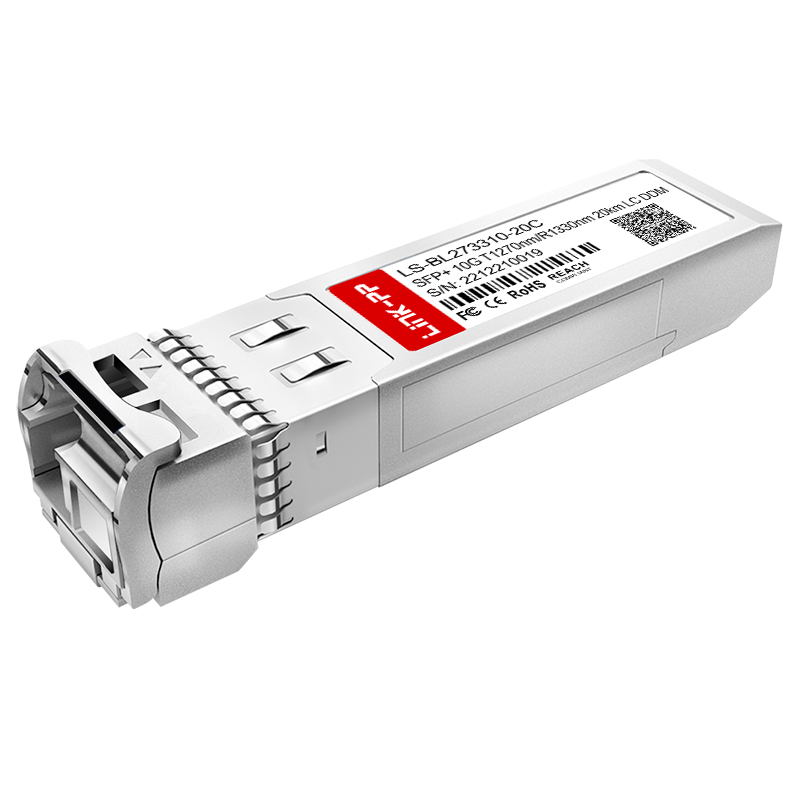

| Item | 10G BiDi SFP+ |
| Part Status | Active |
| Form Factor | SFP+ |
| Max Data Rate | 10G |
| Max Cable Distance | 20km |
| Wavelength | 1270nm/1330nm |
| Connector | Simplex LC |
| Optical Components | DFB/PIN |
| Media | SMF |
| TX Power | -6~3dBm |
| Receiver Sensitivity | <-14.4dBm |
| Powerbudget | 8.4dB |
| Receiver Overload | 0.5dBm |
| Power Consumption | ≤1W |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
| Sample | Available |
Providing end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules with product rates ranging from 10G to 800G has been developed, providing high-quality optical interconnection solutions for data centers.
High reliability and performance products with mature and efficient lasers and mainstream chip solutions are provided to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which meet all the needs of various scenarios in 4G/5G systems.
Aiming at global communication network constructors, FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products are provided.
To ensure the normal operation of the communication line, the optical cable O&M solution integrating an optical line protection system (OLP) and an optical line monitoring system (OLM) is provided.
