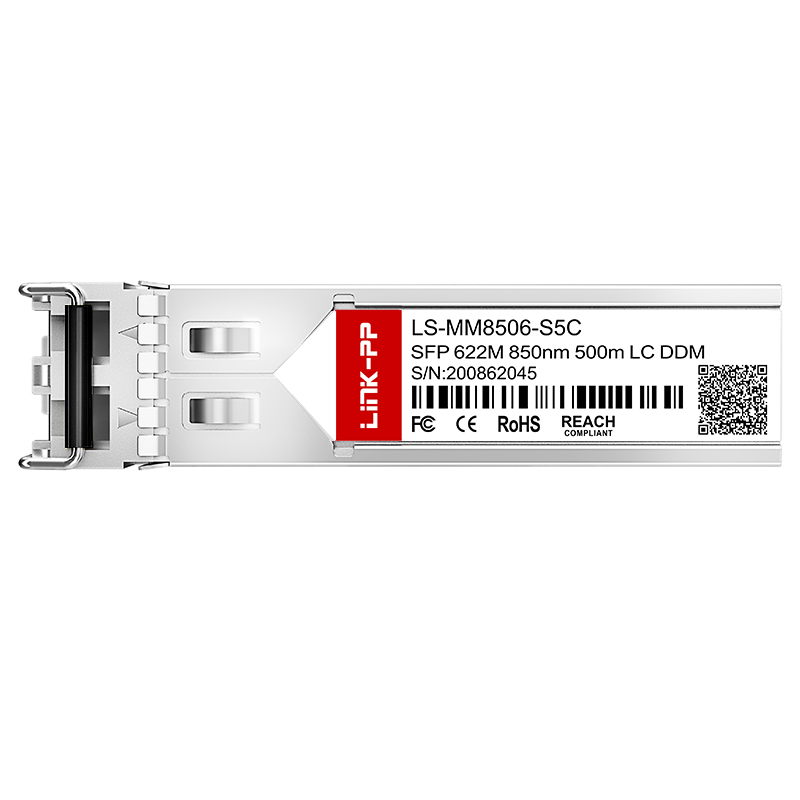

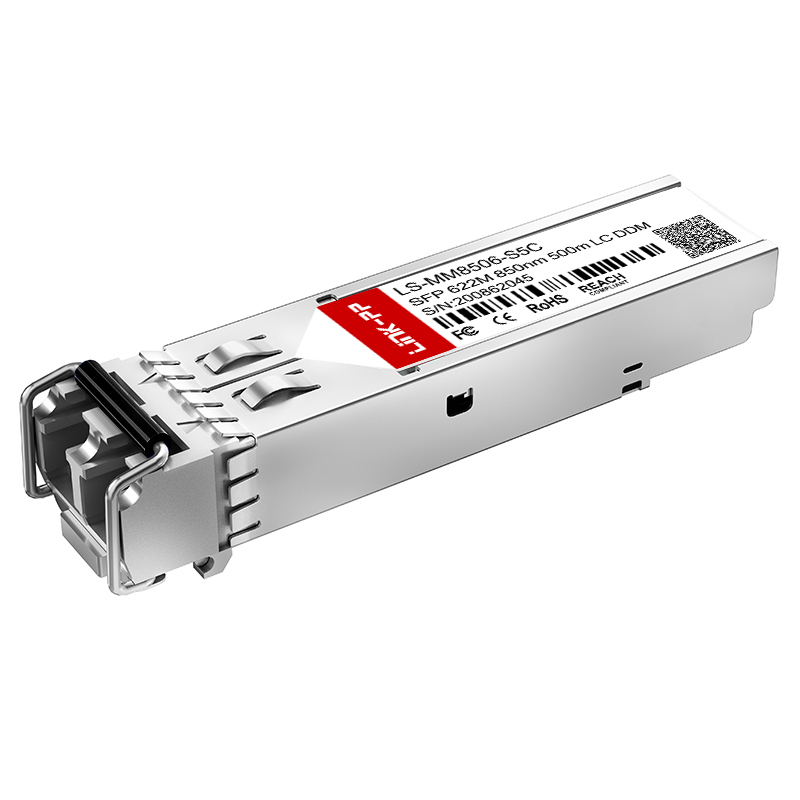

MMF 850nm SFP 622M 500m Multimode Duplex LC Optical Transceiver Module

Product Description

MMF 850nm SFP 622M 500m Multimode Duplex LC Optical Transceiver Module
Part No. LS-MM8506-S5C
Form Factor SFP
Max Data Rate 622Mbps
Wavelength 850nm
Max Cable Distance 500m
Connector Duplex LC
Media MMF
Transmitter Type VCSEL
Receiver Type PIN
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Transceiver Solutions
Support Full Range Of 622M SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM8506-S5C 622Mbps 850nm 500m Multi-mode Yes
LS-SM3106-S5C 622Mbps 1310nm 500m Single Mode Yes
LS-SM3106-02C 622Mbps 1310nm 2km Single Mode Yes
LS-MM3106-02C 622Mbps 1310nm 2km Multi-mode Yes
LS-SM3106-20C 622Mbps 1310nm 20km Single Mode Yes
LS-SM3106-40C 622Mbps 1310nm 40km Single Mode Yes
LS-SM5506-80C 622Mbps 1550nm 80km Single Mode Yes
LS-SM5506-A0C 622Mbps 1550nm 100km Single Mode Yes
LS-SM5506-A2C 622Mbps 1550nm 120km Single Mode Yes
