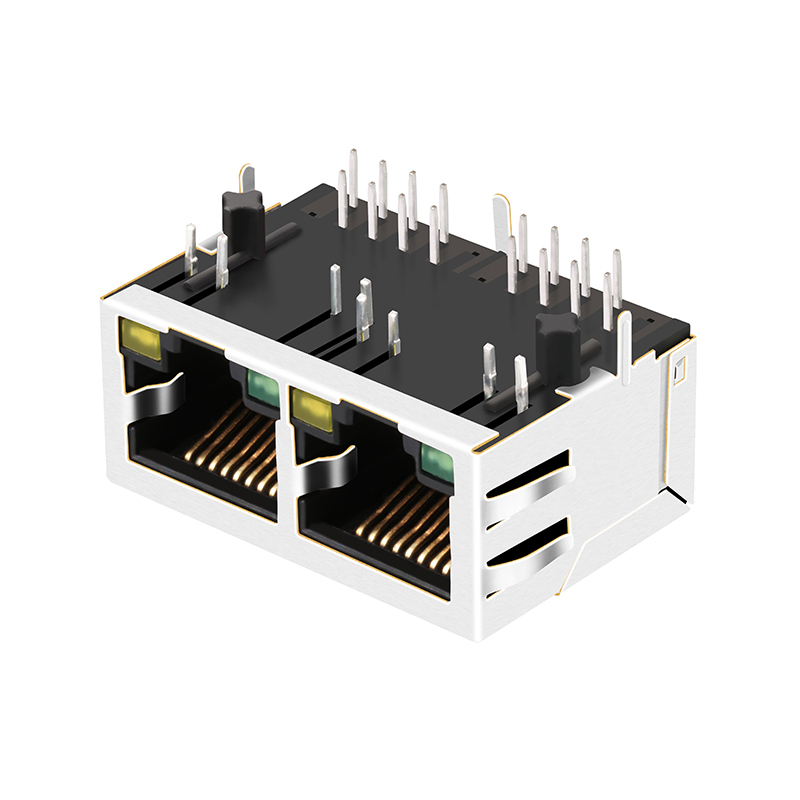

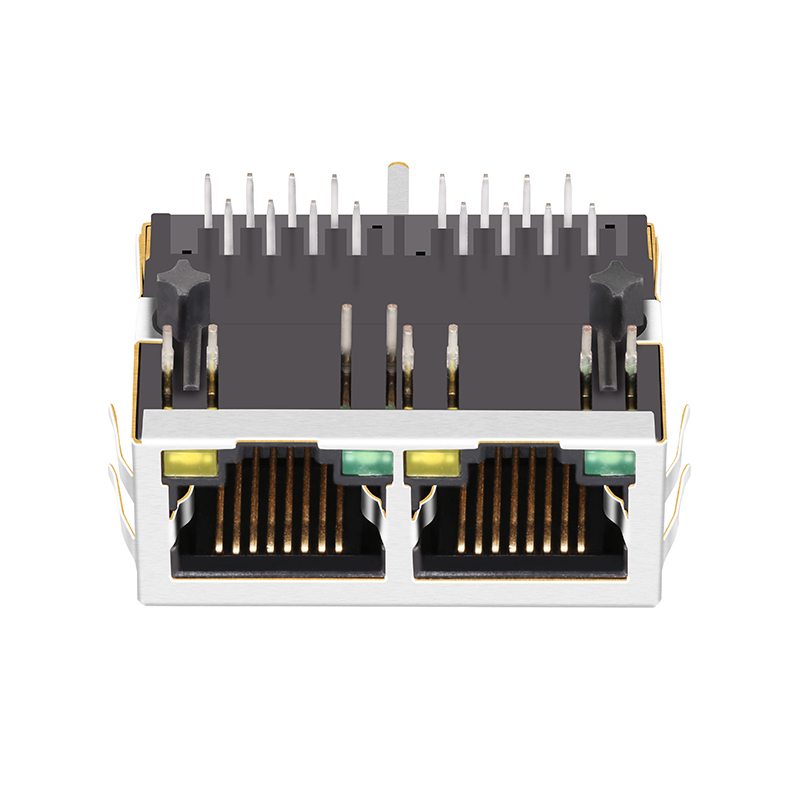

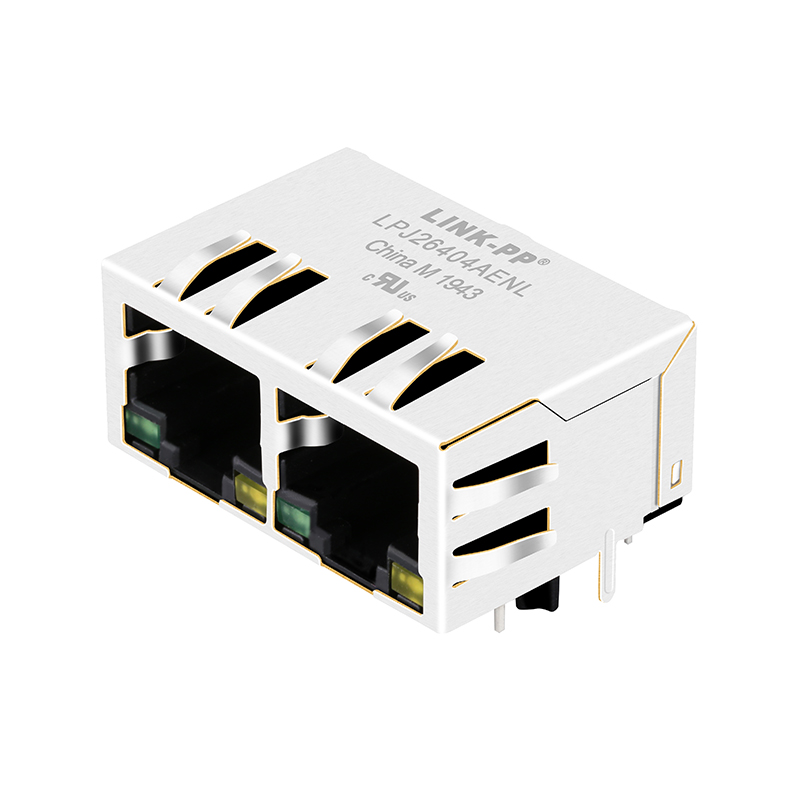

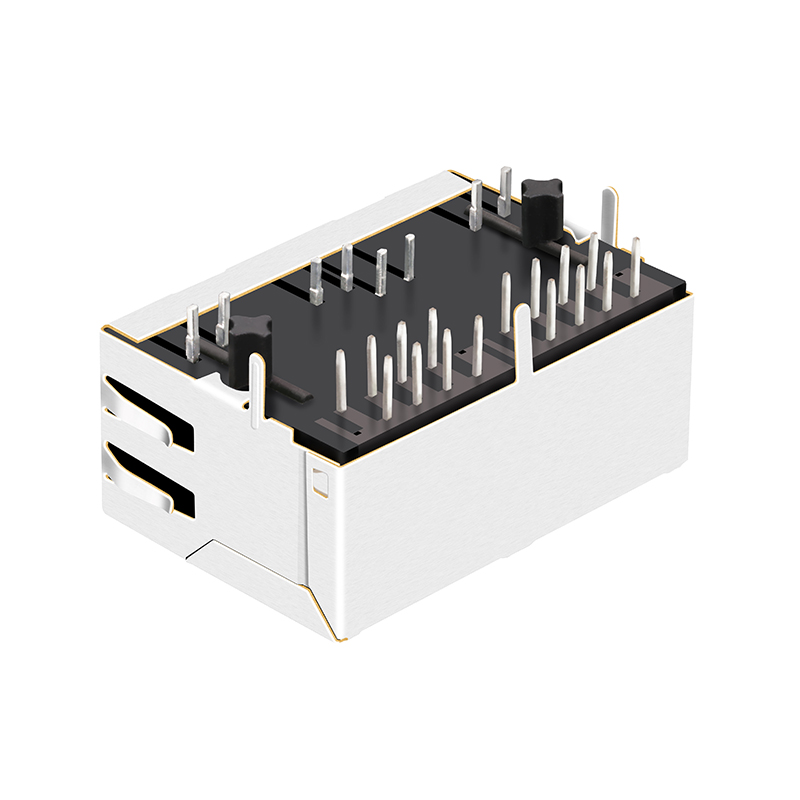

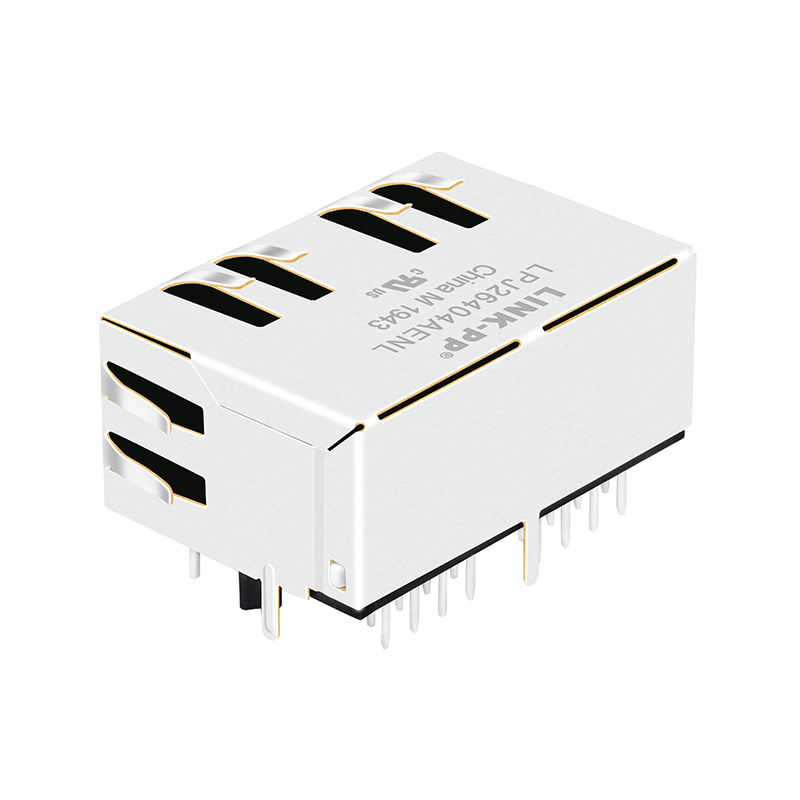

62F-1204GYD2NL JX80-0037NL 1x2 Dual Ports 10/100 Base-t Ethernet RJ45 Magnetic Jack With Leds
62F-1204GYD2NL JX80-0037NL 1x2 Dual Ports 10/100 Base-t Ethernet RJ45 Magnetic Jack With Leds
62F-1204GYD2NL JX80-0037NL 1x2 Dual Ports 10/100 Base-t Ethernet RJ45 Magnetic Jack With Leds
62F-1204GYD2NL JX80-0037NL 1x2 Dual Ports 10/100 Base-t Ethernet RJ45 Magnetic Jack With Leds
62F-1204GYD2NL JX80-0037NL 1x2 Dual Ports 10/100 Base-t Ethernet RJ45 Magnetic Jack With Leds
1 / 5
62F-1204GYD2NL JX80-0037NL 1x2 Dual Ports 10/100 Base-t Ethernet RJ45 Magnetic Jack With Leds
62F-1204GYD2NL JX80-0037NL 1x2 Dual Ports 10/100 Base-t Ethernet RJ45 Magnetic Jack With Leds
62F-1204GYD2NL JX80-0037NL 1x2 Dual Ports 10/100 Base-t Ethernet RJ45 Magnetic Jack With Leds
62F-1204GYD2NL JX80-0037NL 1x2 Dual Ports 10/100 Base-t Ethernet RJ45 Magnetic Jack With Leds
62F-1204GYD2NL JX80-0037NL 1x2 Dual Ports 10/100 Base-t Ethernet RJ45 Magnetic Jack With Leds

62F-1204GYD2NL JX80-0037NL 1x2 Dual Ports 10/100 Base-t Ethernet RJ45 Magnetic Jack With Leds

Send Inquiry

Product Description

Ethernet Connector Overview
62F-1204GYD2NL JX80-0037NL 1x2 Dual Ports 10/100 Base-t Ethernet RJ45 Magnetic Jack With Leds
Products Description
Item RJ45 Female Connector
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(Non PoE)
Number of Ports 1x2 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Blueprint
☞ Products Overview ☜
Product Grid Navigation
Dimensional Drawing 1
Dimensional Drawing 2
Dimensional Drawing 3
Dimensional Drawing 4
Technical Info Graphic 1
Technical Info Graphic 2
Technical Info Graphic 3
Manufacturing Facility 1
Manufacturing Facility 2
Manufacturing Facility 3
Manufacturing Facility 4
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees apply.
What is your delivery time?
Ready items are shipped from stock, and mass production orders take 15-30 days.
What after-service can you offer?
We provide a one-year guarantee period along with online technical support 24 hours a day.
Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so we can discuss the details.
What is your advantage?
We bring 19 years of professional production experience and establish long-term partnerships with leading global technology corporations.
