Product Description

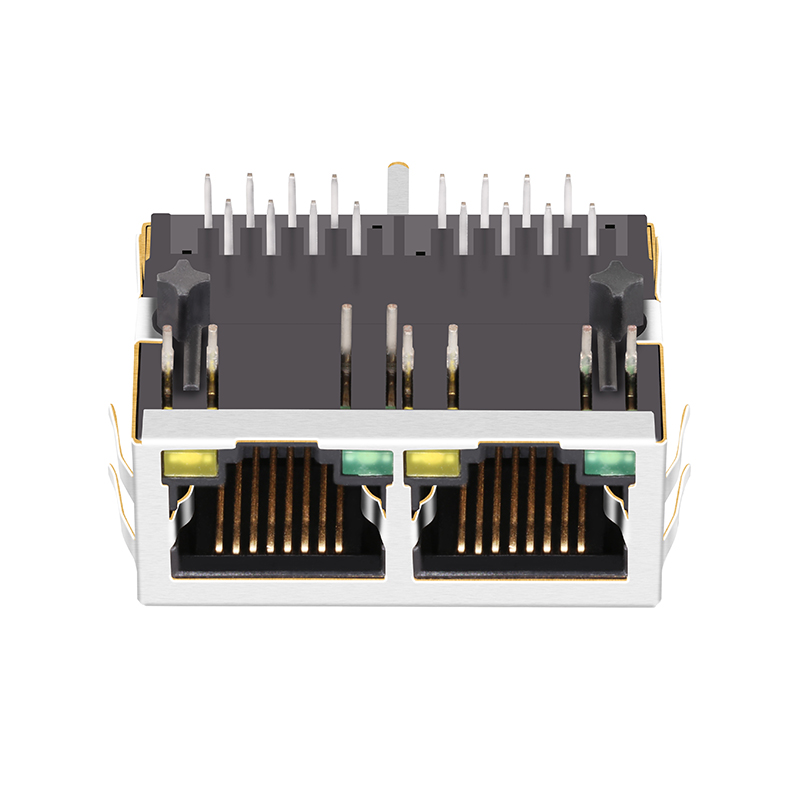

Product Image 1

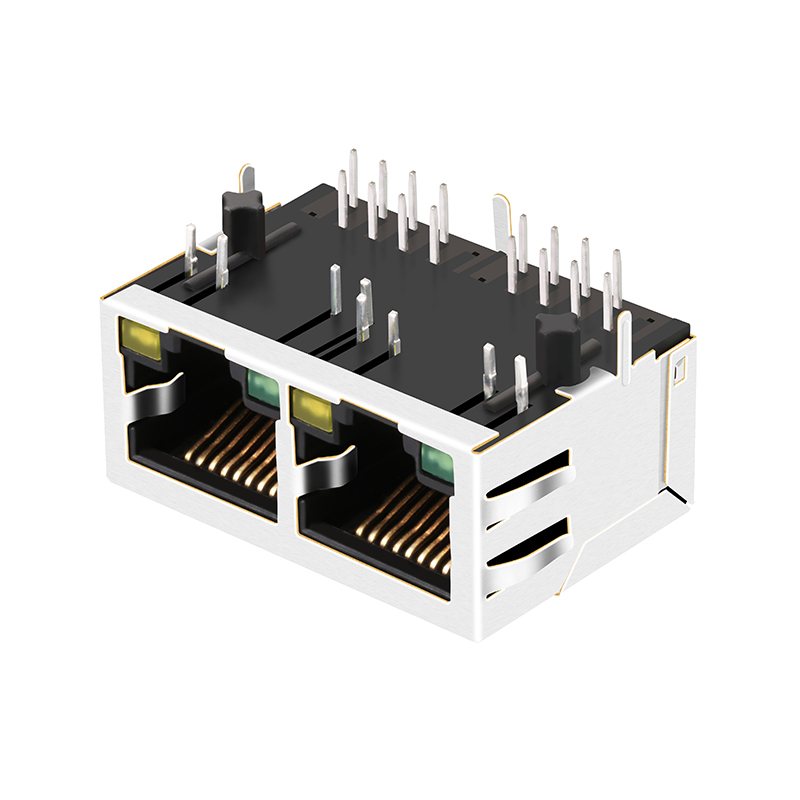

Product Image 2
Specification
Item Value
Part Number LPJ26404AENL
Cross Reference Part Number JXD0-2005NL / JXR8-1001NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Yellow Led
Number of Cores per Jack 4
Shielding Shielded, Emi Finger
Number of Ports 1x2 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Detail Image 7
Detail Image 8
