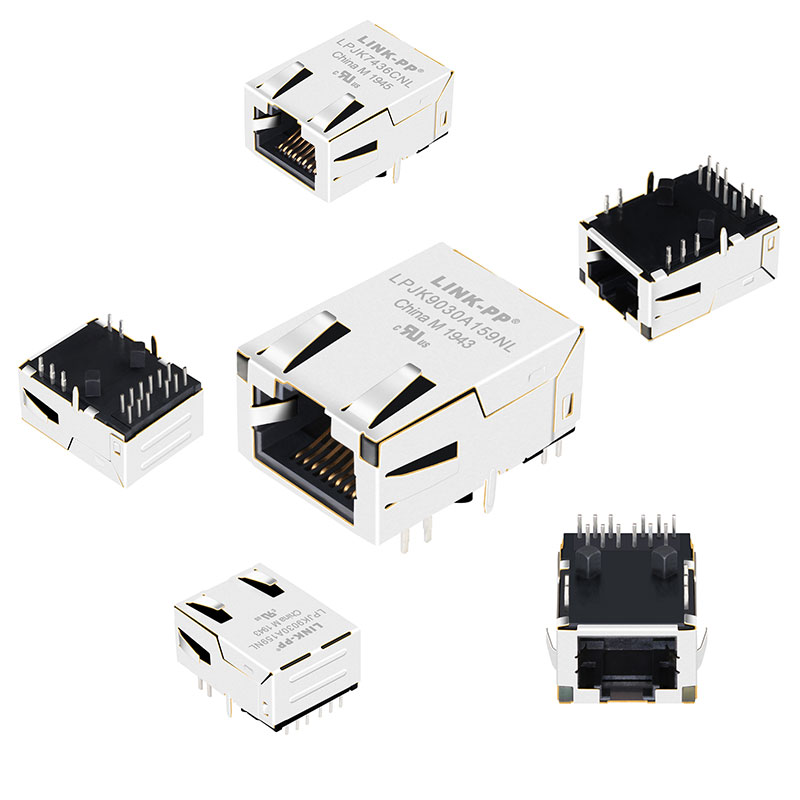

Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
1 / 5
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002

Shielded With EMI Fingers RJ45 Modular Connector RJ000002

Send Inquiry

Product Description

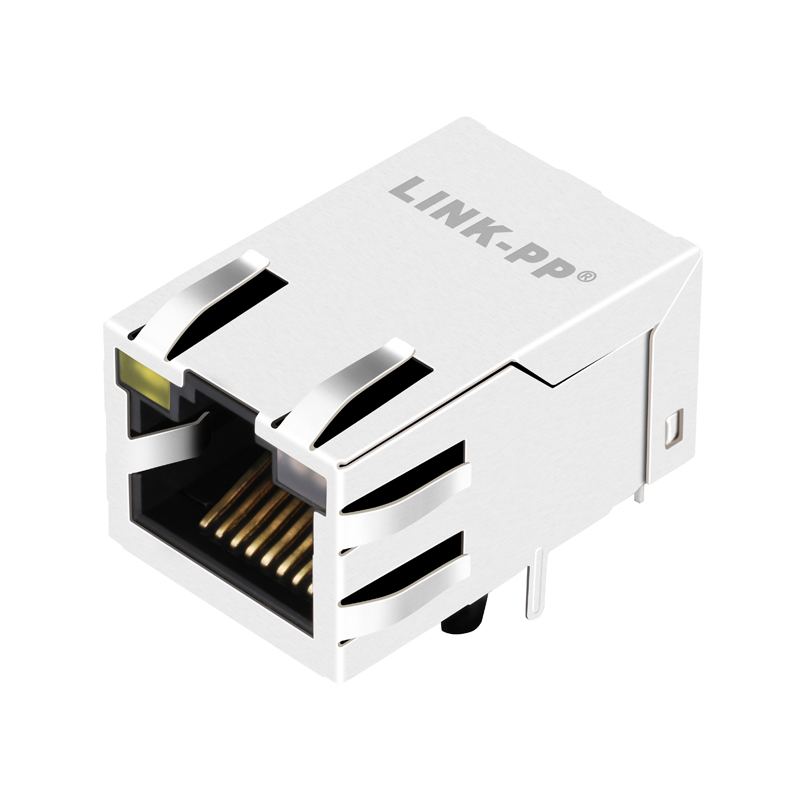

Shielded with EMI Fingers RJ45 Modular Connector RJ000002
RJ45 Modular Connector
Products Description
Item RJ45 Female Connector
Replaceable Part Number RJ000002
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product drawing specifications

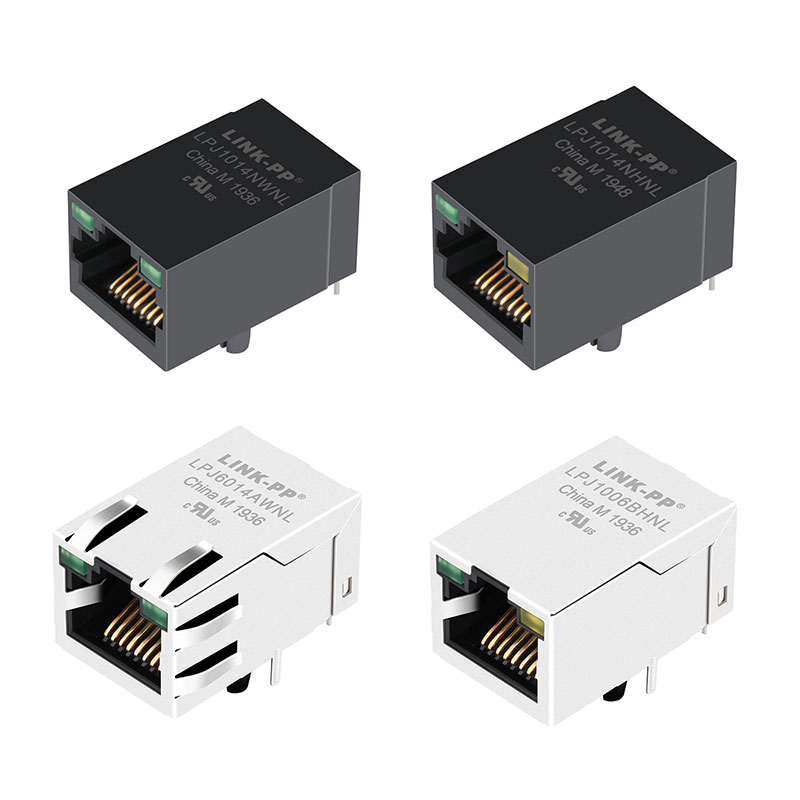

Product detail view 1 Product detail view 2 Product detail view 3

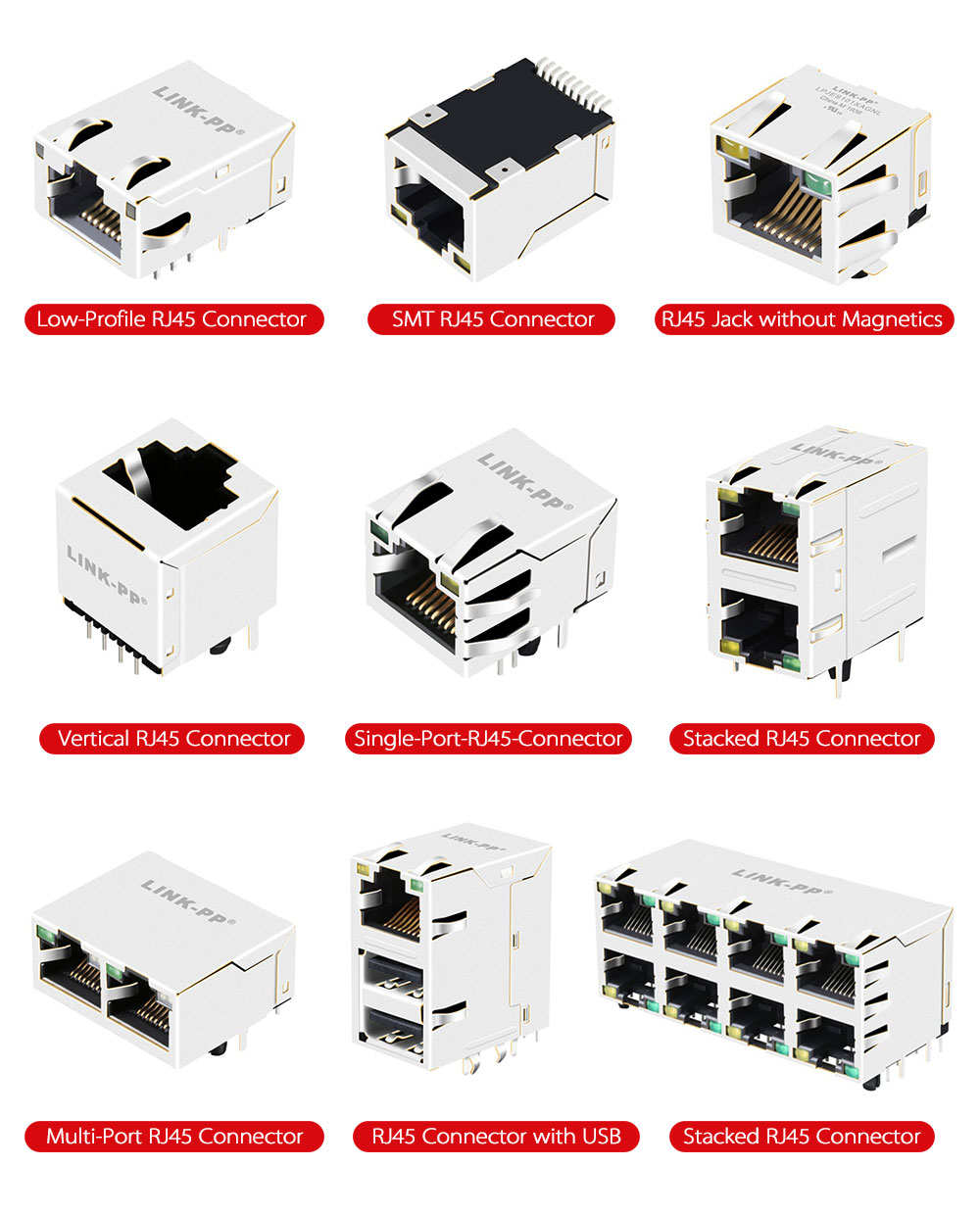

Product detail view 4 Product series overview Production facility detail
Automated assembly line Advanced testing machinery Laboratory testing environment
Quality inspection process Finished products warehouse
Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

We are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading provider of Ethernet RJ45 connectors and LAN transformers.
Office and production building Manufacturing workshop overview
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee needs to be covered.
What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
What is your advantage?
Over 19 years of production experience and long-term partnerships with leading global enterprises.
