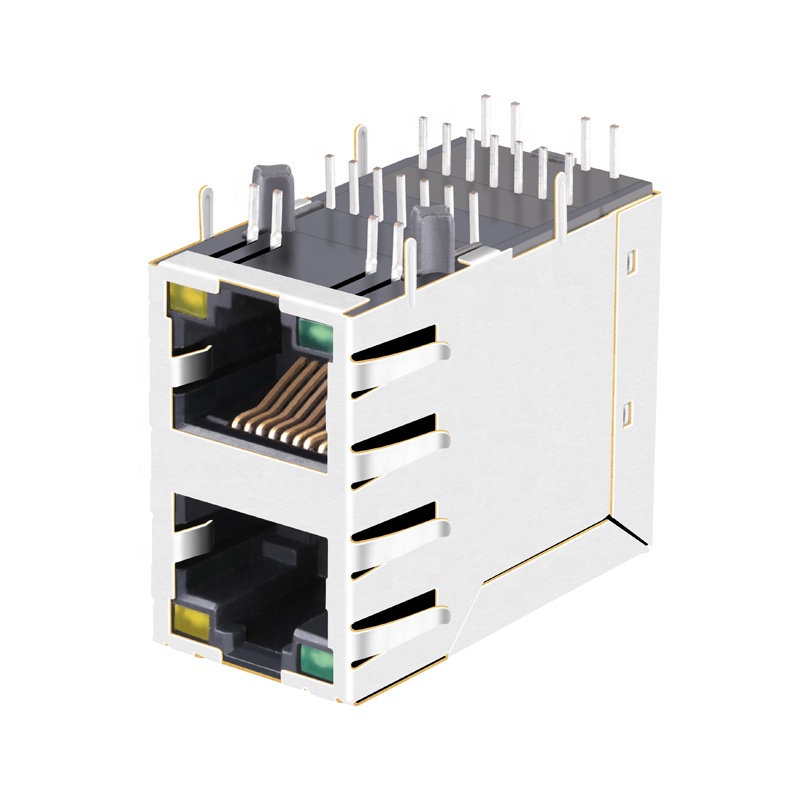

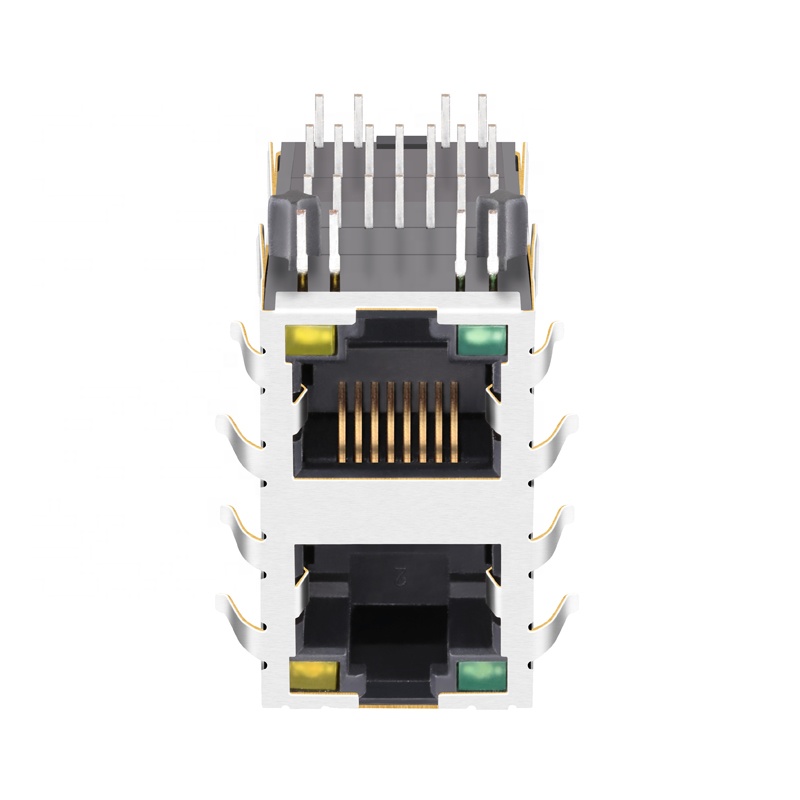

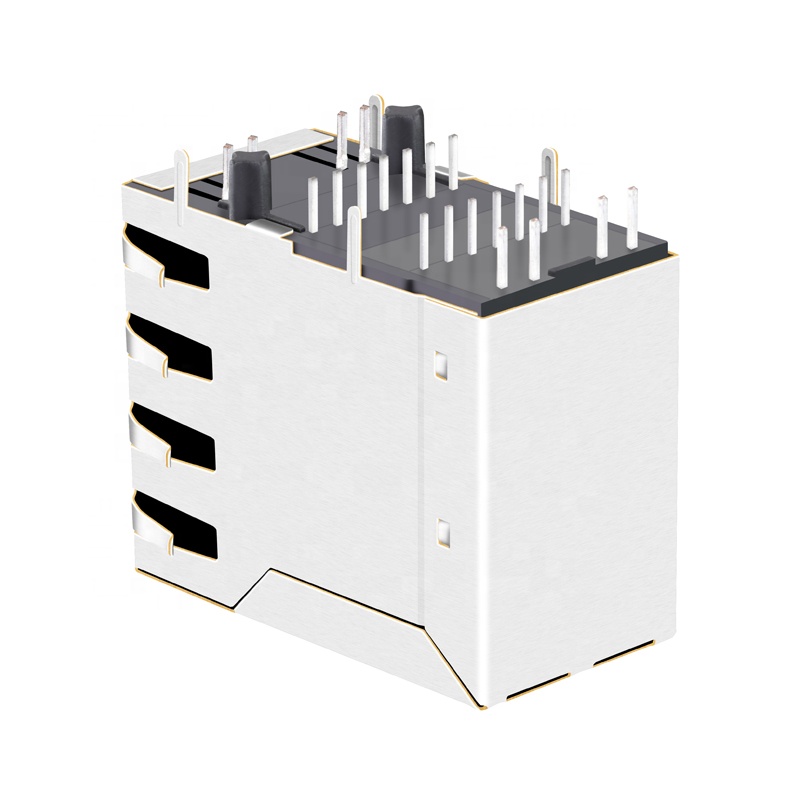

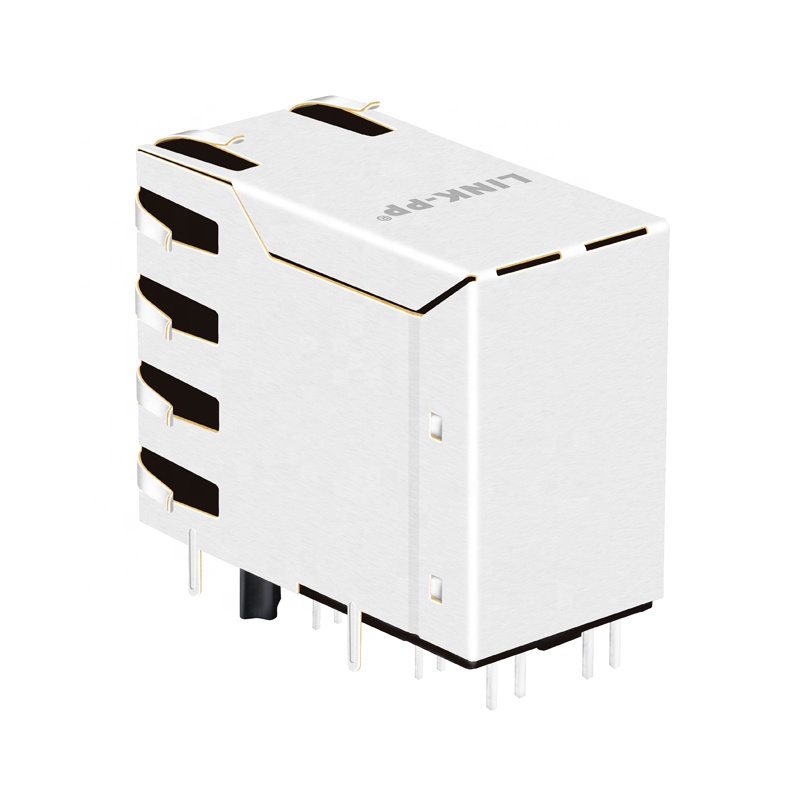

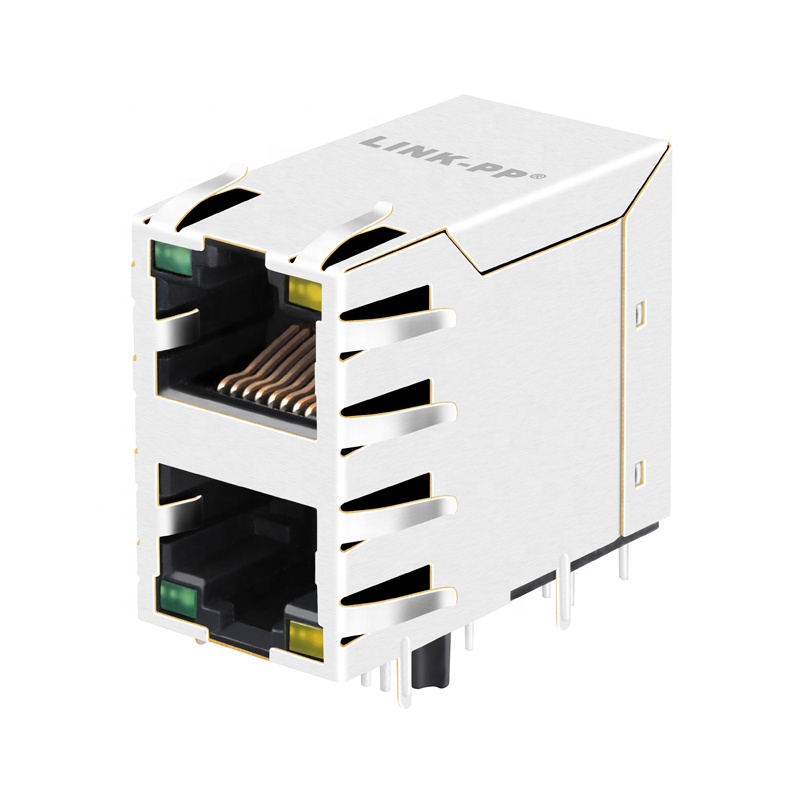

High Speed RJ45 Magnetic Connectors XRJD-S-21-8-8-4-9B1 With/Without PoE
High Speed RJ45 Magnetic Connectors XRJD-S-21-8-8-4-9B1 With/Without PoE
High Speed RJ45 Magnetic Connectors XRJD-S-21-8-8-4-9B1 With/Without PoE
High Speed RJ45 Magnetic Connectors XRJD-S-21-8-8-4-9B1 With/Without PoE
High Speed RJ45 Magnetic Connectors XRJD-S-21-8-8-4-9B1 With/Without PoE
1 / 5
High Speed RJ45 Magnetic Connectors XRJD-S-21-8-8-4-9B1 With/Without PoE
High Speed RJ45 Magnetic Connectors XRJD-S-21-8-8-4-9B1 With/Without PoE
High Speed RJ45 Magnetic Connectors XRJD-S-21-8-8-4-9B1 With/Without PoE
High Speed RJ45 Magnetic Connectors XRJD-S-21-8-8-4-9B1 With/Without PoE
High Speed RJ45 Magnetic Connectors XRJD-S-21-8-8-4-9B1 With/Without PoE

High Speed RJ45 Magnetic Connectors XRJD-S-21-8-8-4-9B1 With/Without PoE

Send Inquiry

Product Description

RJ45 Connectors Overview
High Speed RJ45 Magnetic Connectors XRJD-S-21-8-8-4-9B1 With/Without PoE
Products Description
Item RJ45 Female Connector
Compatible With XRJD-S-21-8-8-4-9B1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
XRJD-S-21-8-8-4-9B1 Product Details
☞ More Product Options Available ☞
Product Range Categories
Technical Drawing 1
Technical Drawing 2
Technical Specifications 1
Technical Specifications 2
Production Facility
Manufacturing Process
Company Profile
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Warehouse and Logistics
Quality Control Department
Office and R&D Center
FAQ
? Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
? Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
? What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
? What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
? Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
? What is your advantage?
19 years of production experience and we have been partnering with industry leaders for many years.
