Ethernet Vertical Jack RJ45 Female Socket HFJV1-1G46RL HFJV1-2450-L55RL 1840459-1 1840453-1

Product Description

RJ45 Connector Range
LAN Transformer

Send Inquiry To Get Latest Price List

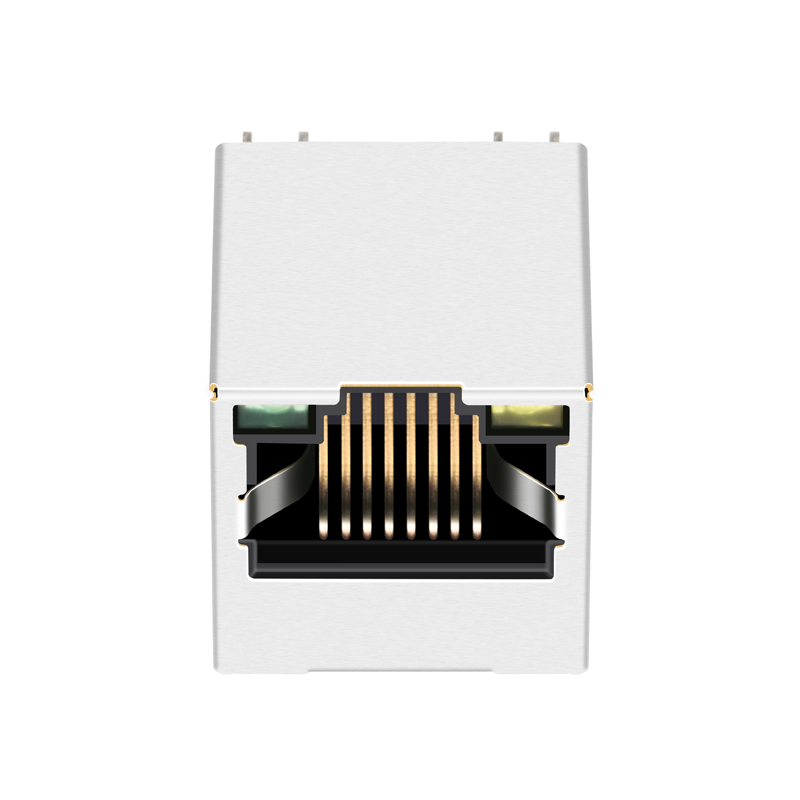

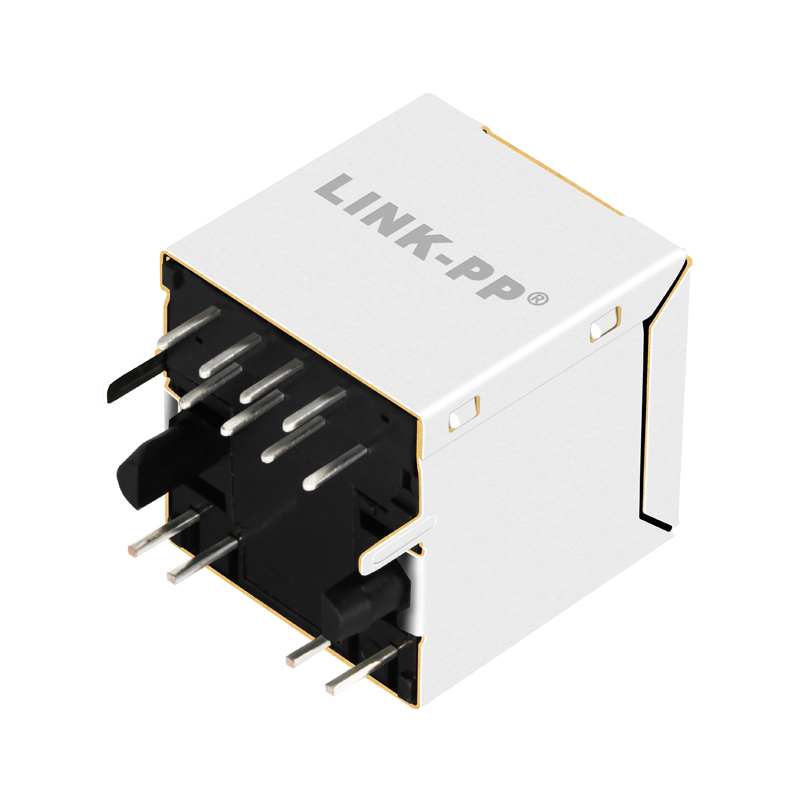

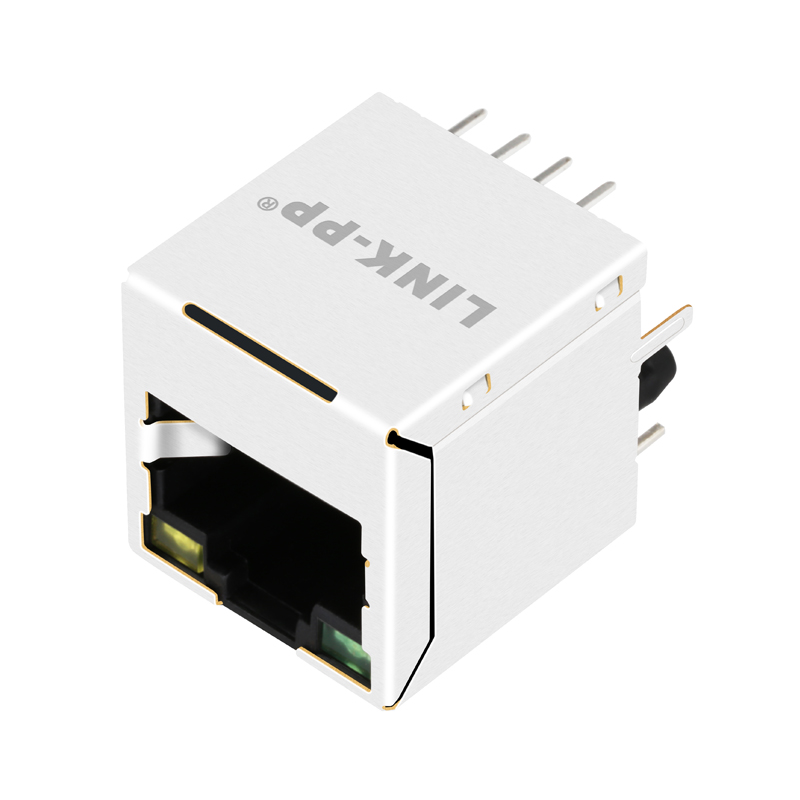

Vertical RJ45 Socket Ethernet Jack Female
Ethernet Vertical Jack RJ45 Female Socket HFJV1-1G46RL HFJV1-2450-L55RL 1840459-1 1840453-1
Products Description
Item RJ45 Female Connector
Bothhand Part Number 1840453-1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up And Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C

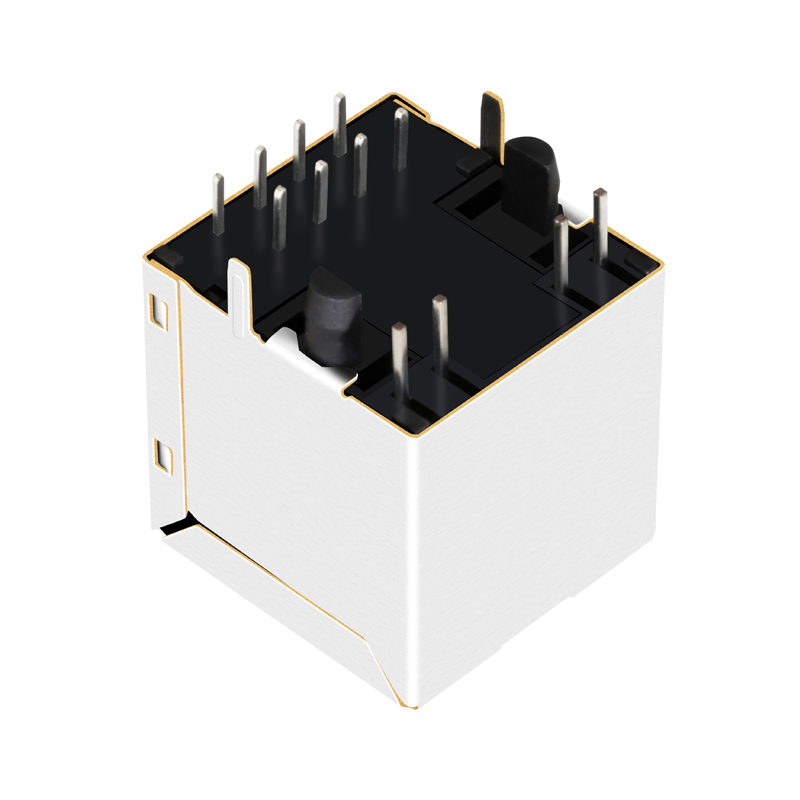

Detail 1 Detail 2 Detail 3 Detail 4 Detail 5 Detail 6 Detail 7
Dimensional Drawing
Why Choose Us
Quality Standard Testing Facility Production Capacity Global Certificates
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions.

Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to be our long-term partner.
Manufacturing Line Quality Inspection R&D Center Warehouse
FAQ

Q1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Q2. Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but you should cover the shipping fee.

Q3. What is your delivery time?

Ready to ship for stock items, and 15-30 days for mass production orders.

Q4. What after-service can you offer?

We provide a one-year guarantee period along with online technical support 24 hours a day.

Q5. Can you accept OEM/ODM orders?

Yes, please send your inquiries to us so we can discuss the details of your specific requirements.

Q6. What is your advantage?

We have over 19 years of manufacturing experience and maintain long-term partnerships with global industry leaders.
