| Part Number | 0855135109 |
| Application-LAN | ETHERNET(NON POE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | WITH LEDS/WITHOUT LEDS |
| Latch | UP/DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH OR WITHOUT |
| Speed | 10/100/1000 BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |

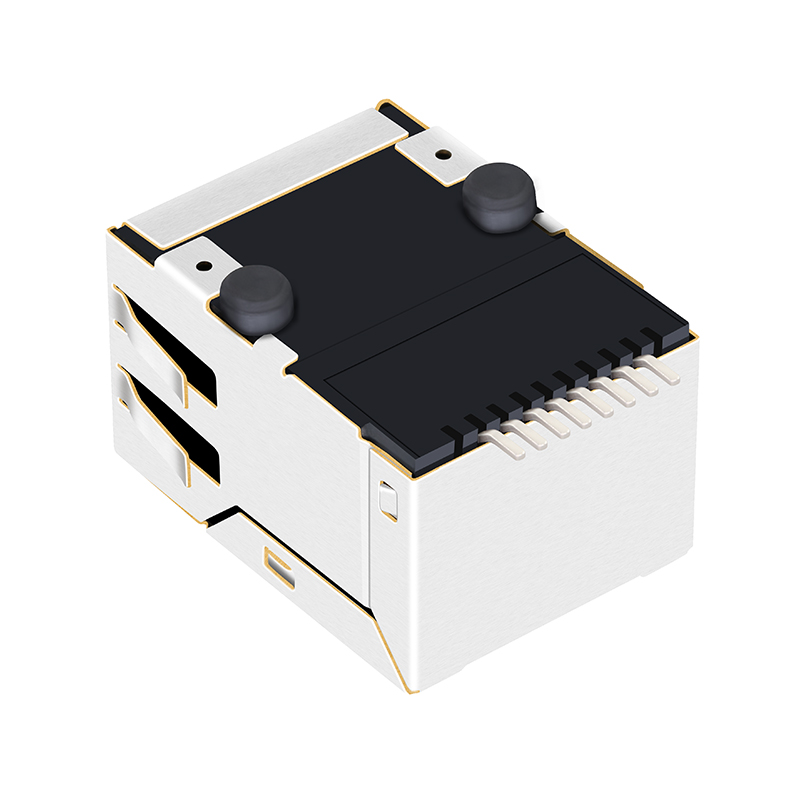

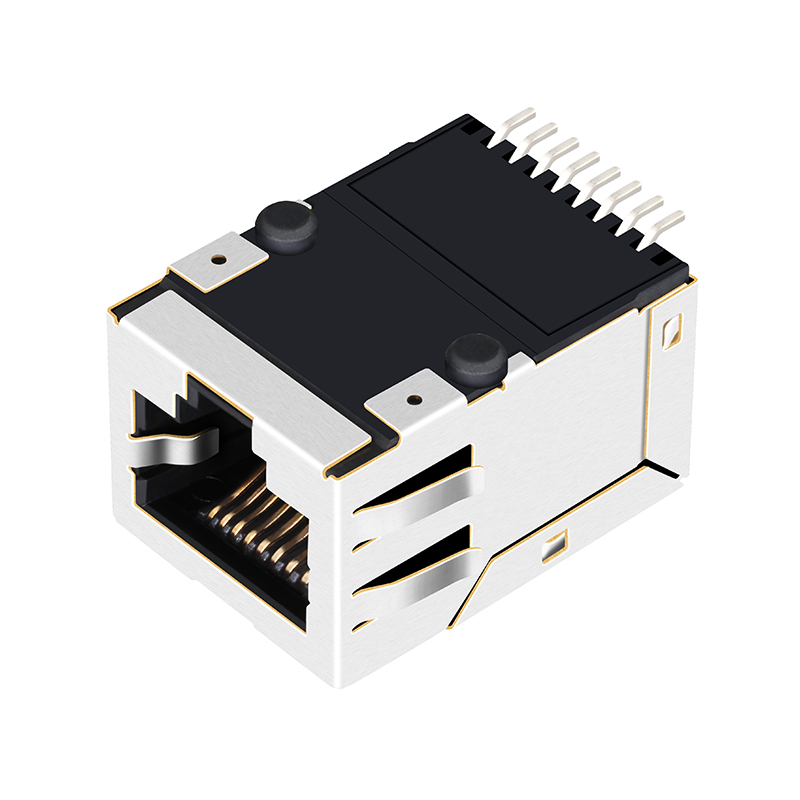

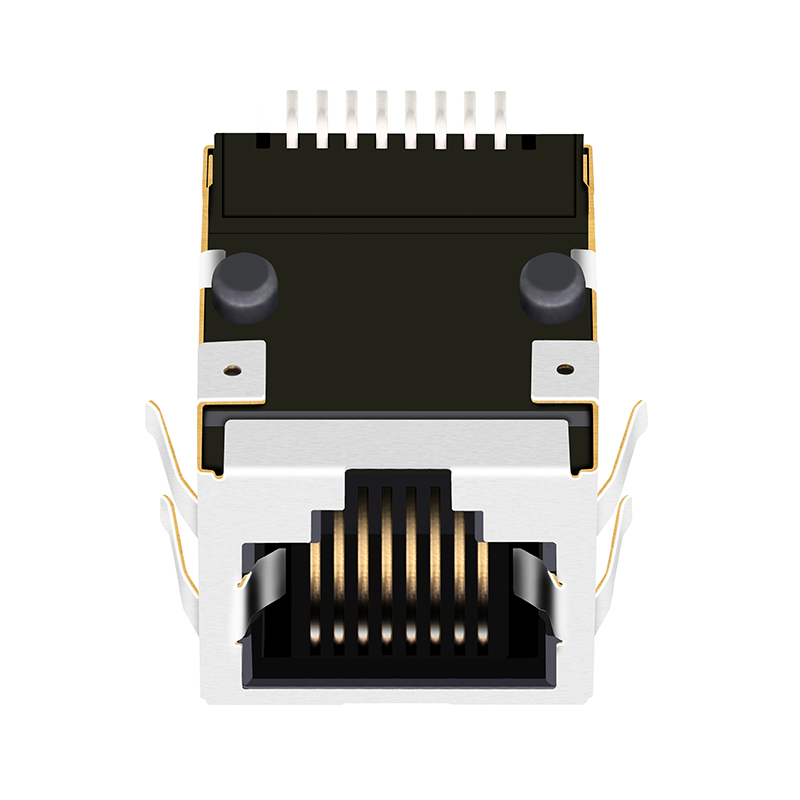

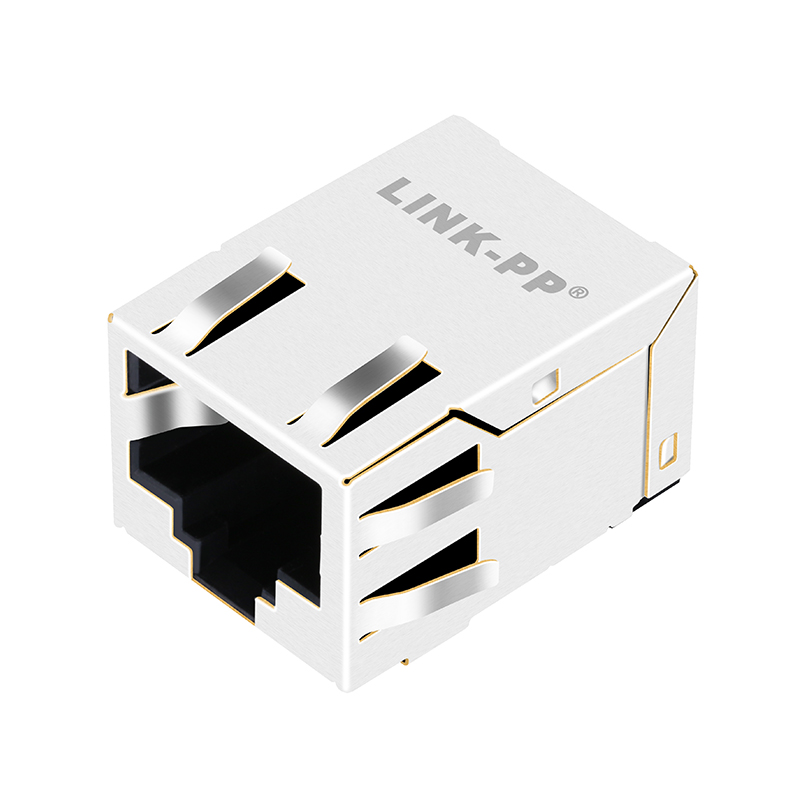

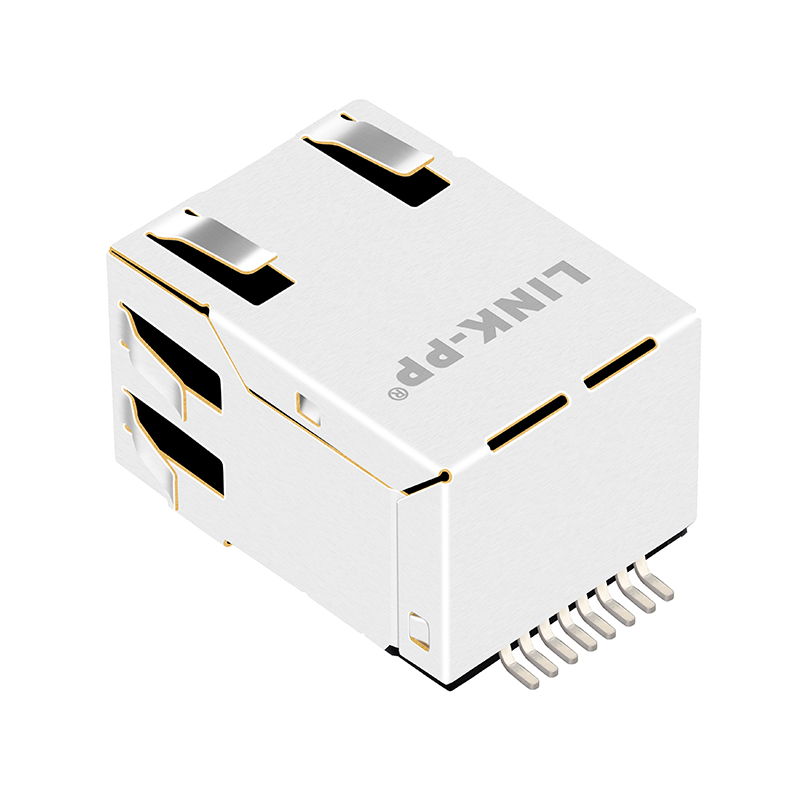

This low profile RJ45 connector is designed for standard Ethernet (Non-PoE) applications, providing reliable LAN connectivity.
Yes, it is RoHS compliant (RoHS-5) with lead-in-solder exemption, meeting strict environmental safety standards.
The contact mating area features high-quality gold plating, available in thicknesses of 6u", 15u", or 30u" depending on requirements.
The connector operates reliably across standard temperature ranges from 0°C to 70°C, as well as industrial ranges from -40°C to 85°C.
Yes, it features SMT (Surface Mount Technology) styling for convenient and stable top-entry PCB mounting, compatible with automated placement lines.
Yes, free samples are available upon request to help verify design compatibility and performance before placing bulk orders.
