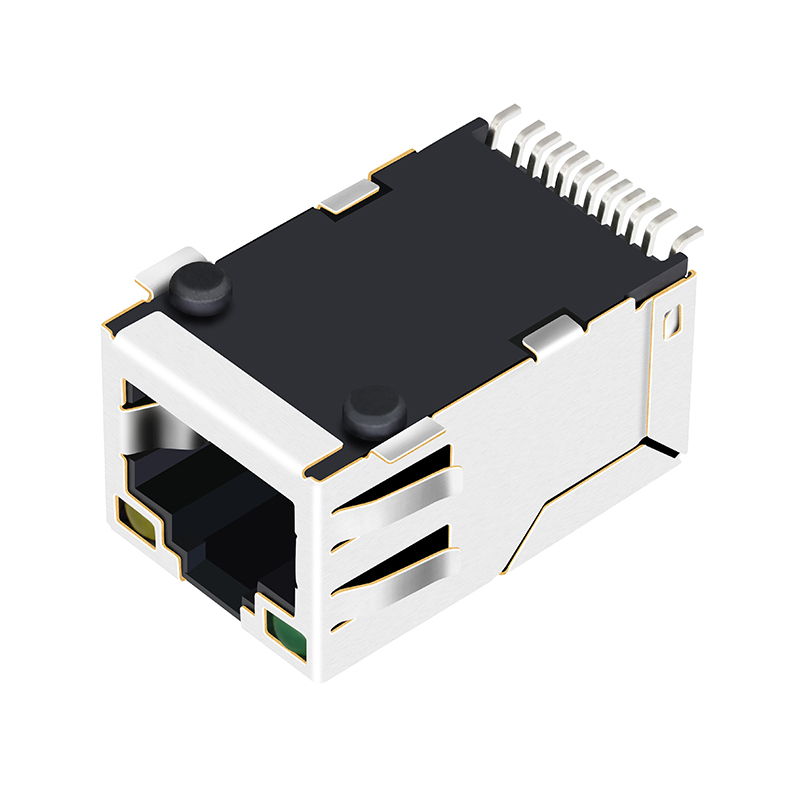

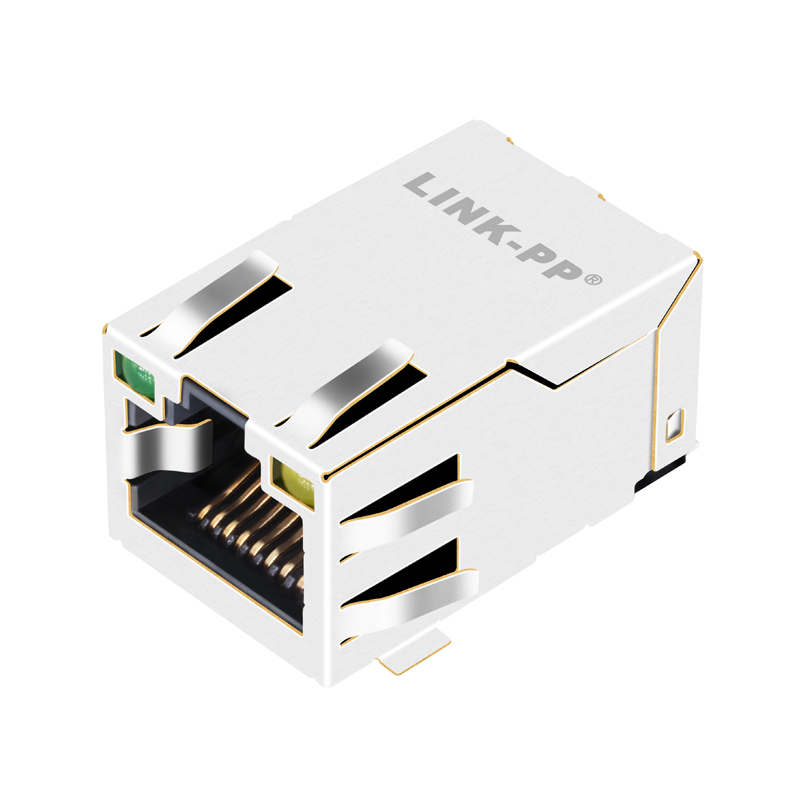

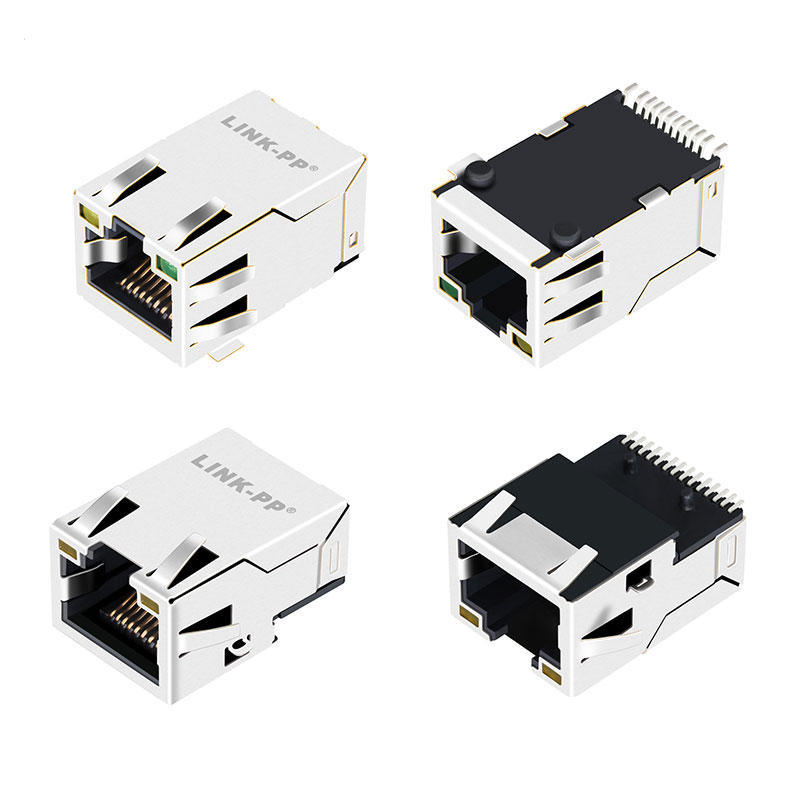

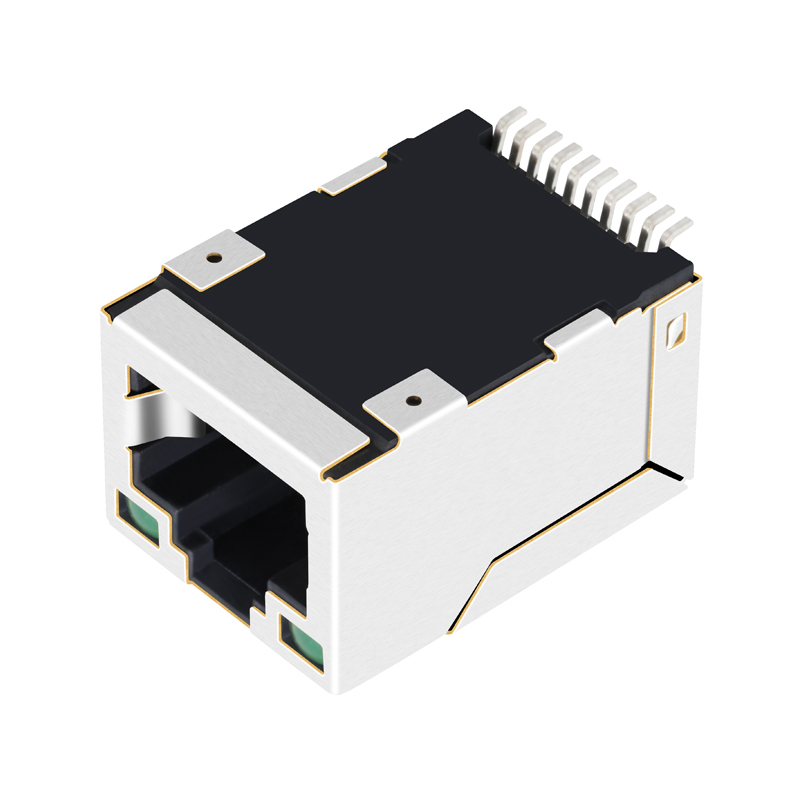

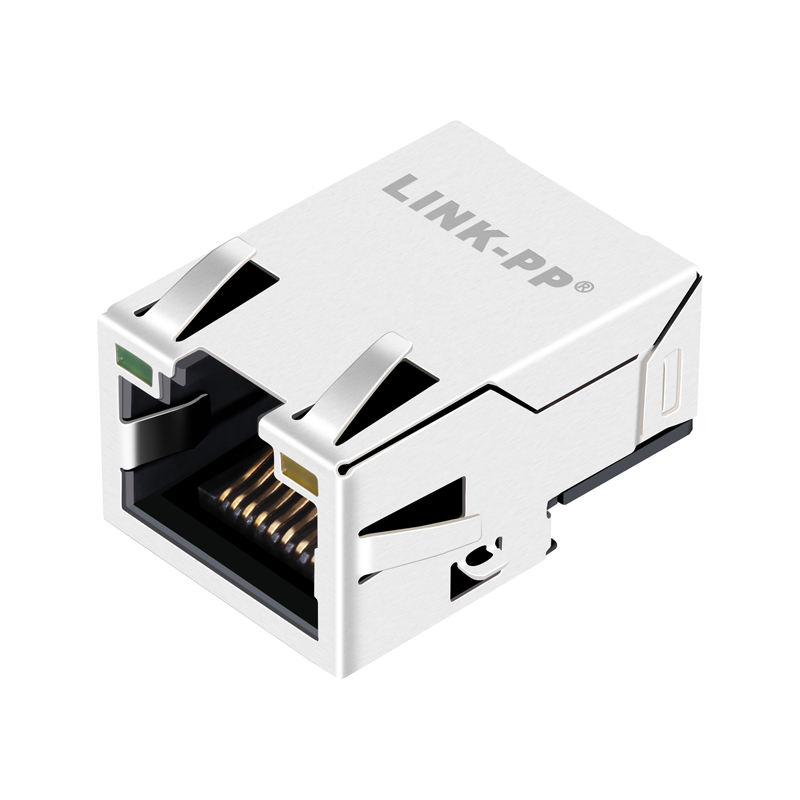

High Quality 100/1000 Base-T RJ45 Modular Jack Connectors POE Non POE 10p8c 8p8c SMT SMD Ethernet Connector Modules for Global B2B Buyers

Product Description

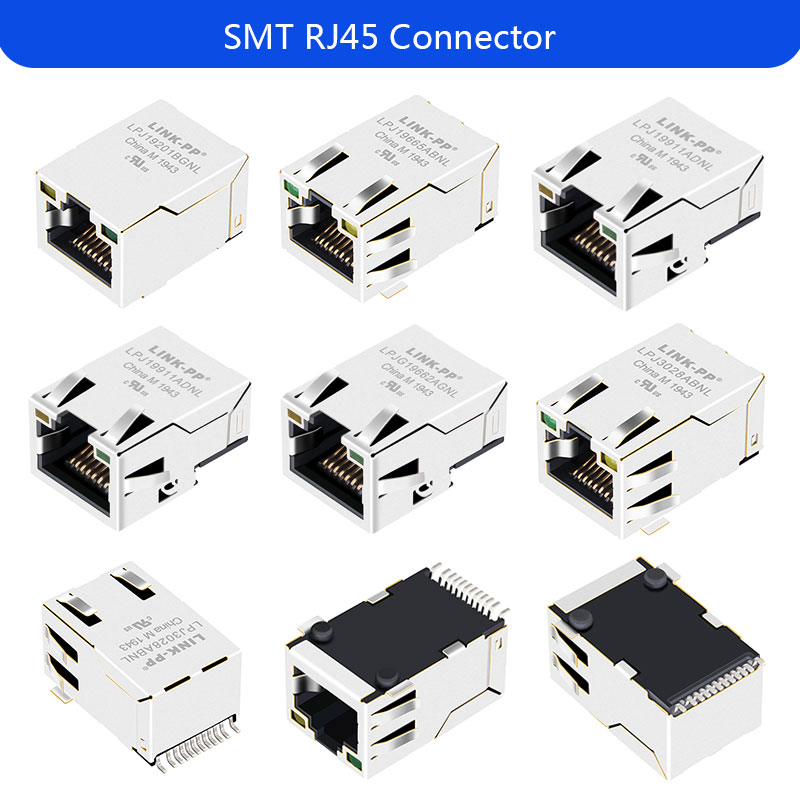

RJ45 Connector with integrated transformer

RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores

Specification

item	value
Model Number	SMT RJ45 Connector
Part Status	Active
Connector Type	RJ45
Applications-Lan	Ethernet(PoE/Non_PoE)
Speed	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack	4/6/8/12
Shielding	Shielded, Emi Finger
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Down/Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C/-40°C ~ +85°C

Packing & Delivery

The packaging specifications for shipment are detailed below:

Package

Tray

Carton Size

34.5*34.5*27cm

G.W./Carton

6.9kg

Qty/Carton

550pcs

SPQ

110pcs

N.W./Pcs

0.013kg

Product Gallery

Frequently Asked Questions

What are the key characteristics of this RJ45 Connector?

This RJ45 Connector features an integrated transformer / common mode choke, supporting Power over Ethernet (PoE) up to 50 Watt and speeds up to 10 Gbit/s. It is available in SMT, THT, and THT with USB. The HPLE series products offer improved Common Mode Rejection due to additional NiZn cores.

Which standards is this connector compliant with?

It is fully compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt standards.

How is product quality guaranteed?

Quality is strictly maintained through a consistent two-step validation process: always producing a pre-production sample before mass production, and performing a final inspection of all goods before shipment.

What types of components can be purchased?

Available products include RJ45 Magnetic components, Lan transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.

What are the specifications of the packaging?

Products are shipped in Trays, packed inside a carton sized 34.5*34.5*27cm. The Gross Weight (G.W.) per carton is 6.9kg, containing a total quantity of 550pcs (with an SPQ of 110pcs). The Net Weight (N.W.) is 0.013kg per piece.

What delivery terms, currencies, and payment options are accepted?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
Accepted Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF.
Accepted Payment Types: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow.
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
