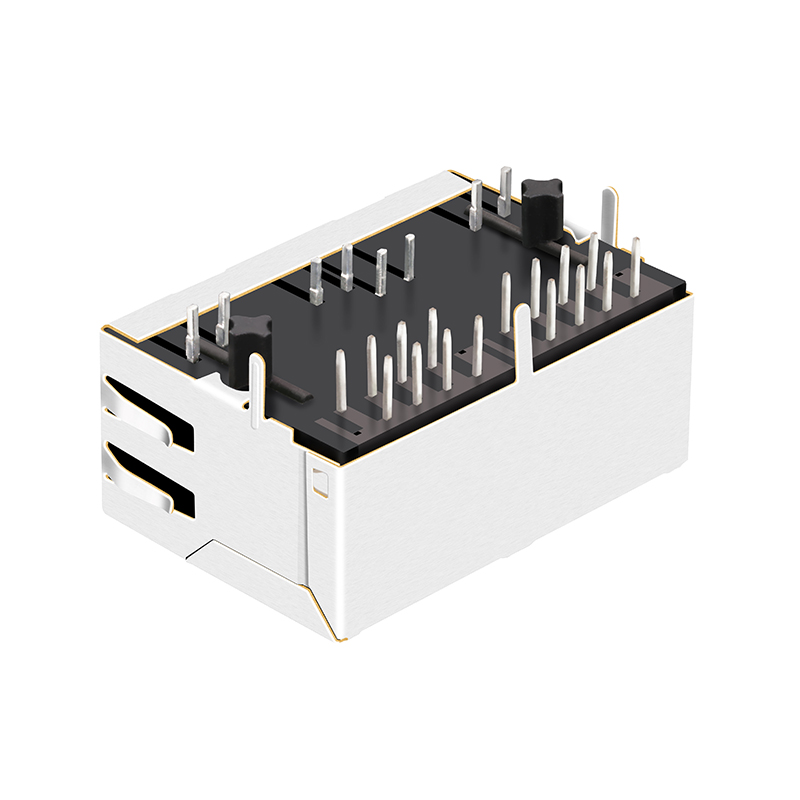

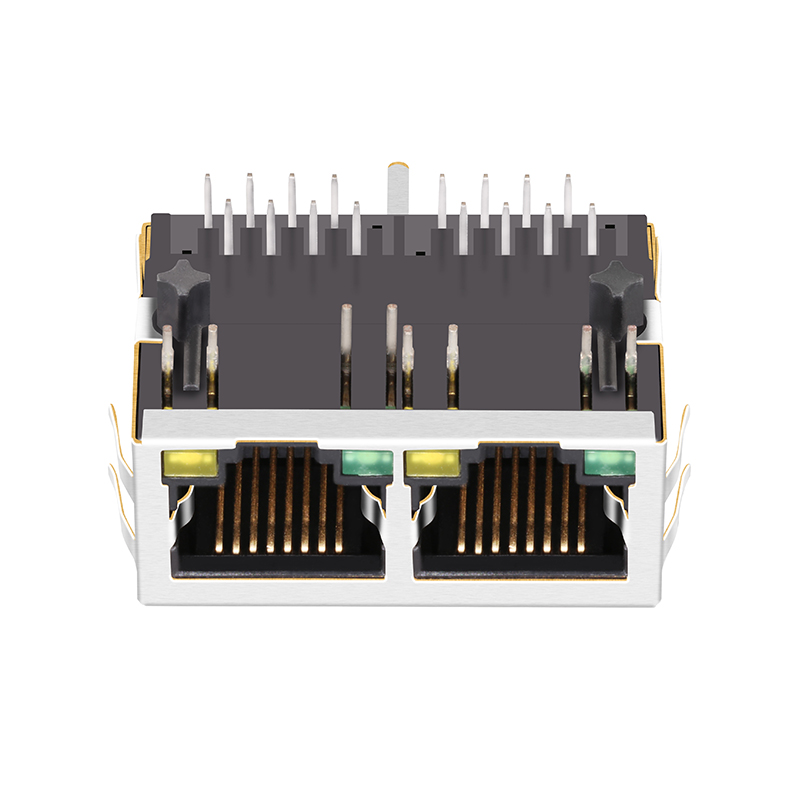

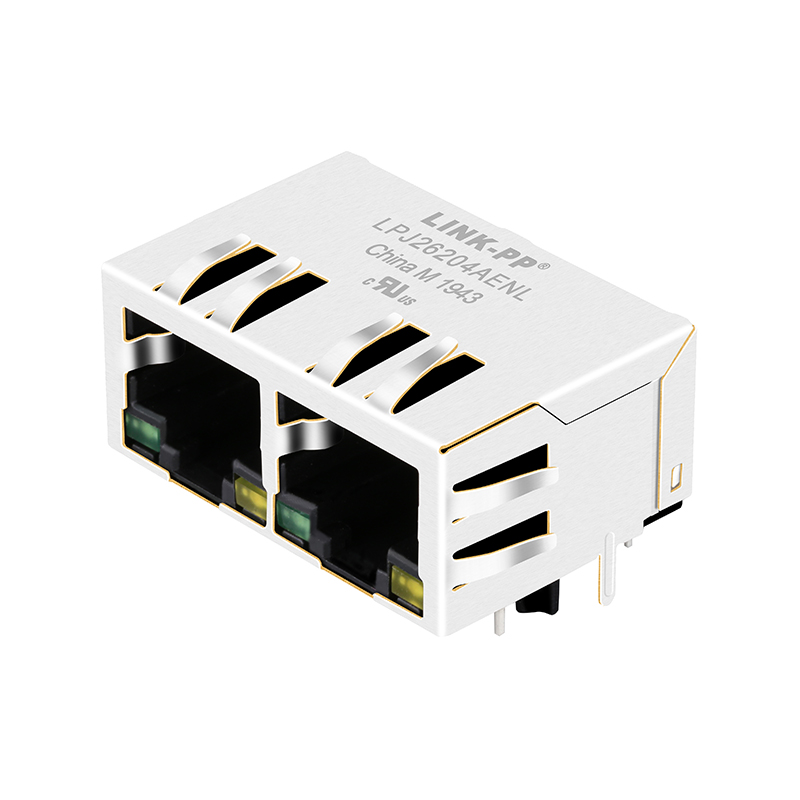

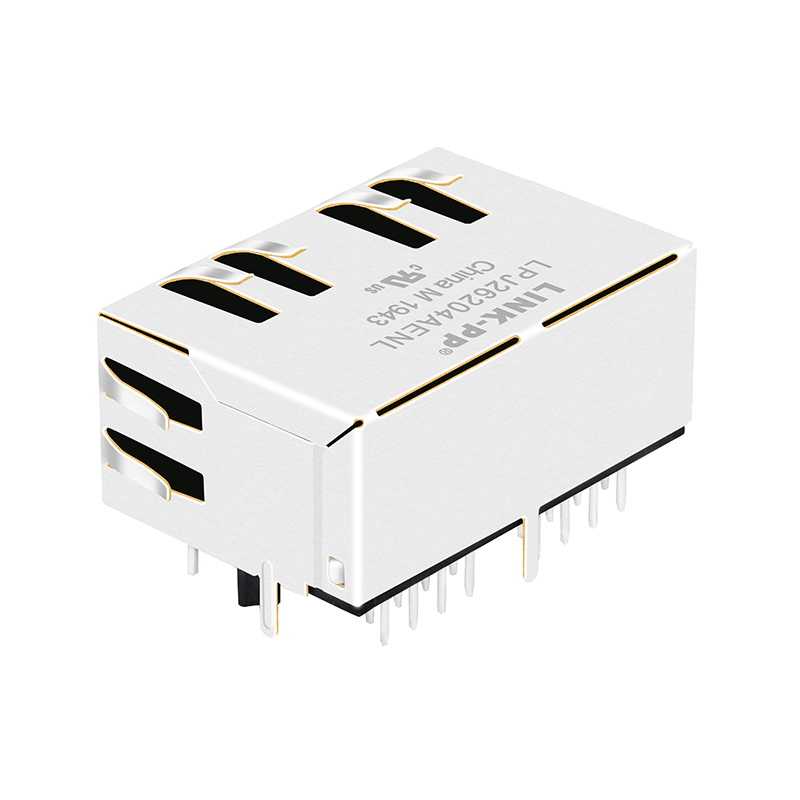

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

Product Description

Product Description
Product Description Image 1
Product Description Image 2

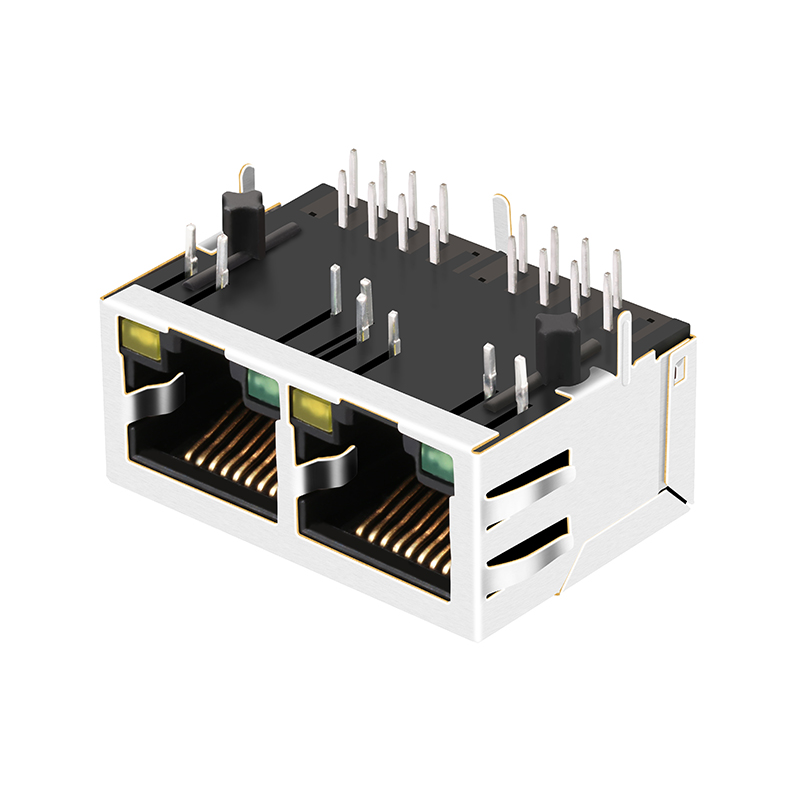

Product Description Image 3
Specification
Item Value
Model NumberLPJ26204AENL
Part StatusActive
Connector TypeRJ45
Applications-Lan10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen / Yellow
Number of Cores per Jack4
ShieldingShielded, EMI Finger
Number of Ports1x2 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C
Packing & Delivery
The Package Details

Package: Tray
Carton size: 37*30*30cm
G.W./carton: 9kg
Qty/carton: 600pcs
SPQ: 30pcs
N.W/pcs: 0.015kg

Packing details

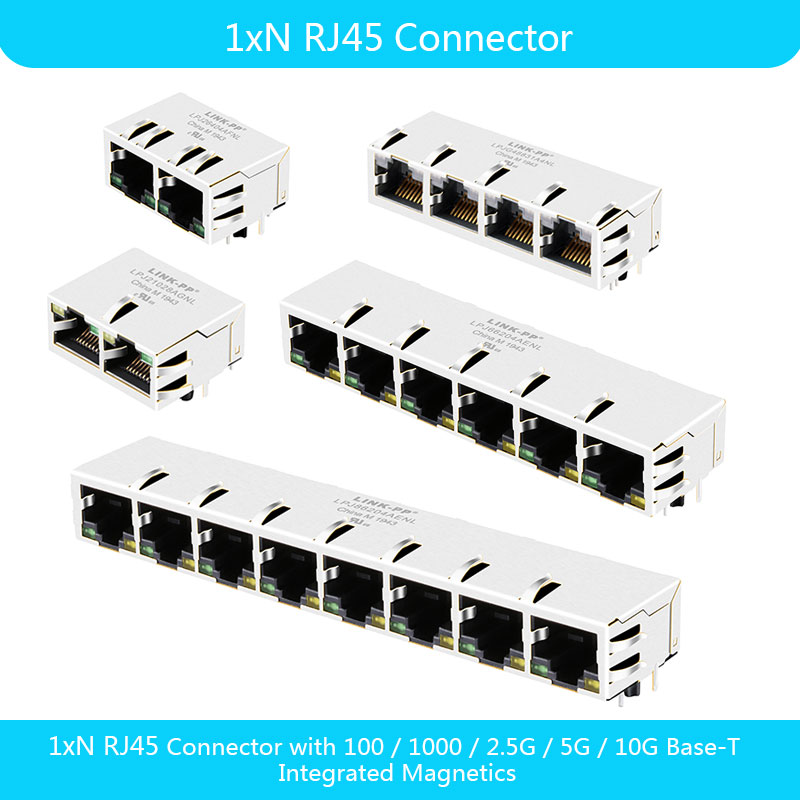

RJ45 Connector Application

10 / 100 / 1000 / 2.5G / 5G / 10G Base-T 1xN Port RJ45 Connector

Applications:

  • Suitable for industrial temperatures from –40 °C up to +85 °C
  • Compatible to Industrial Ethernet systems like EtherCAT or Profinet
  • Compliant with most IC’s for Ethernet applications such as Microchip, Broadcom, Marvell
  • Perfect for Hubs, Routers, Switches, IP cameras, and IoT applications
Facility & Quality Profile
Production Facility Show 1
Production Facility Show 2
Production Facility Show 3
Production Facility Show 4
Production Facility Show 5
Production Facility Show 6
Production Facility Show 7
Frequently Asked Questions
QWho are we?
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL, equipped with advanced manufacturing facilities and test equipment. Established in 1997, we support our clients with extensive monthly production capacity, short delivery times, and complete professional solutions for magnetic components with strong technical support. Our products are widely used in networking and communication equipment like hubs, PC cards, switches, routers, PC mainboards, SDH, PDH, IP phones, and xDSL modems.
QHow can we guarantee quality?
We guarantee quality through a strict process of producing a pre-production sample before mass production, followed by a comprehensive final inspection before shipment.
QWhat can you buy from us?
We offer a wide selection of RJ45 Magnetic Connectors, LAN Transformers, Modular Jacks, and RJ11 Connectors.
QWhy should you buy from us instead of other suppliers?
1. Specialized manufacturer of RJ45 connectors and LAN transformers with decades of industry experience.
2. Certified by SGS, ISO9001:2008, UL, REACH, and CE.
3. Massive production capacity with a large dedicated workforce to ensure quick order turnaround.
4. Trusted supplier to leading global technology enterprises.
QWhat services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
Accepted Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF.
Accepted Payment Types: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow.
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
QWhat are the industrial application advantages of these RJ45 connectors?
Our RJ45 connectors are built to withstand harsh industrial temperature environments from -40 °C up to +85 °C. They are fully compatible with Industrial Ethernet systems like EtherCAT or Profinet, and compliant with most major Ethernet ICs.
