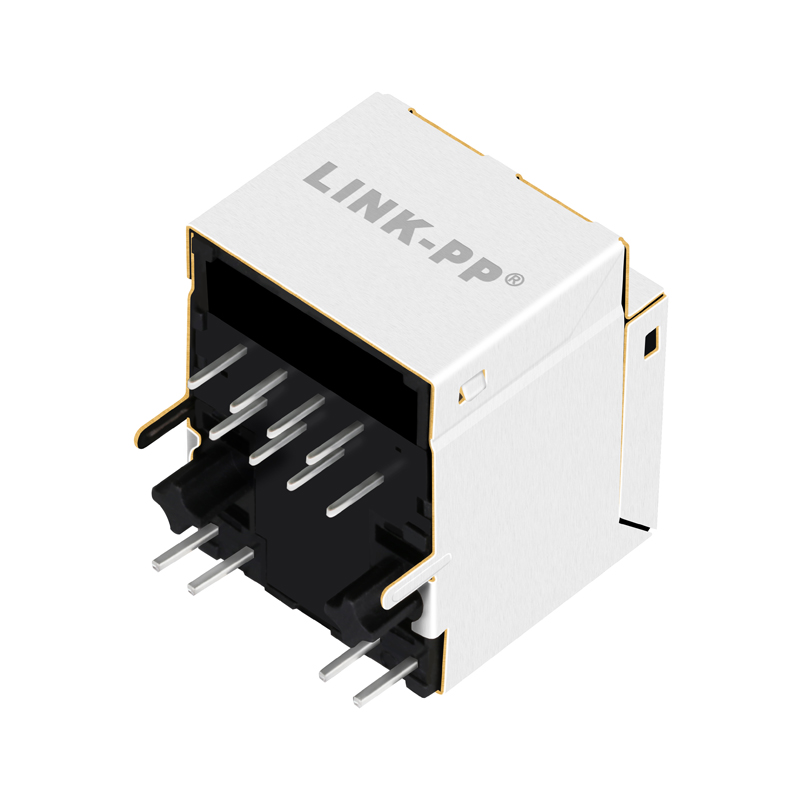

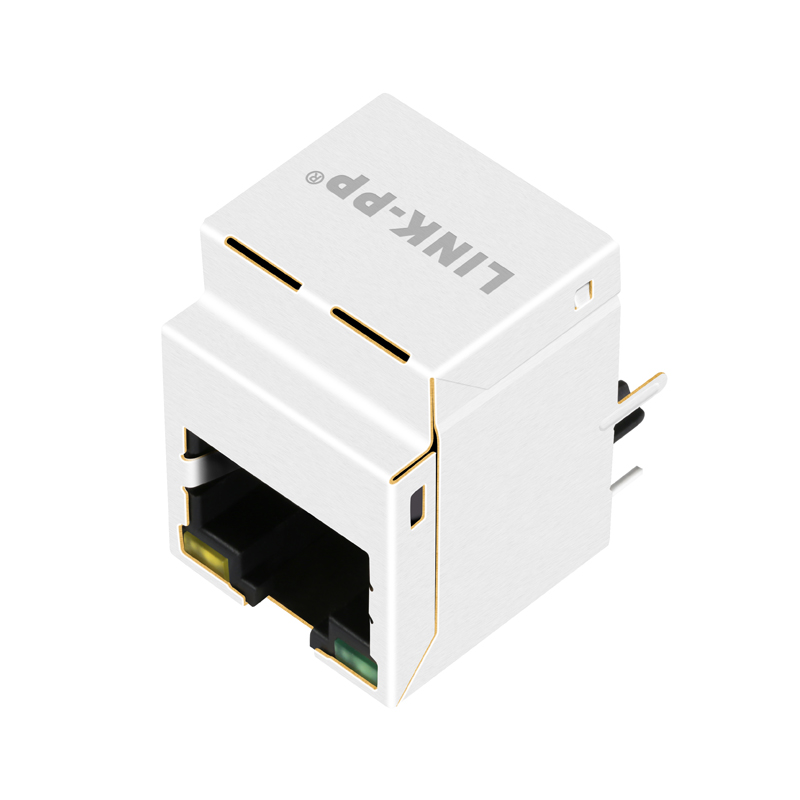

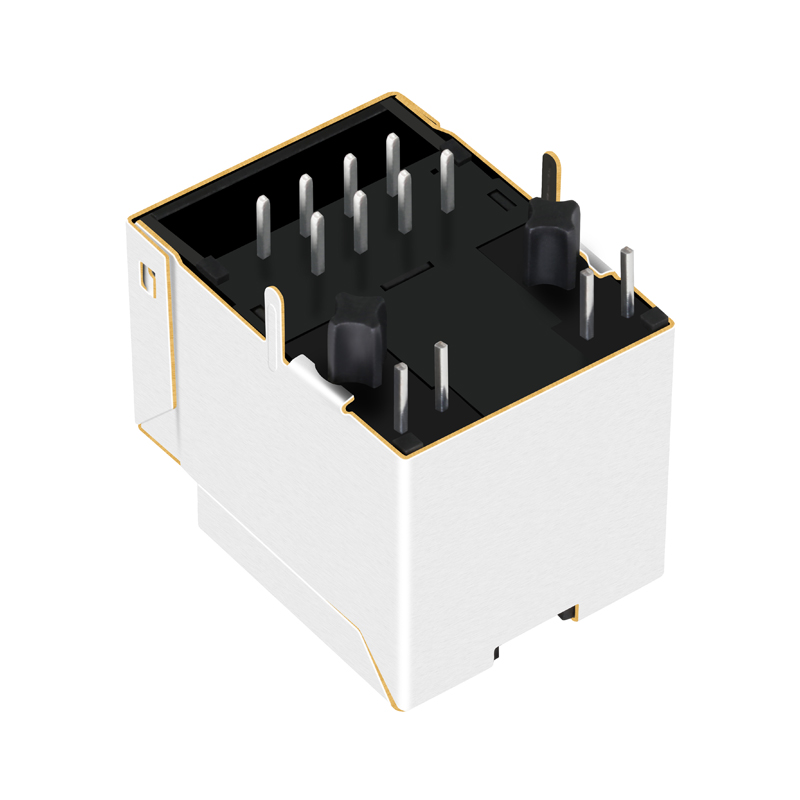

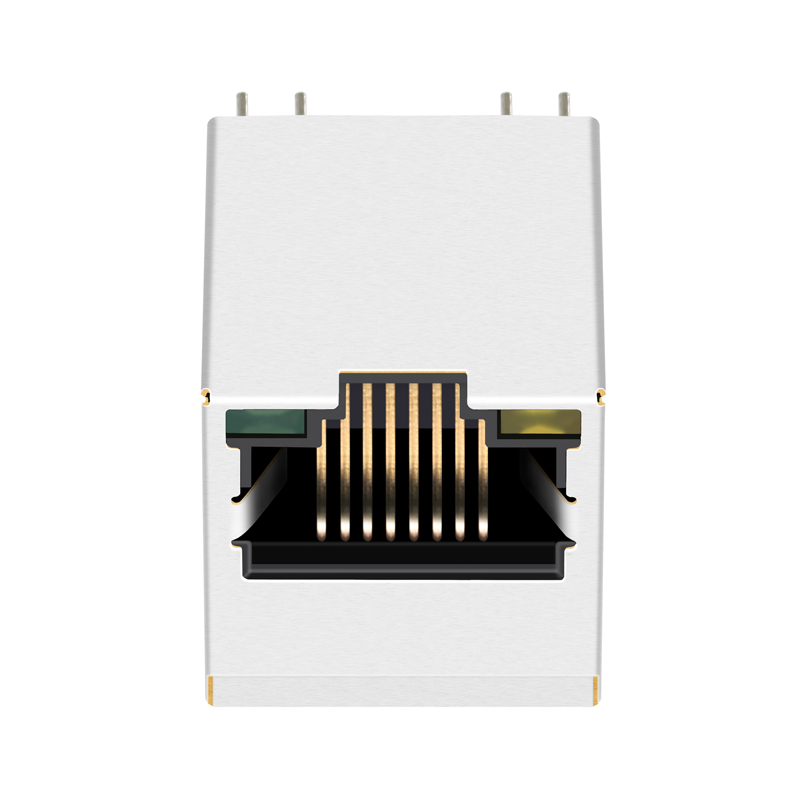

HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
1 / 5
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector

HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector

Send Inquiry

Product Description

RJ45 Connector Overview
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
Products Description
Item RJ45 Female Connector
Bothhand Part Number HR951180AE LMJ2138814S0L1T1C SI-46020-F
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

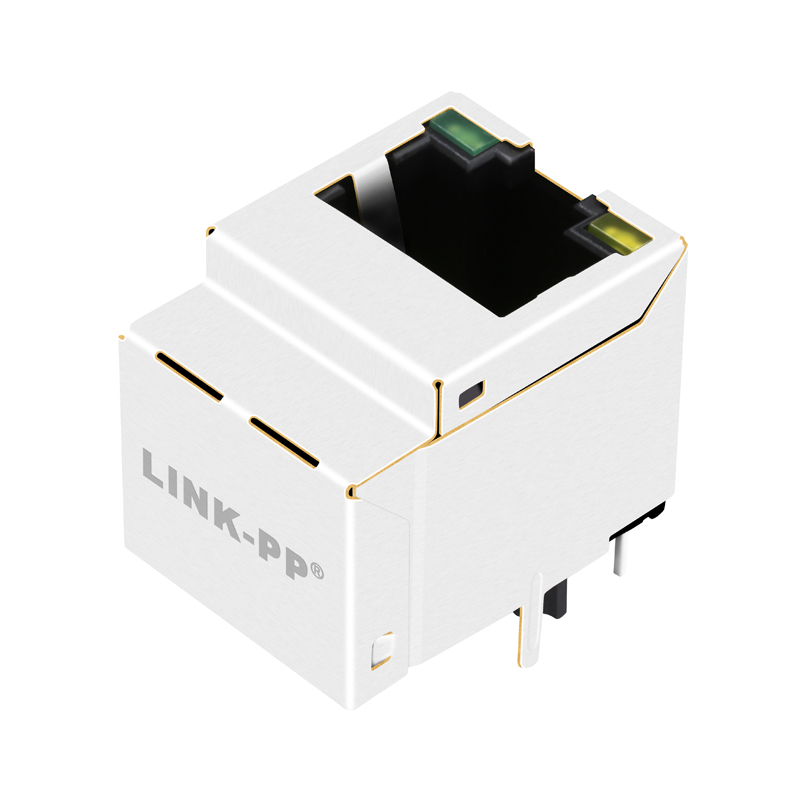

RJ45 Connector Detail View 1
RJ45 Connector Detail View 2
RJ45 Specification Drawing 1
RJ45 Specification Drawing 2
RJ45 Specification Drawing 3
RJ45 Specification Drawing 4
