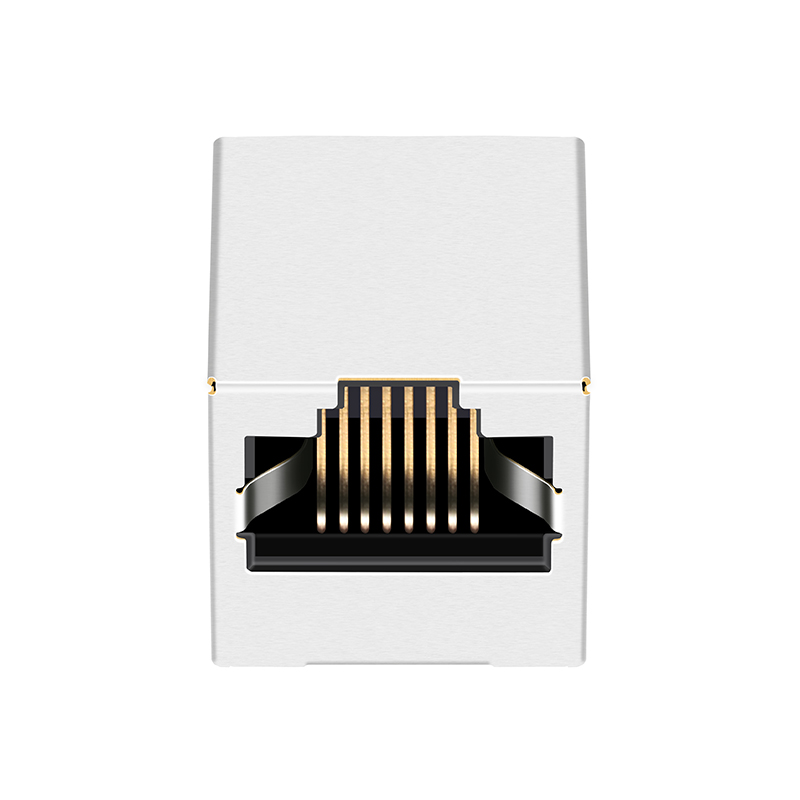

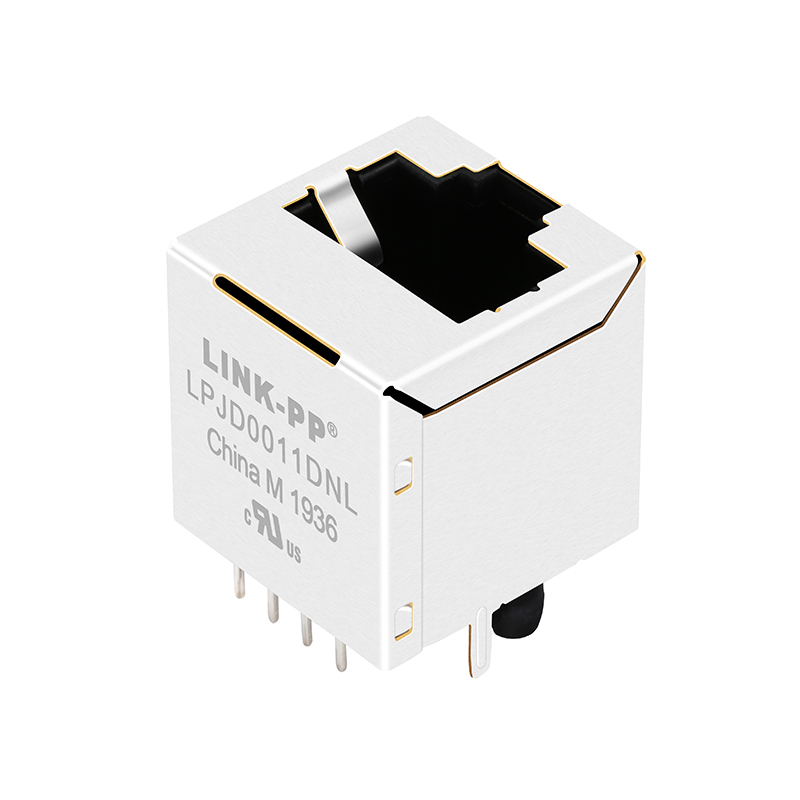

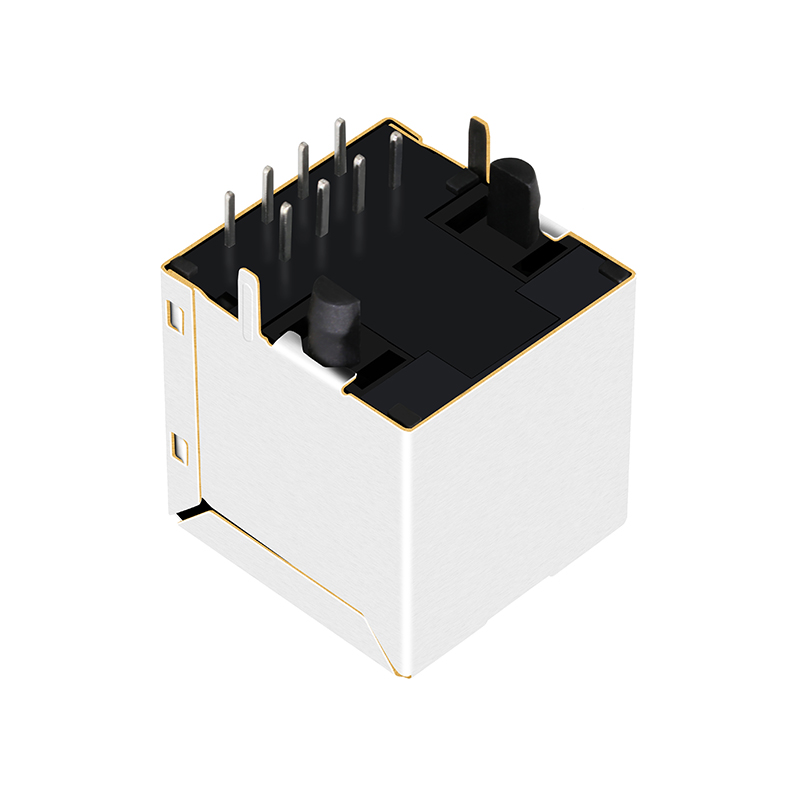

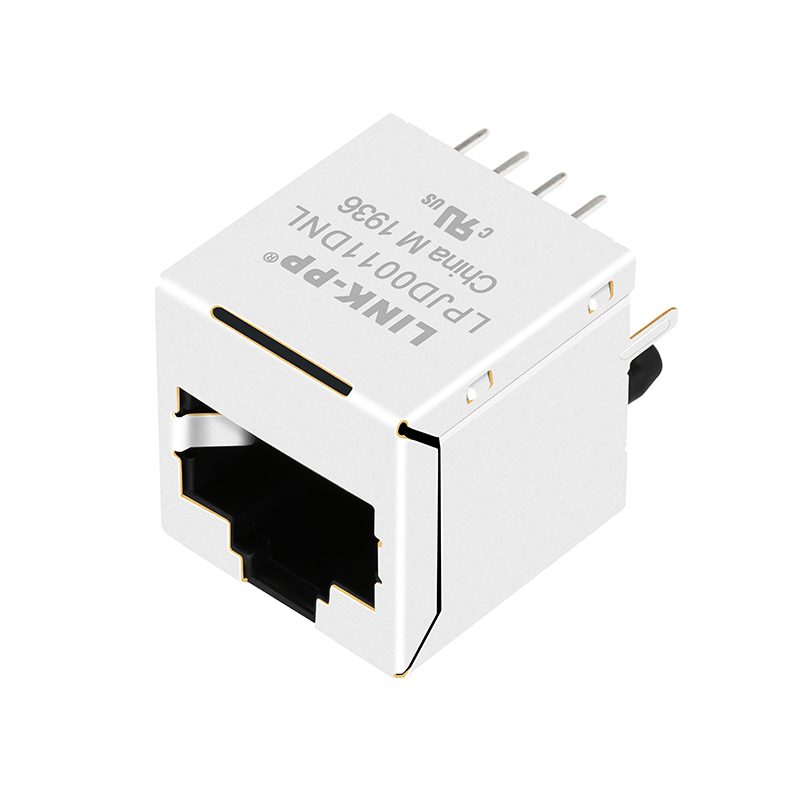

KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds

Product Description

KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
RJ45 Jack Connector Options
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD0011DNL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Detail Structure
More Product Options Below
Product Categories Overview
Technical Specifications Drawing
Factory Testing Facility
Advanced Assembly Equipment
Quality Control Lab
Quality Standard Compliance
Manufacturing Execution System
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, we supply more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Production Process
Modern Warehouse Logistics
R&D Department
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you should cover the shipping fee.
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production orders.
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can proceed with a detailed discussion regarding your custom needs.
What is your advantage?
With 19 years of production experience, we have partnered with major global industry leaders for many years, assuring reliable and high-quality outputs.
