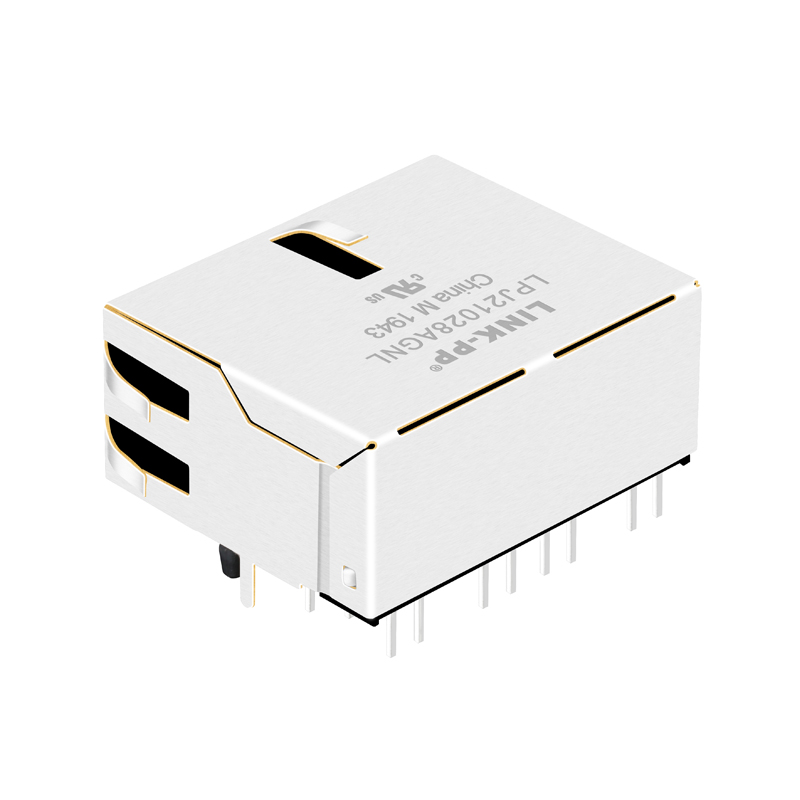

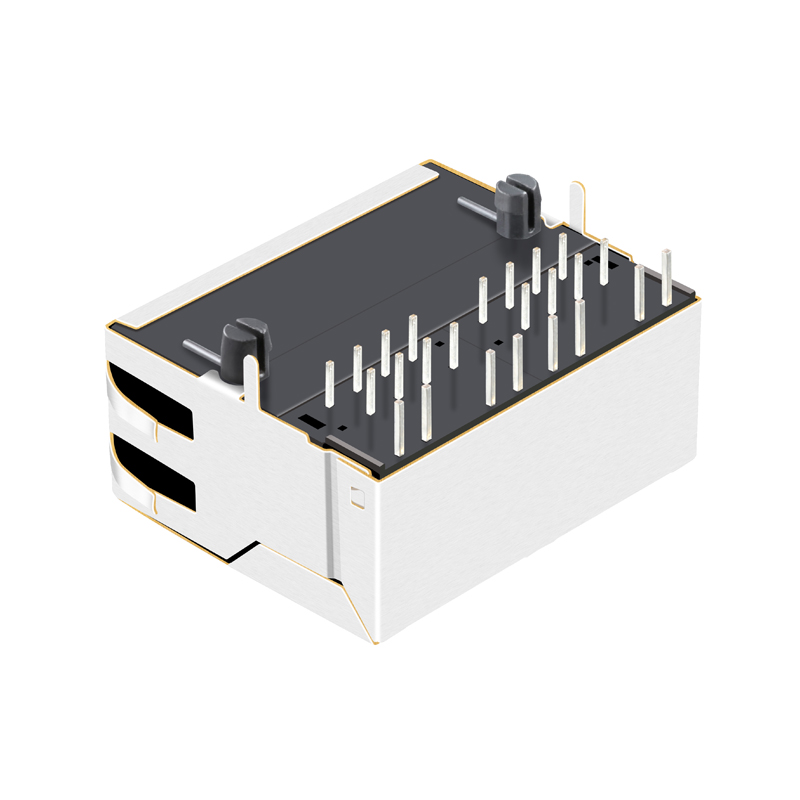

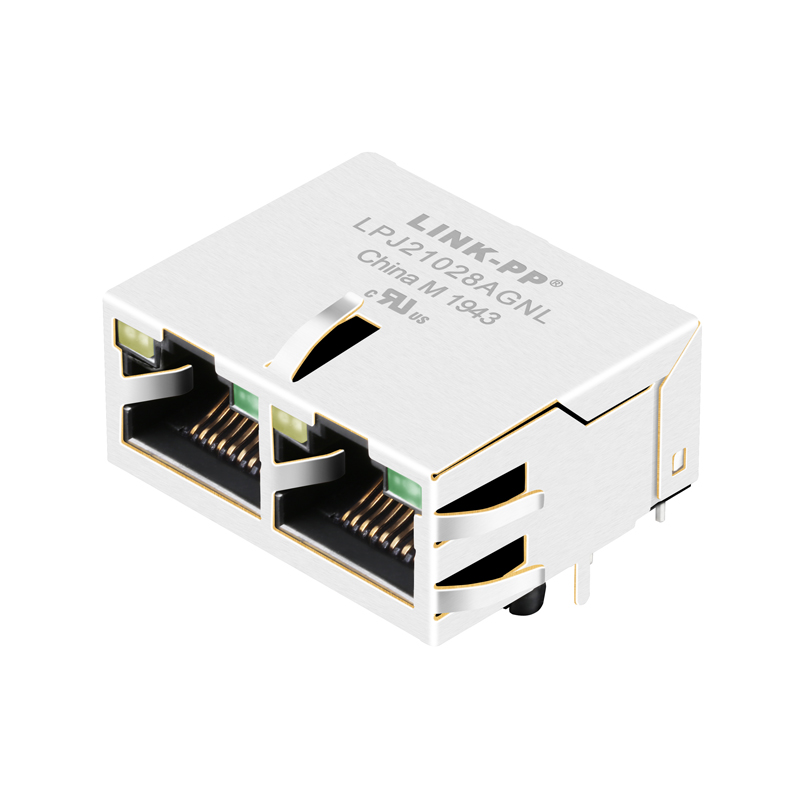

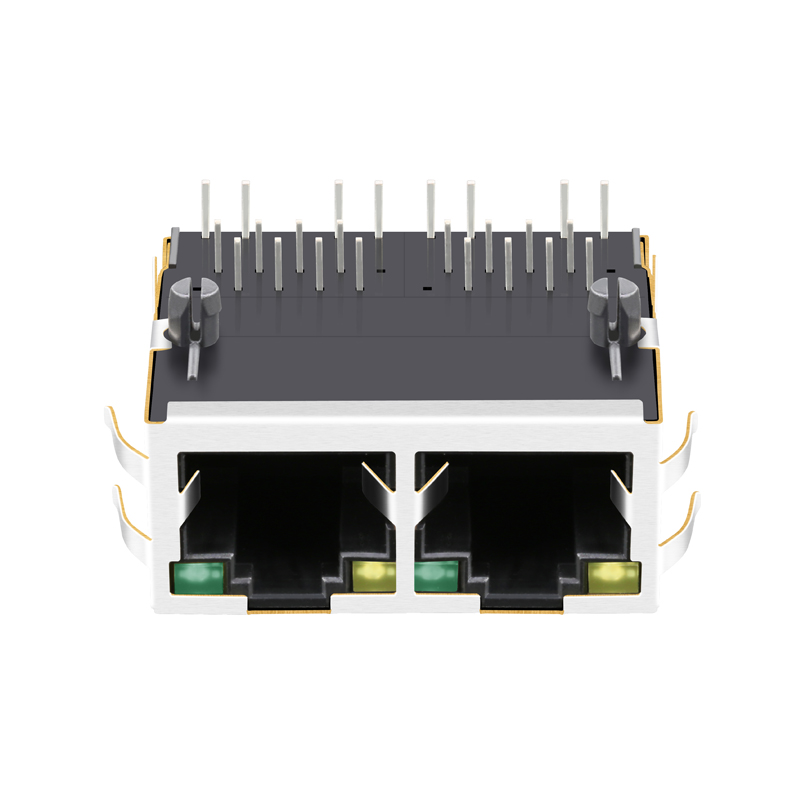

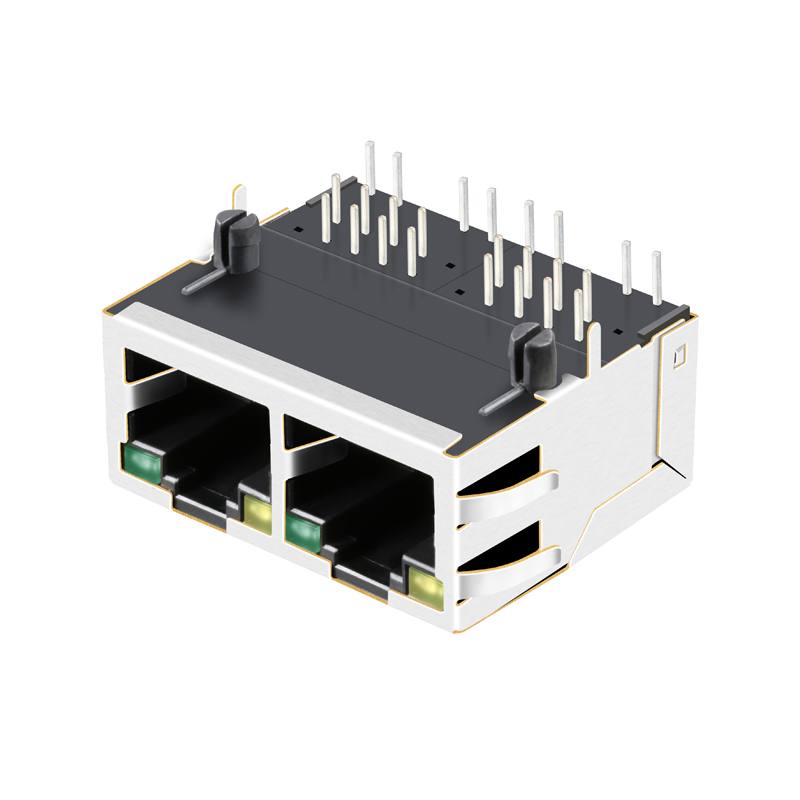

Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
1 / 5
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics

Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics

Send Inquiry

Product Description

Ethernet RJ45 Modular Jack Banner
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Products Description
Item RJ45 Female Connector
Part Number LPJ21028AGNL
Compatible With RT2-14FB4K1A
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x2 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Technical Drawing
ℹ
Explore Our Wide Range of Specialized Connector Solutions Below
Product Categories Grid
Feature Certificate
Quality Management System
Product Compliance
Production Workflow
Advanced Testing Equipment
Testing Lab Details
Warehouse and Stock Capability
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Manufacturing Plant Layout
Automated Production Line
Quality Inspection Center
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping cost is to be covered by the client.
What is your delivery time?
Ready-to-ship items are dispatched directly from stock, and mass production orders take approximately 15 to 30 days.
What after-sales service do you offer?
We provide a one-year warranty period along with 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM customizations. Please send your specifications and requirements to start a detailed discussion.
What is your advantage?
We bring over 19 years of manufacturing expertise and have been a trusted partner to top-tier global electronic companies for many years.
