Engineered to meet the stringent mechanical and electrical thresholds of global telecom operators and enterprise cloud environments.
Registered as Luguang Communication Technology Co., Ltd. in China
We stand at the interface of modern optical-electric systems, pioneering the design, manufacture, and deployment of top-tier networking components. Our expertise spans standard copper transmission systems, high-speed ethernet jacks, magnetic-integrated RJ45 modules, and optical modules (10G, 25G, 100G, 400G, 800G, and 1.6T transceivers). By bridging the physical layer with advanced micro-electronic layouts, we deliver robust connectivity solutions that power high-density cloud networks, automated factories, and edge computing nodes.
Leveraging dust-free production facilities and advanced signal-integrity testing laboratories in China, Lumopt supplies global markets with tailored OEM and ODM services. Our engineered components align with RoHS, CE, FCC, and IEEE standards, enabling reliable data transmissions under rigorous thermal and electromagnetic parameters.
In high-frequency communication design, physical layout constraints dictate network stability. Our facility specializes in high-isolation, low-insertion-loss network connectors that incorporate integrated magnetics (MagJacks). These prevent crosstalk (NEXT/FEXT) and mitigate common-mode EMI noise.
Whether provisioning ruggedized, waterproof RJ45 keystones for outdoor deployments or deploying sub-nanosecond latency optical modules for AI backend networks, we collaborate closely with system integrators to balance costs with performance.
An in-depth look at performance parameters across ethernet categories and optoelectronic transceivers.
Modern network topologies demand robust noise isolation. Wired connectors must preserve signal integrity against electromagnetic interference (EMI), electrostatic discharge (ESD), and high insertion-force stress. Here is how modern ethernet standardizations align with physical hardware specifications:
| Connector Type / Category | Bandwidth Limit | Maximum Transmission Rate | Shielding (STP/UTP) Required | Target Applications |
|---|---|---|---|---|
| Category 5e (Cat5e) | 100 MHz | 1 Gbps | Optional (Usually UTP) | Legacy Enterprise & Residential Networks |
| Category 6 (Cat6) | 250 MHz | 1 Gbps (10 Gbps @ <55m) | Optional (UTP/FTP) | Modern Commercial LANs & SOHO Installations |
| Category 6A (Cat6A) | 500 MHz | 10 Gbps | Recommended (STP) | Enterprise Servers, Storage Networks (SAN), VoIP Systems |
| Category 8 (Cat8) | 2000 MHz | 40 Gbps | Mandatory (SFTP) | Datacenter Switch-to-Server Switch Fabrics |
| Optical Modules (SFP28 to QSFP-DD) | High Frequency / Dual Wavelength | 25G / 100G / 400G / 800G | Optical Duplex Fiber LC/MPO | AI Compute Clusters, Hyperscale Edge, Core Telecom |

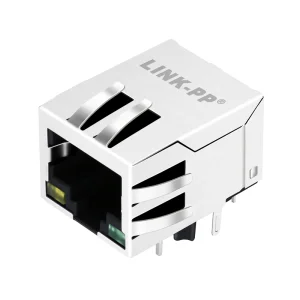

Integrating isolation transformers directly into RJ45 housings limits physical PCB footprint. This configuration shields PHY chips from common-mode noise, prevents DC offsets, and blocks transient voltage surges (ESD) up to 1,500V.
Nickel-plated copper alloy shields with ground tabs (EMI fingers) bypass high-frequency interference to ground. This is vital in dense industrial cabinets where motors, drives, and power lines generate field noise.
Engineered contact pins feature 30u" to 50u" gold plating over nickel barriers. This provides low contact resistance (<20 mΩ) and endures over 750 mating cycles without physical degradation.
A transparent look inside our Chinese production facility, displaying step-by-step processes that guarantee stable mechanical and electrical parameters.
A showcase of the testing apparatus and automated machinery deployed in our factory floor to achieve zero-defect physical and electrical tolerances.
Analyzing how different network connectors are optimized to meet the physical and electrical conditions of diverse real-world environments.
Hardware Demand: Ultra-low insertion loss, sub-microsecond optical links, and high port-density profiles.
Wired Integration: High-density low-profile RJ45 jacks are utilized for out-of-band management and console switch architectures. Concurrently, 100G/400G optical transceivers operate along the leaf-spine fabric to manage inter-switch links and high-bandwidth east-west traffic.
Hardware Demand: Complete magnetic shielding (STP/FTP) and structural resistance to chemical cleaners and vibrations.
Wired Integration: Automated manufacturing systems require specialized shielded waterproof RJ45 connector assemblies. Magnetic jacks with built-in common-mode filtering isolate delicate controller modules from variable frequency drives (VFDs) and electrical noise.
Hardware Demand: Protection against surge currents, waterproof seals, and extended operating temperature ranges (-40°C to +85°C).
Wired Integration: Outdoor small-cell structures and municipal sensors utilize sealed, waterproof RJ45 connectors. The contact points are plated with heavy gold layers to resist corrosion, and combined with high-grade, UV-resistant housing materials.
Procuring connectors and transceivers from China offers cost benefits, design customization, and reliable scalability. Lumopt operates vertical manufacturing structures that integrate lead-frame punching, plastic injection molding, and component winding.
We maintain structured quality tracking records. Each finished product undergoes multi-stage inspections, including return-loss checks and high-pot isolation trials.
Our products meet global standards for mechanical, electrical, and thermal endurance.
Addressing core mechanical, electrical, and commercial layout questions from system designers and sourcing managers.
Explore our high-performance transceivers, low-profile sockets, and specialized waterproof network components.
