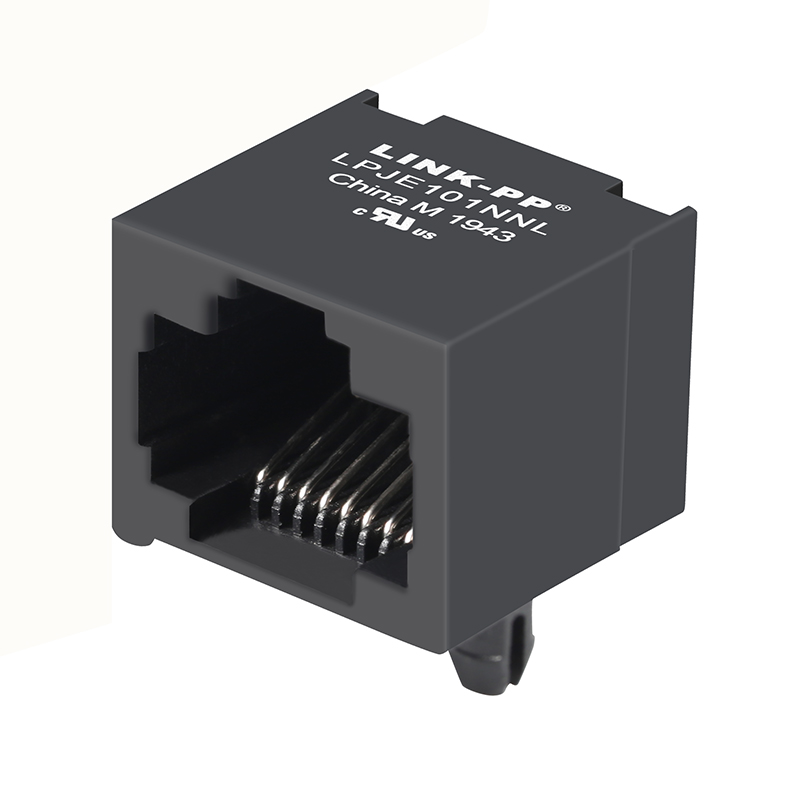

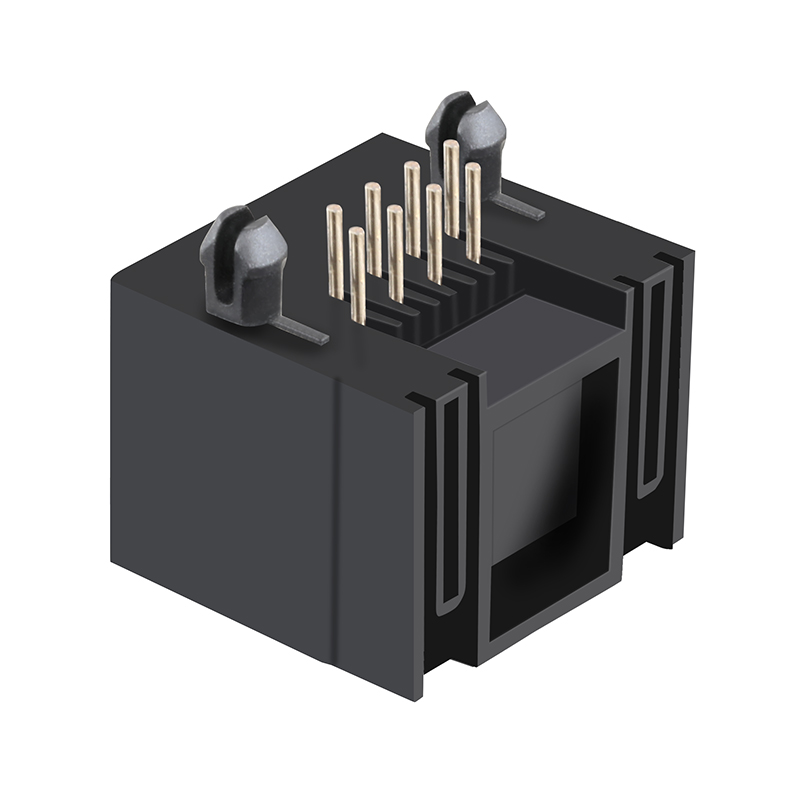

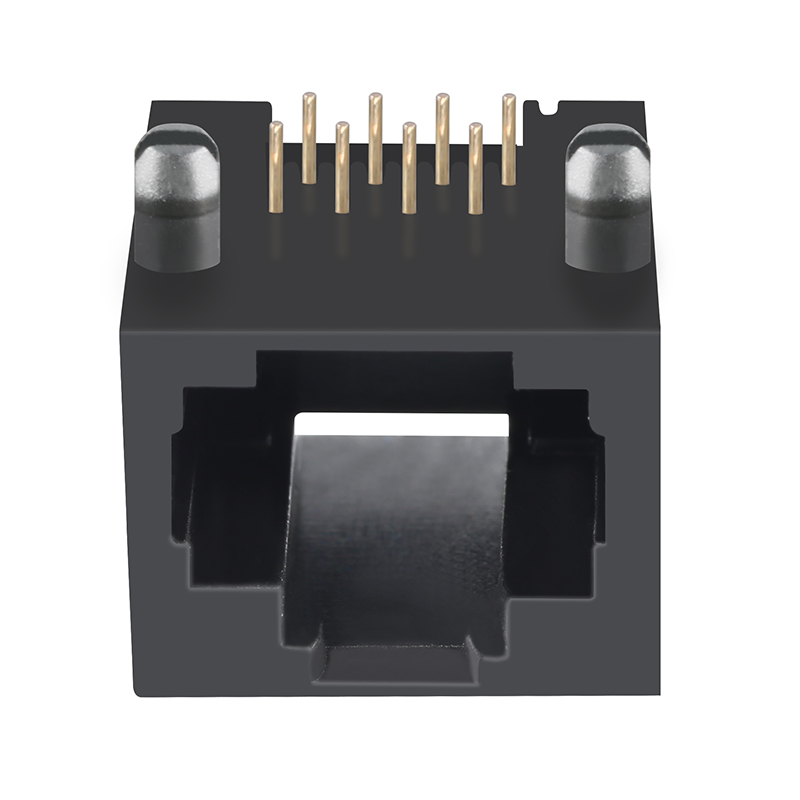

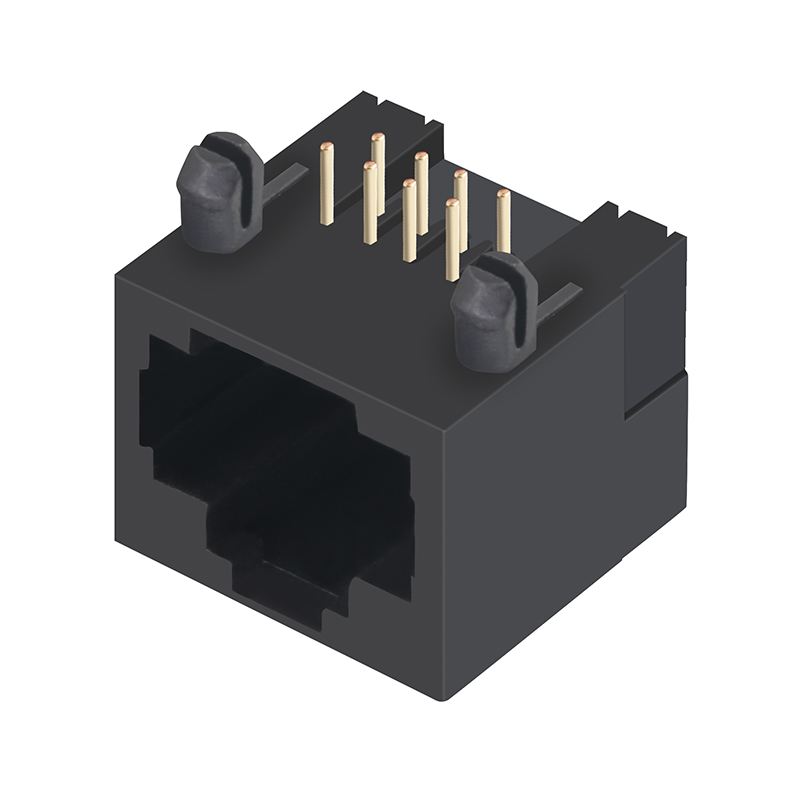

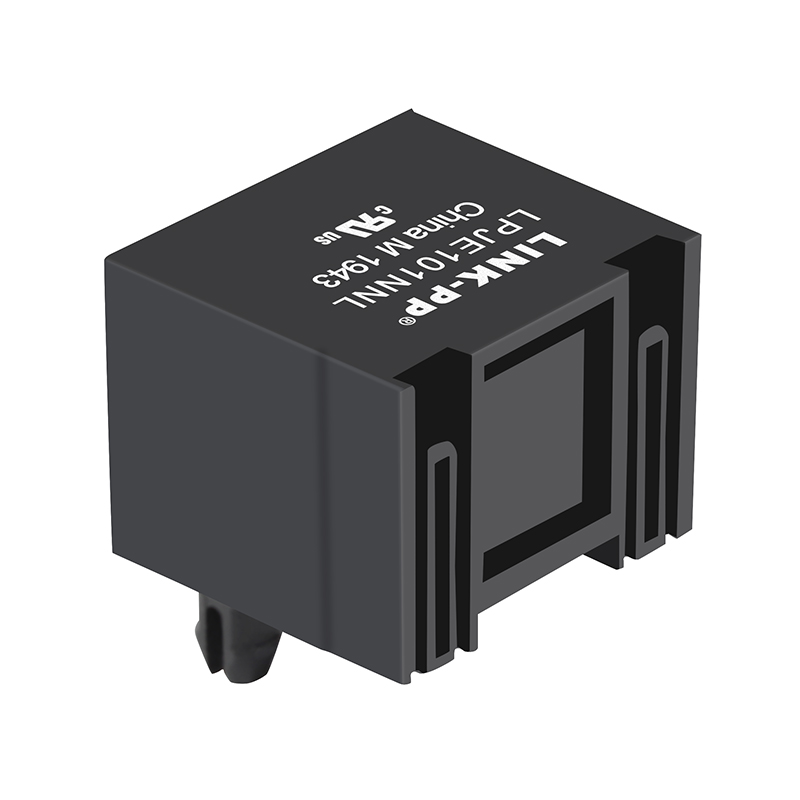

| Item | RJ45 Modular Jack |
| Part Number | LPJE101NNL |
| Cross Part Number | RJHSE-5085 |
| Part Status | Active |
| Connector Type | Jack |
| Application-Lan | Ethernet(Non PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Down |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Without |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, but shipping fees are the responsibility of the customer.
Products in stock are ready to ship, and mass production orders typically require 15-30 days.
We offer a one-year guarantee period along with 24-hour online technical support.
Yes, please send your inquiries to us so that we can have a detailed discussion about your requirements.
We have 19 years of professional production experience and have partnered with leading global enterprises for many years.
