100 Base-T single port through hole Magnetics Transformer BD16A01
Products Description
Item Lan Transformer
Replaceable Brand Model BD16A01
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1 Port
Speed 100 Base-t
Cores per Port 4
Pin Number 12 Pin
Mounting Type Dip
Temperature 0°C TO 70°C
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel

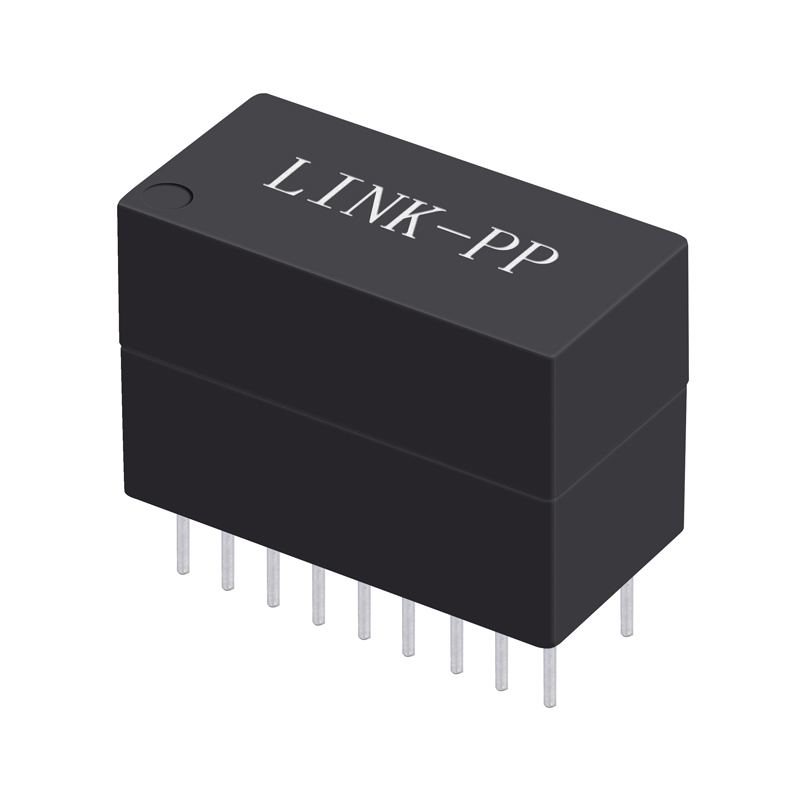

BD16A01 Detail View 1
