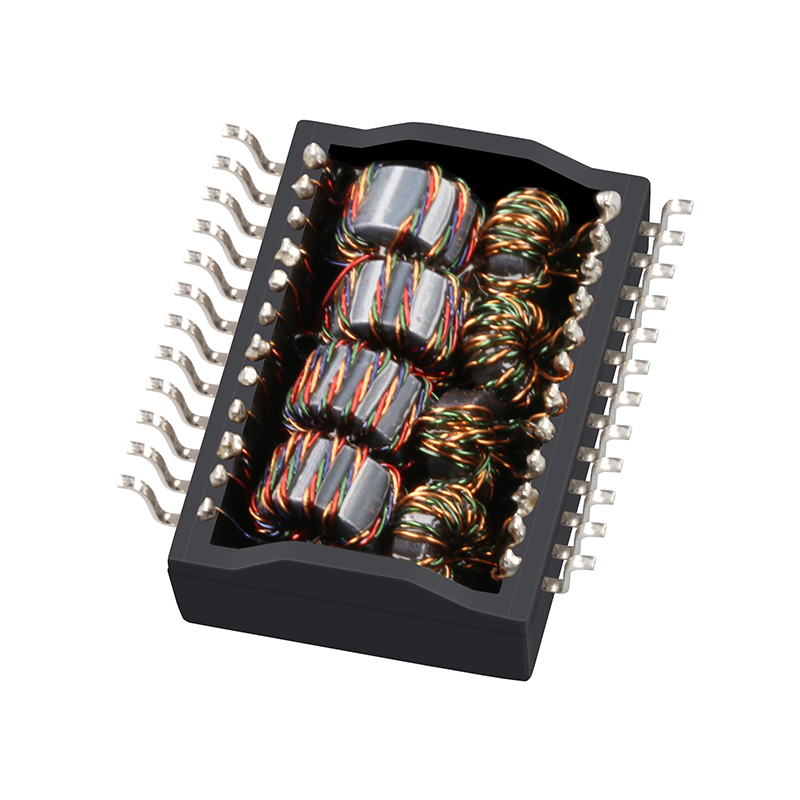

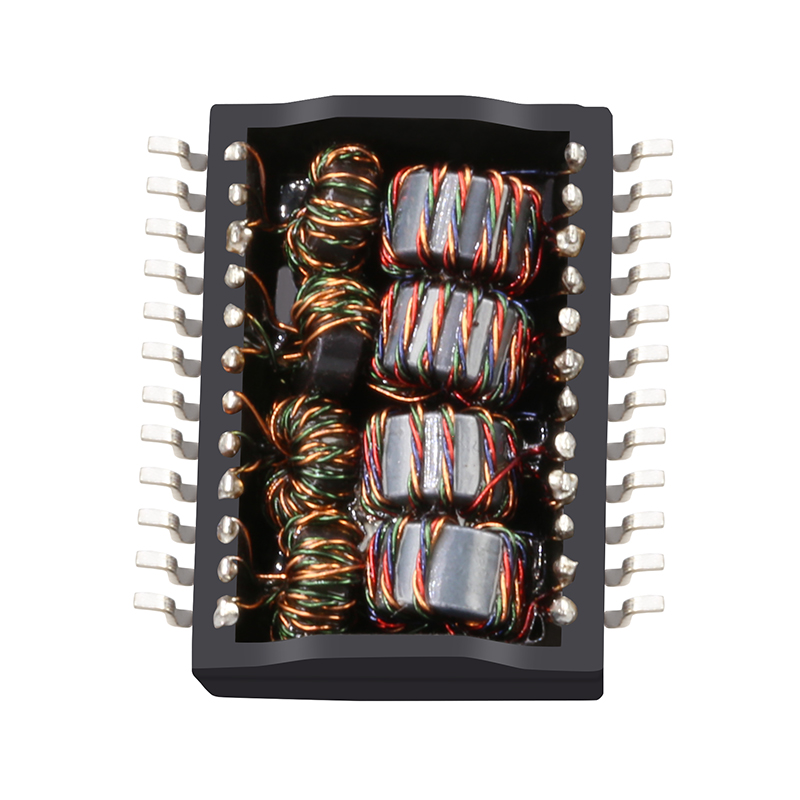

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
1 / 5
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

Send Inquiry

Product Description

Product Overview
Detail 1
Detail 2

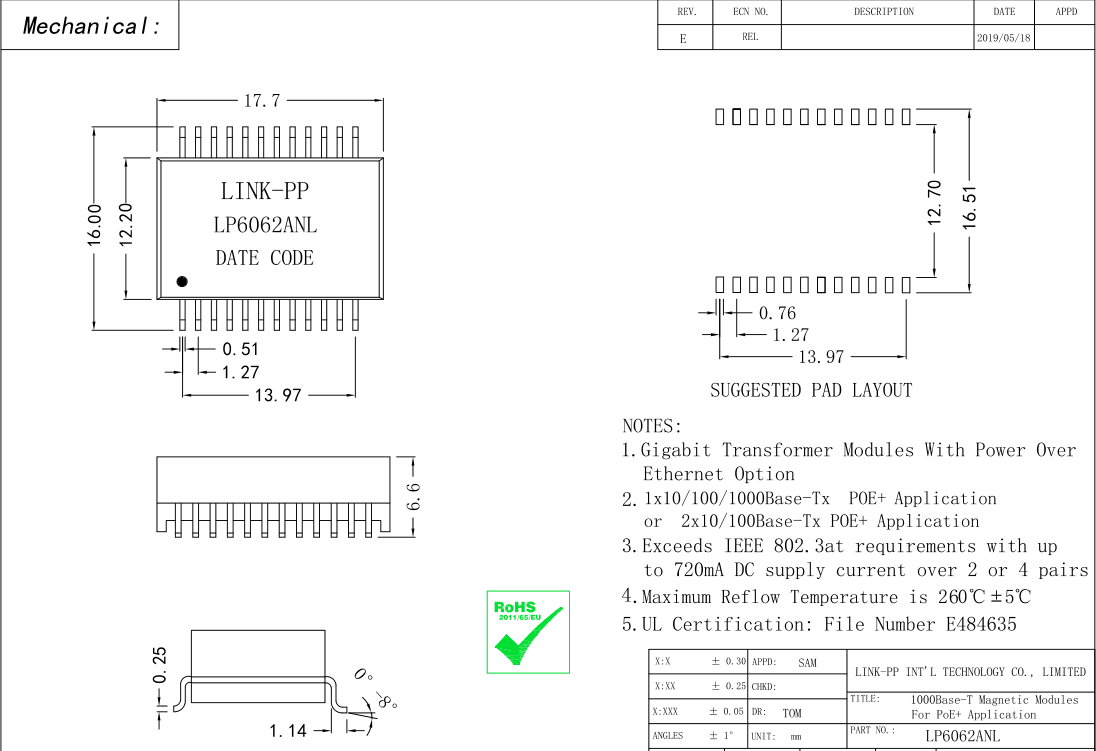

Detail 3
Specifications Diagram
Item Value
Place of Origin China

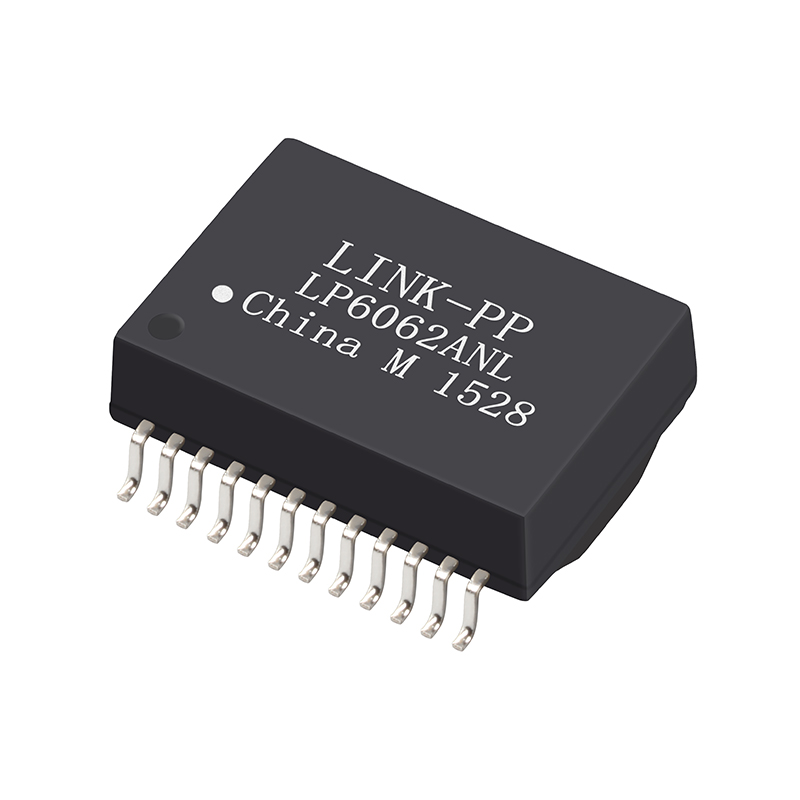

LINK-PP Part Number: LP6062ANL
Halo Part Number TG1G-S012NZRL
Transformer Type Lan Transformer
Application-Lan Ethernet(PoE+)
Number of Ports Single Port
Speed 10/100/1000 Base-T
Package Tape & Reel
Cores per Port 8
PIN number 24 Pin
Mounting Type Surface Mount
Temperature -40℃ TO +85℃
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S

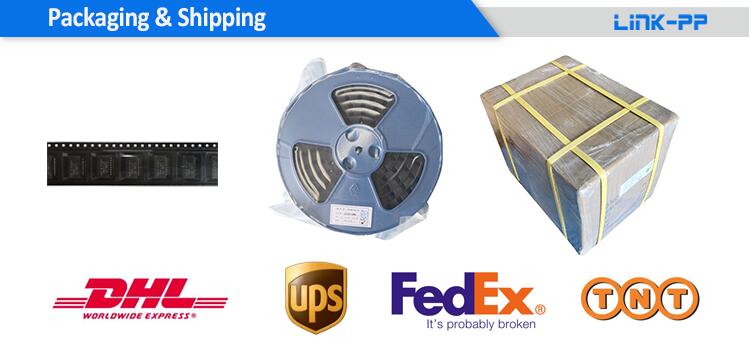

Packaging Dimension
Package & Logistical Specifications
N.W/pcs: 0.004kg | Package: Reel | SPQ: 400pcs | Qty/carton: 1600pcs | Carton size: 37*37*25cm | G.W/carton: 5.8kg
Production View 1
Production View 2
Production View 3
Application 1

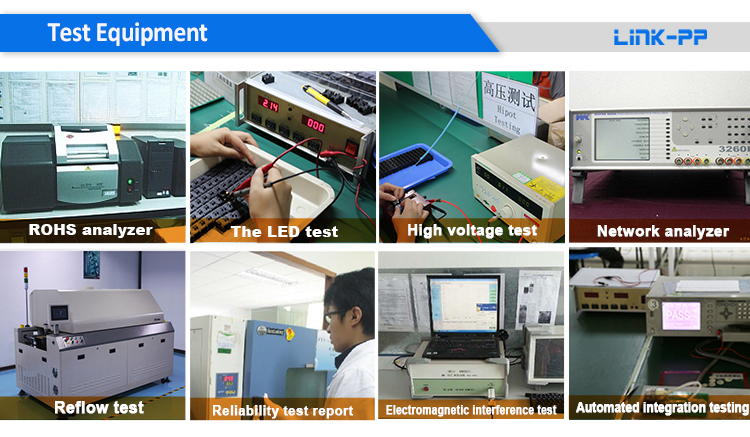

Application 2
Application 3
Quality Standard Certificate
Frequently Asked Questions
What is the direct crossover model for LINK-PP LP6062ANL?
The LP6062ANL is fully compatible and serves as a direct cross-reference for the Halo TG1G-S012NZRL LAN transformer.
What network speeds and standards does this transformer support?
This LAN transformer supports 10/100/1000 Base-T Gigabit Ethernet network applications and is fully compatible with PoE+ (Power over Ethernet) standards.
What is the operating temperature range for this component?
It operates reliably within an industrial temperature range of -40°C to +85°C, making it suitable for both commercial and harsh industrial environments.
What packaging type is available for automated assembly?
The product is provided in Tape & Reel packaging, optimized for standard surface-mount (SMD) pick-and-place manufacturing processes.
What are the primary shipping quantities and measurements?
Each reel has a standard package quantity (SPQ) of 400 pieces. A full carton contains 1,600 pieces with a dimension of 37*37*25cm and a gross weight of 5.8kg.
