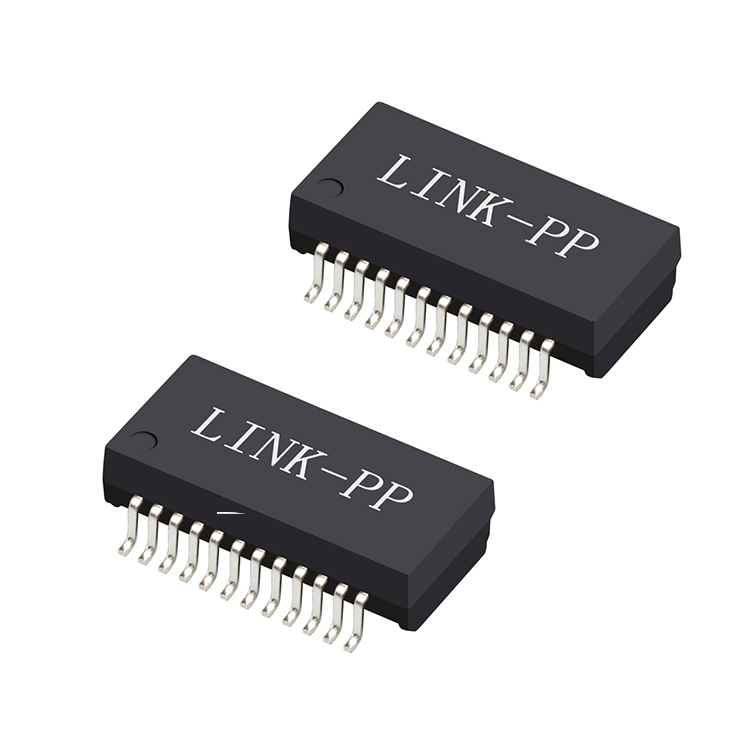

NS0013BLF 10/100 Base-T SMD Lan Filter Module Magnetic Transformer
◆ Products Description
| Item | Lan Transformer |
| Replaceable Brand Model | NS0013BLF |
| Part Status | Active |
| Construction | Open frame |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Single / Dual / Quad |
| Speed | 10 / 100 / 1000 Base-t |
| Cores per Port | 4 / 8 / 12 |
| Pin Number | 10 Pin / 12 Pin / 24 Pin / 48 Pin |
| Mounting Type | Dip / Smt |
| Temperature | 0℃ To 70℃ / -40℃ To 85℃ |
| AutomDX | YES |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C,S |
| Package | Tape & Reel |
■ Profile & Capabilities
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver goods within a short time. Moreover, we provide professional complete solutions for magnetic components and strong technical support.

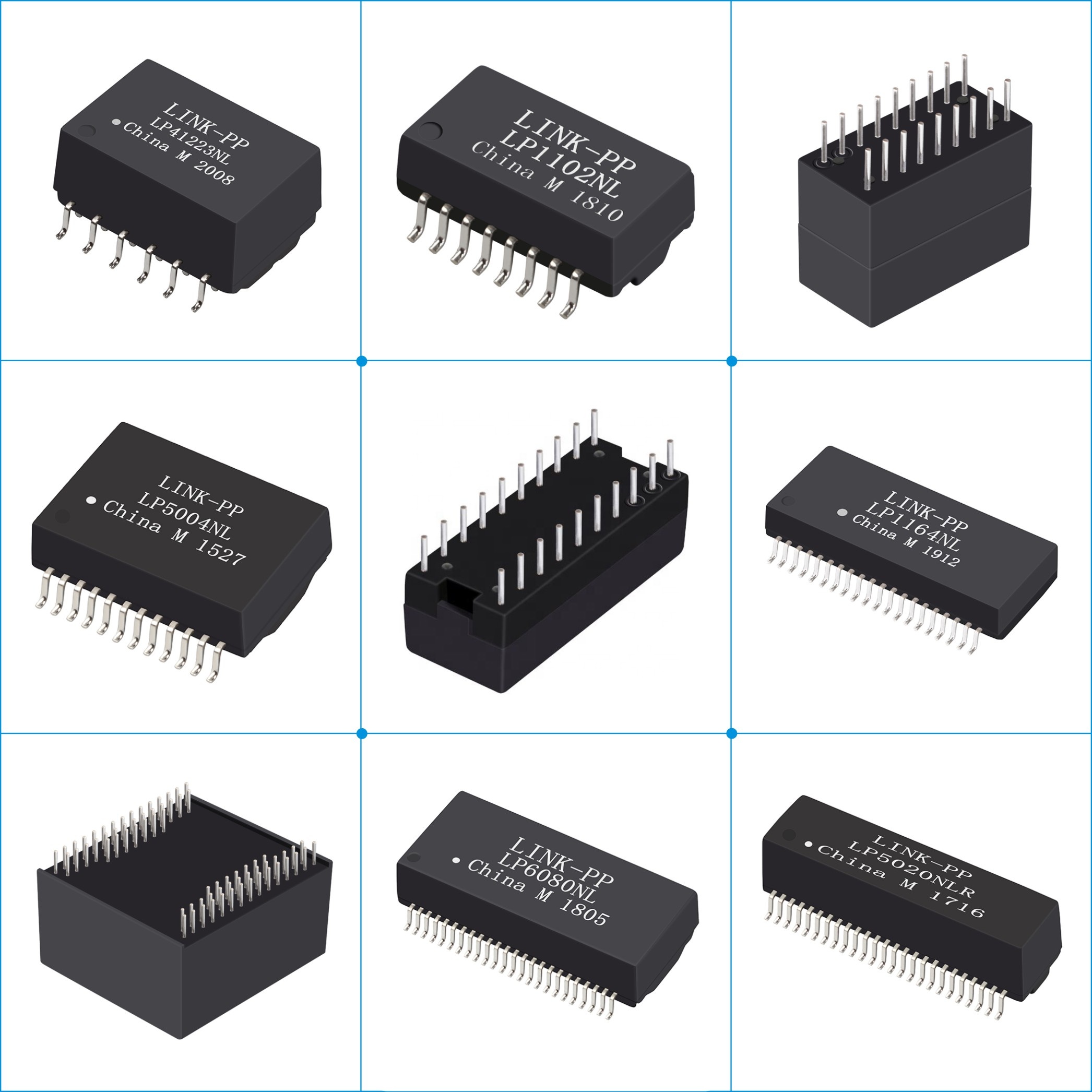

Main Products include 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.
❓ FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the shipping fee should be covered by the requester.
What is your delivery time?
Items are ready to ship for stock; mass production typically takes 15-30 days.
What after-service can you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM inquiries for detailed discussion on your specific requirements.
What is your advantage?
With over 19 years of production experience, we have been a trusted partner for global industry leaders for many years.
