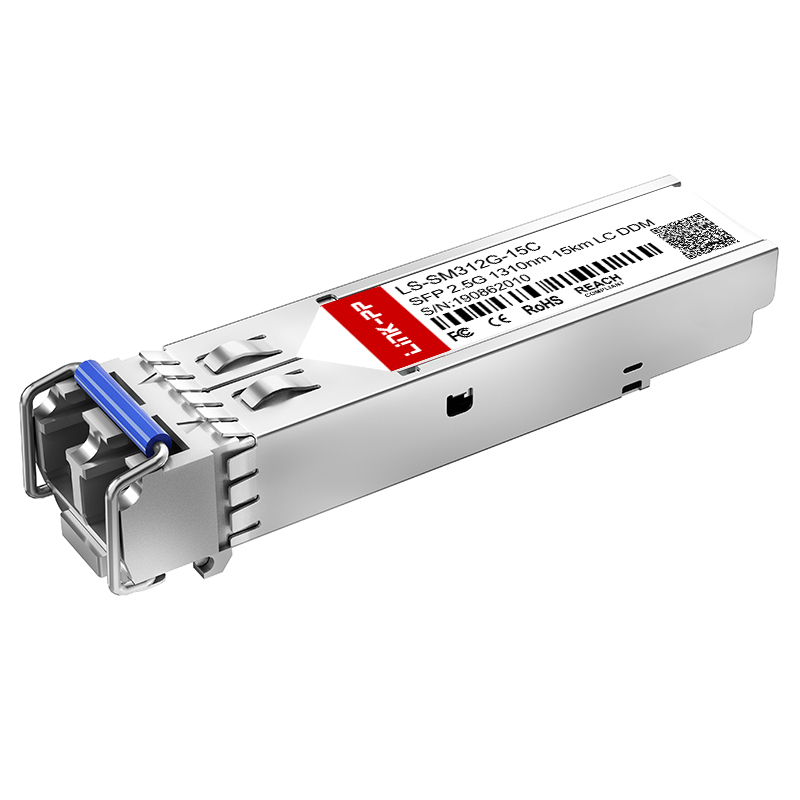

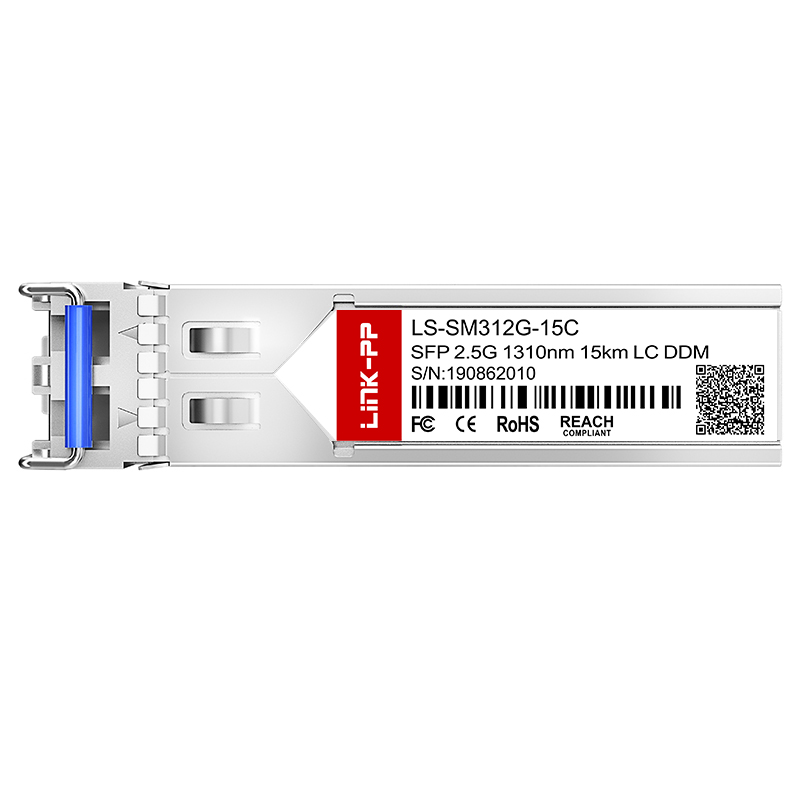

2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module
1 / 5
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module

2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module

Send Inquiry

Product Description

Optical Communication Products Banner
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module
Products Description
Item 2.5G SFP
Part Status Active
Form Factor SFP
Max Data Rate 2.5Gbps
Wavelength 1310nm
Max Cable Distance 15km
Media SMF
Connector Duplex LC
Optical Component DFB/PIN
TX Power -5~0dBm
Receiver Sensitivity <-18dBm
Receiver Overload 0dBm
Power Consumption 1W
Extinction Ratio >8.2dB
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5 Compliant
Warranty 5 Years
Sample Available
2.5G SFP Transceiver Module Optical View
SFP Optical Module Application and Interface Specs
SFP Production Detail 1
SFP Production Detail 2
SFP Production Detail 3
SFP Production Detail 4
SFP Production Detail 5
SFP Transceiver Dimensions and Mechanical Blueprint
Related Products SFP Cage
SFP Cage Design Option 1
SFP Cage Design Option 2
Why Choose Us
Quality Standard Certificate 1
Quality Standard Certificate 2
Production Process Flowchart
Advanced Testing Instrumentation
Automated Manufacturing Equipment
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee needs to be covered.
Q What is your delivery time?
Products in stock are ready to ship. For mass production orders, the delivery time takes between 15-30 days.
Q What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, OEM and ODM orders are accepted. Please send us your specifications so we can discuss the requirements in detail.
Q What is your advantage?
We possess 19 years of dedicated manufacturing experience and have operated as an established partner for top industry clients for many years.
