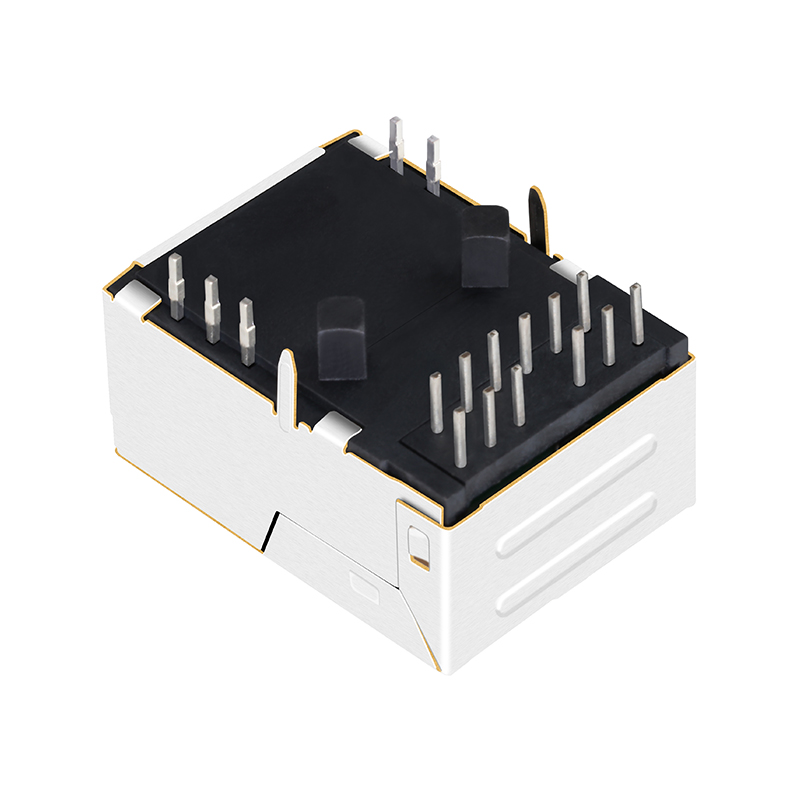

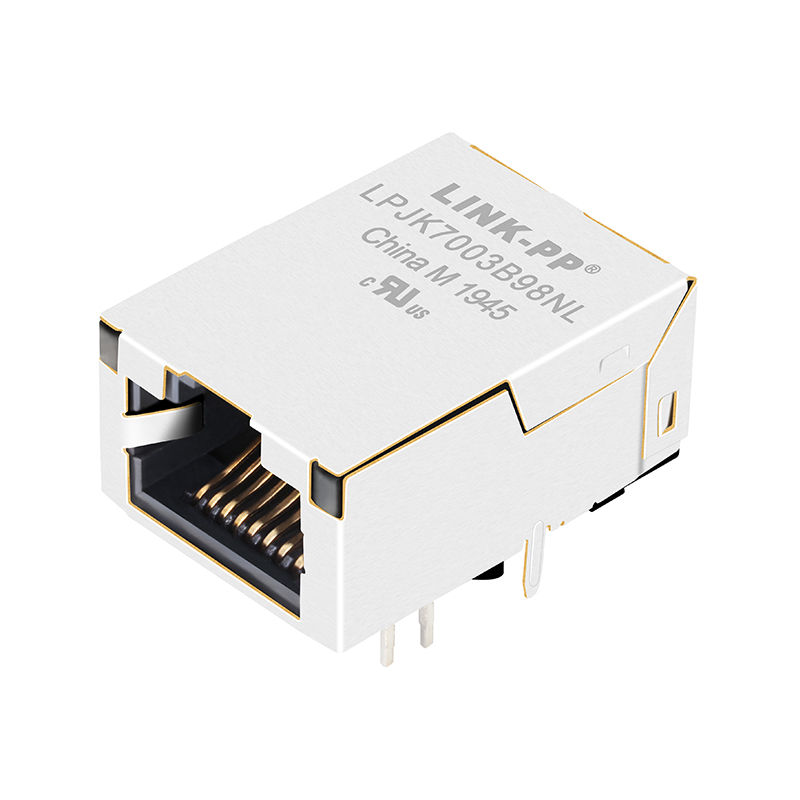

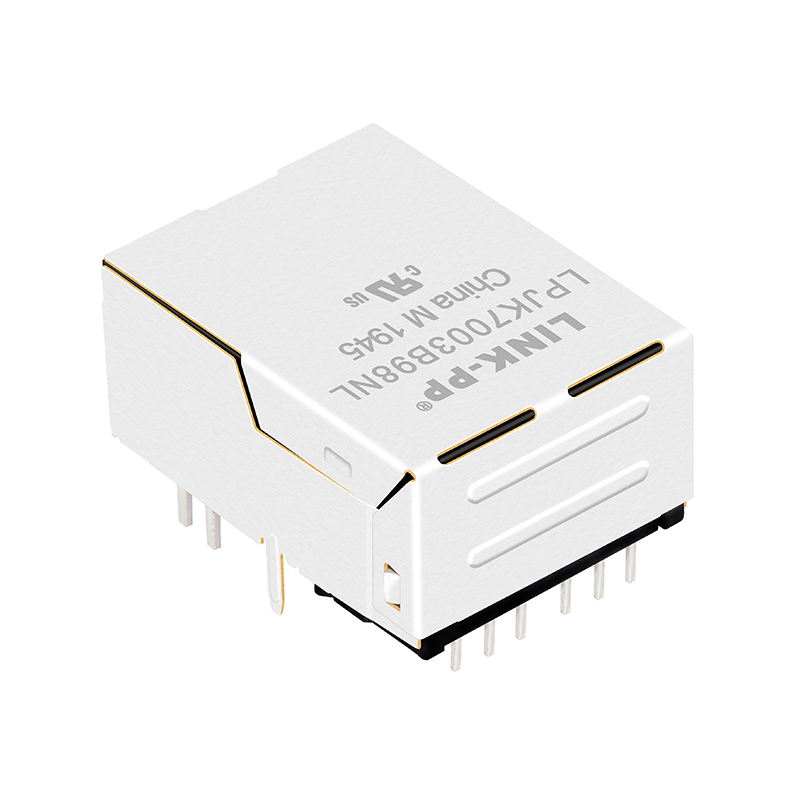

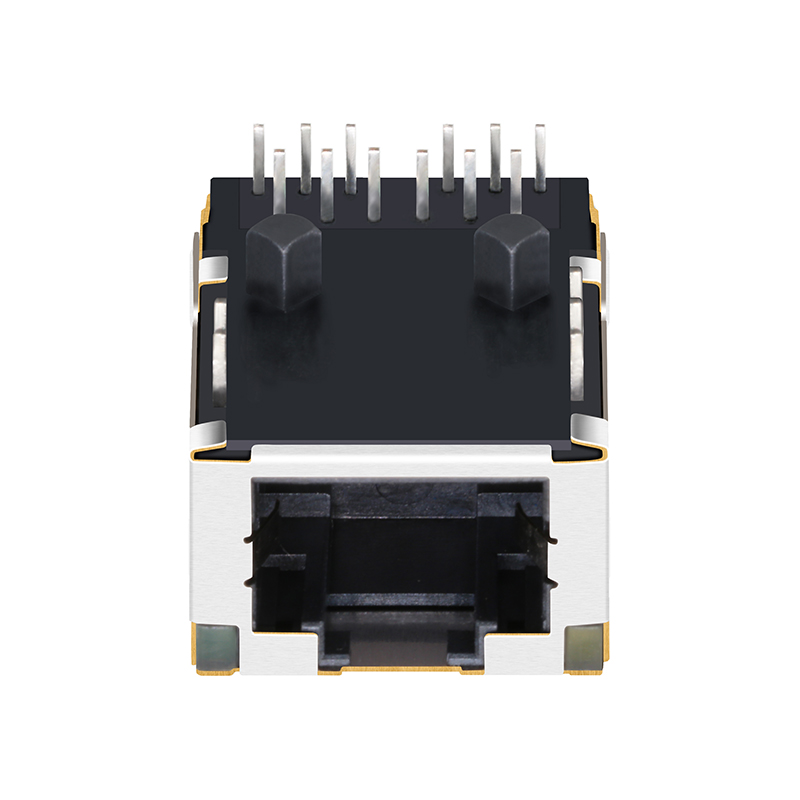

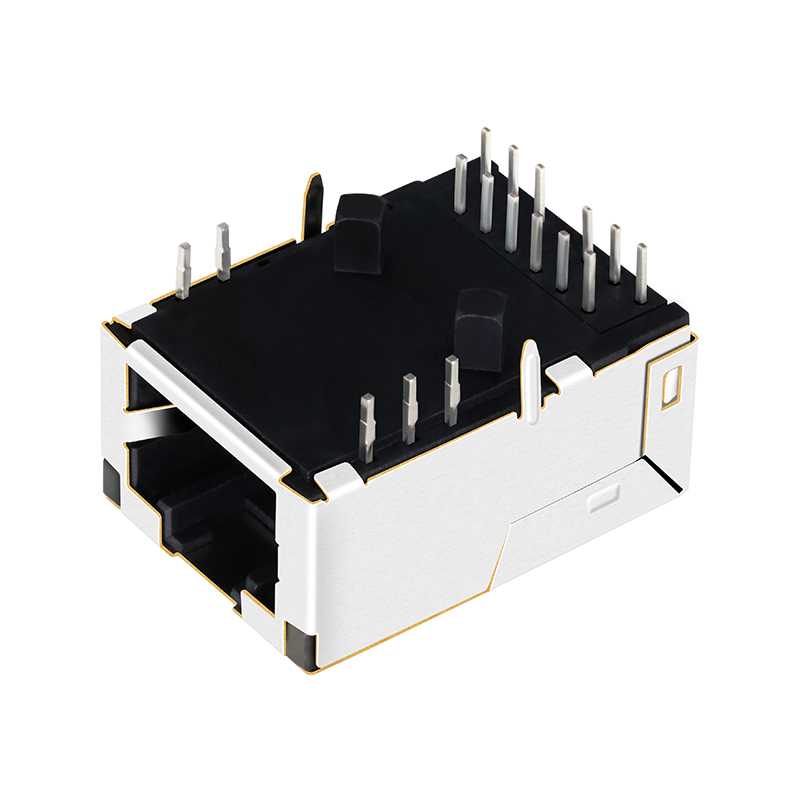

1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1 / 5
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED

1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED

Send Inquiry

Product Description

RJ45 Female Connector with LED
1840718-6 For Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
Products Description
Item RJ45 Female Connector
Part Number LPJK7003B98NL
Compatible With 1840718-6
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Connector Overview
Recommended Products Showcase
Low Profile RJ45 Series SMT RJ45 Series Vertical RJ45 Series Single Port RJ45 Series Multiport RJ45 Series RJ45 USB Series Gigabit Connector Detail LAN Transformer Detail Production Process Quality Control Product Compliance
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components, with an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading Ethernet RJ45 connector and LAN transformer provider.
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are to be covered by the customer.
What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production orders typically require 15 to 30 days.
What after-service can you offer?
We offer a one-year warranty period alongside 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please reach out to us with your requirements so we can discuss the customization details.
What is your advantage?
We possess over 19 years of production expertise and have established stable long-term partnerships with major global technology integrators.
