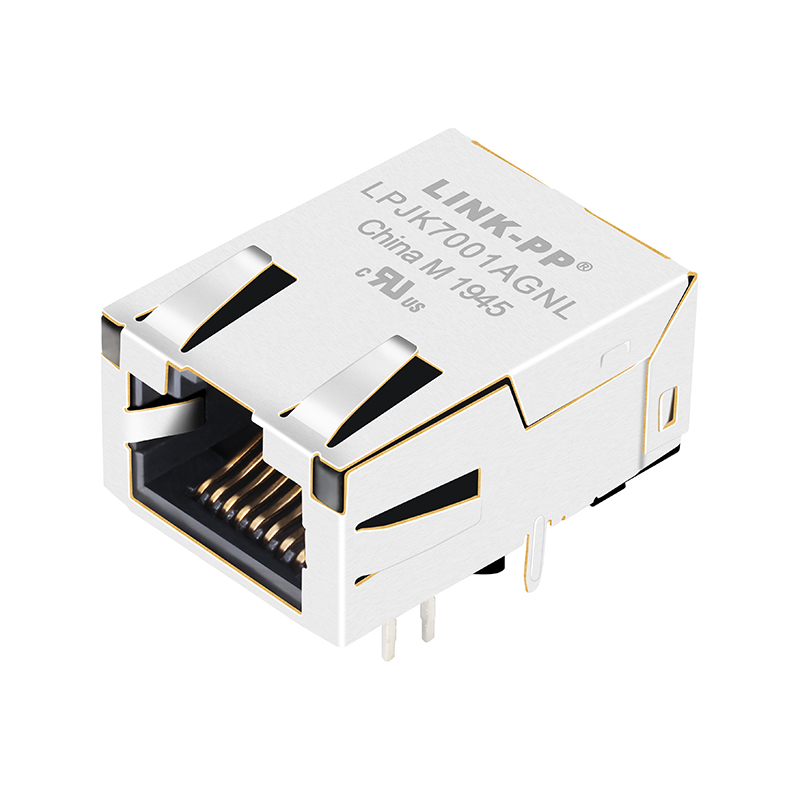

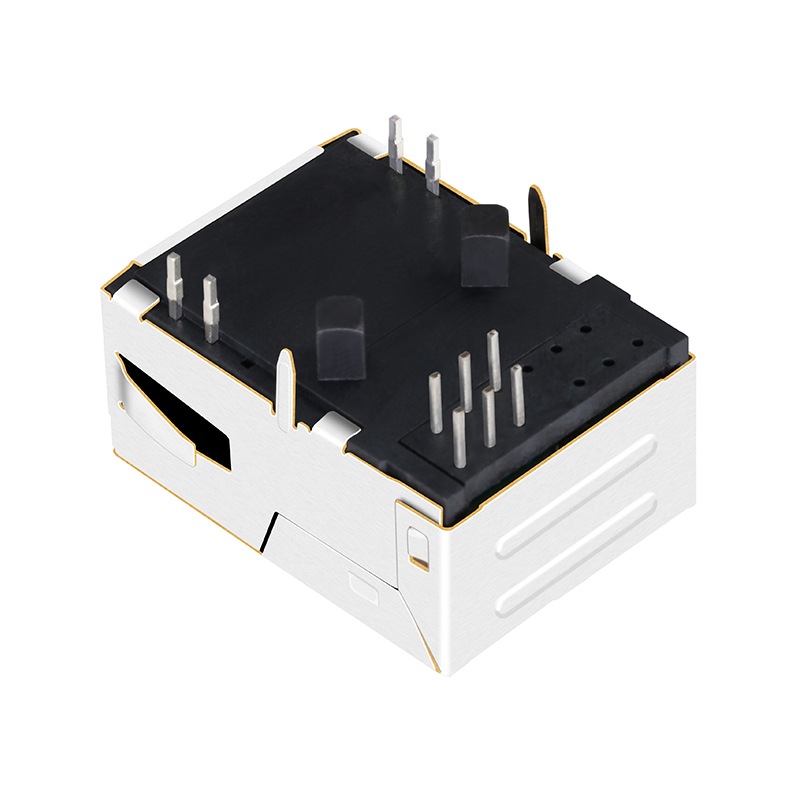

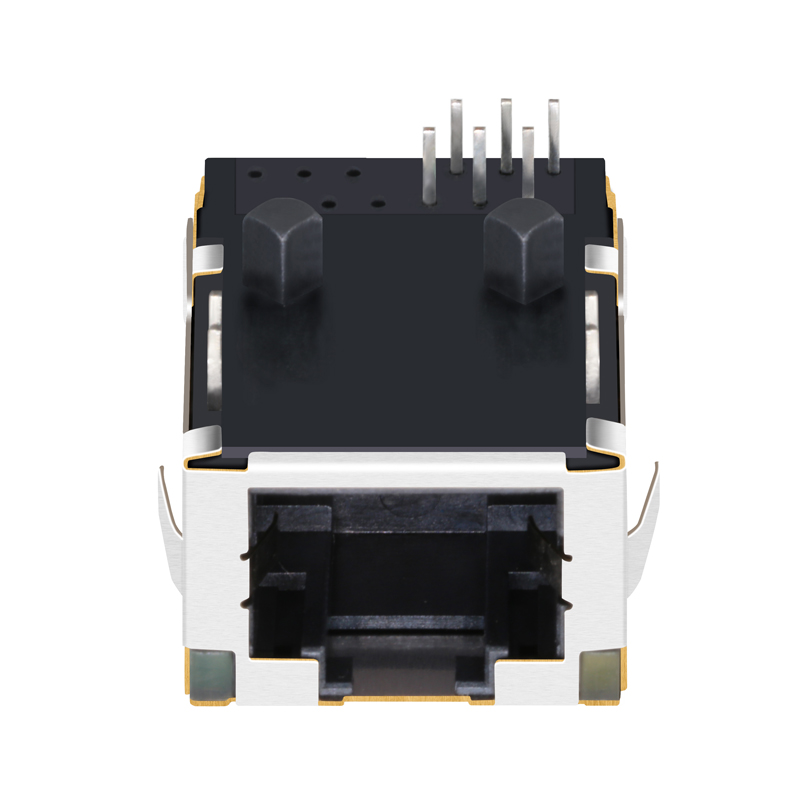

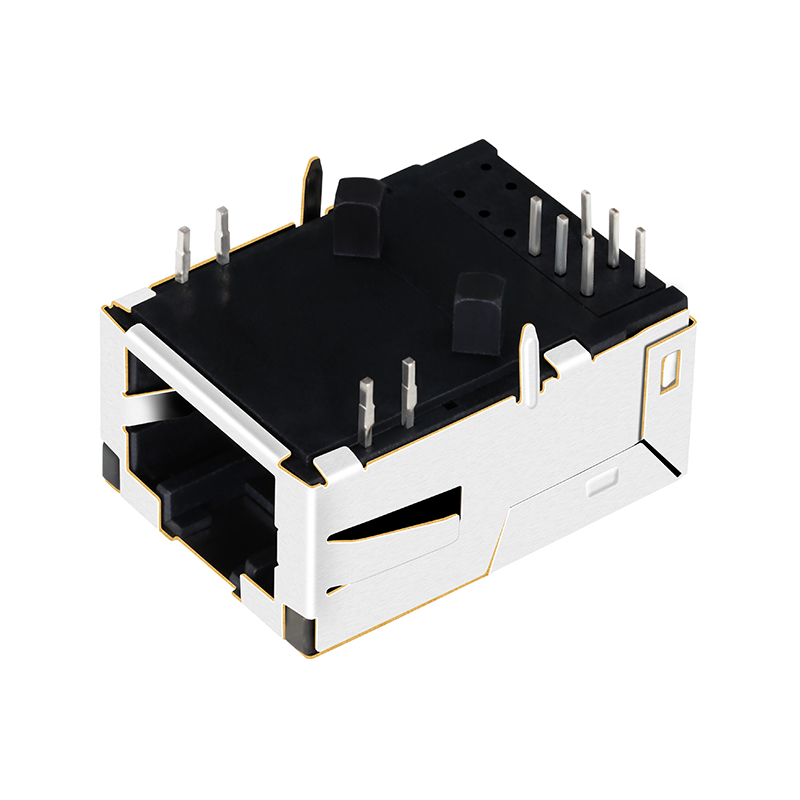

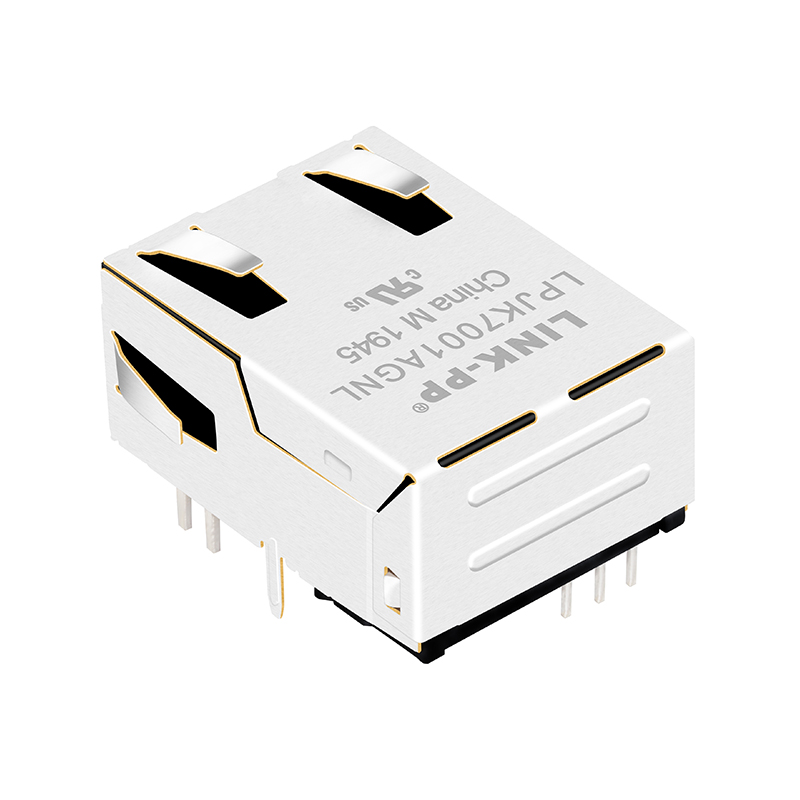

LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
1 / 5
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector

LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector

Send Inquiry

Product Description

Product Categories
LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
Specification
item RJ45 Connector
Model Number LPJK7001AGNL
Part Status Active
Connector Type Low Profile RJ45
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Number of Cores per Jack 4
Shielding Shielded
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Product Display 1
Product Display 2

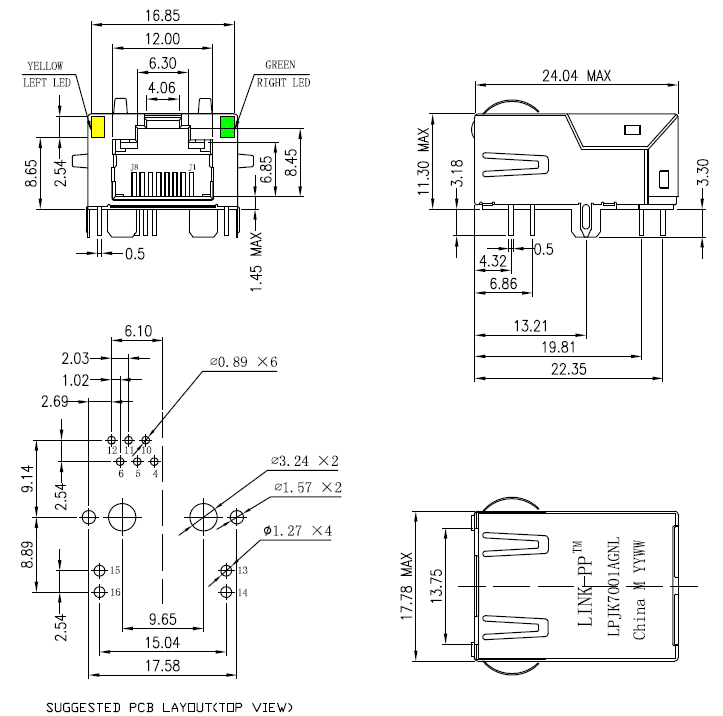

Product Diagram
Product Showcase
Product Matrix
Technical Specifications Chart
Quality Standard Assurance
Testing Lab Overview
Production Process Flow
Quality Verification
Advanced Equipment
Storage Area
Company Profile
Established in 1997, the company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
The company is a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Factory Facility
Automatic Production Line
Logistics Center
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
Q What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
Q What after-service can you offer?
We offer a one-year guarantee period and provide technical support online 24 hours.
Q Can you accept OEM/ODM order?
Yes, please send an inquiry to us so that we can have a detailed discussion.
Q What is your advantage?
We bring 19 years of professional production experience and long-term partnerships with leading global technology enterprises.
