Home > Low Profile RJ45 Connector > L829-1G1T-43 Tab up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds

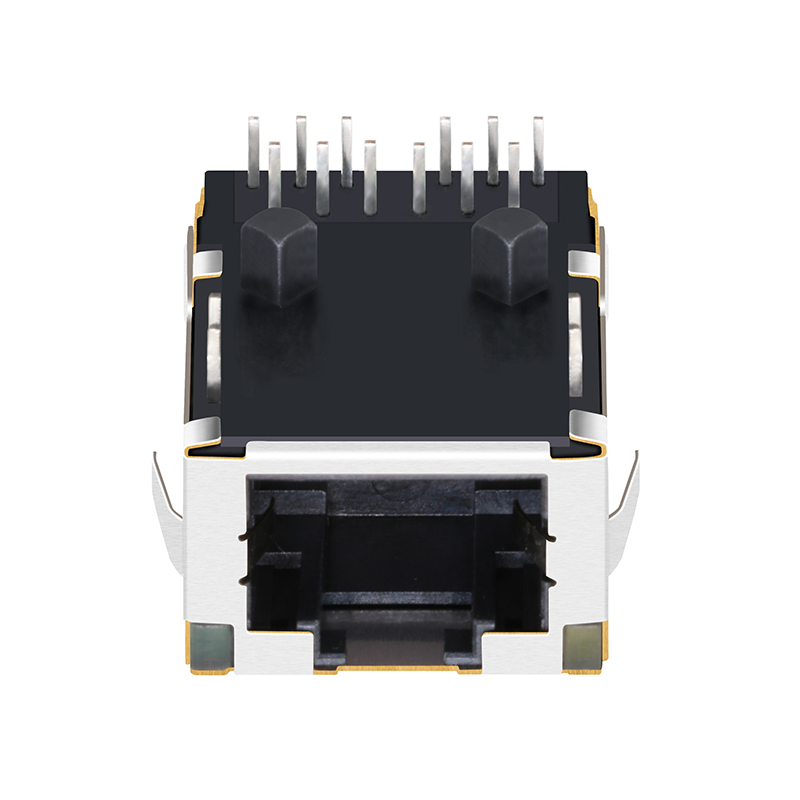

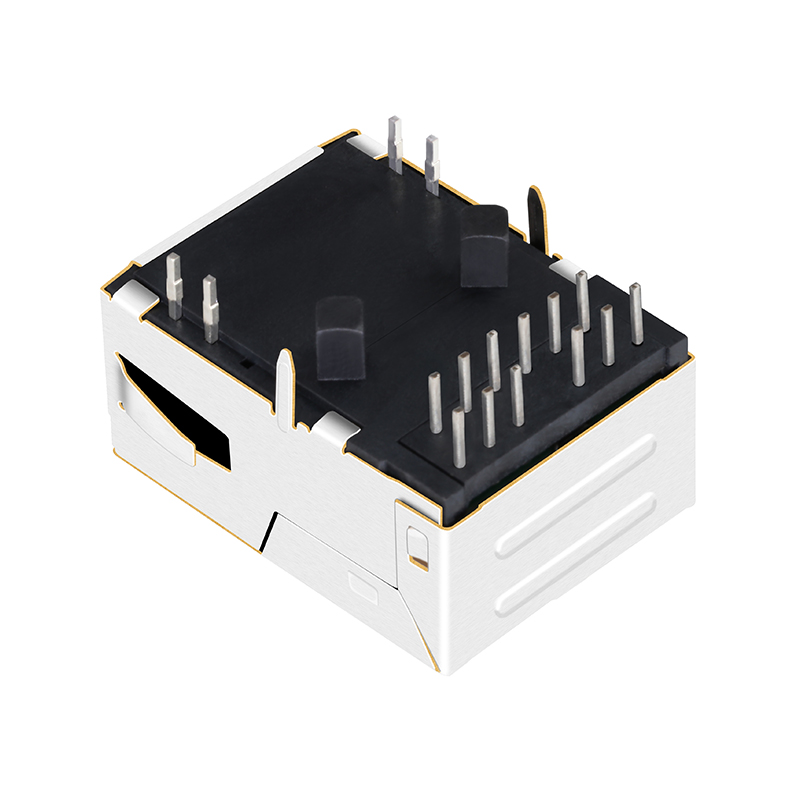

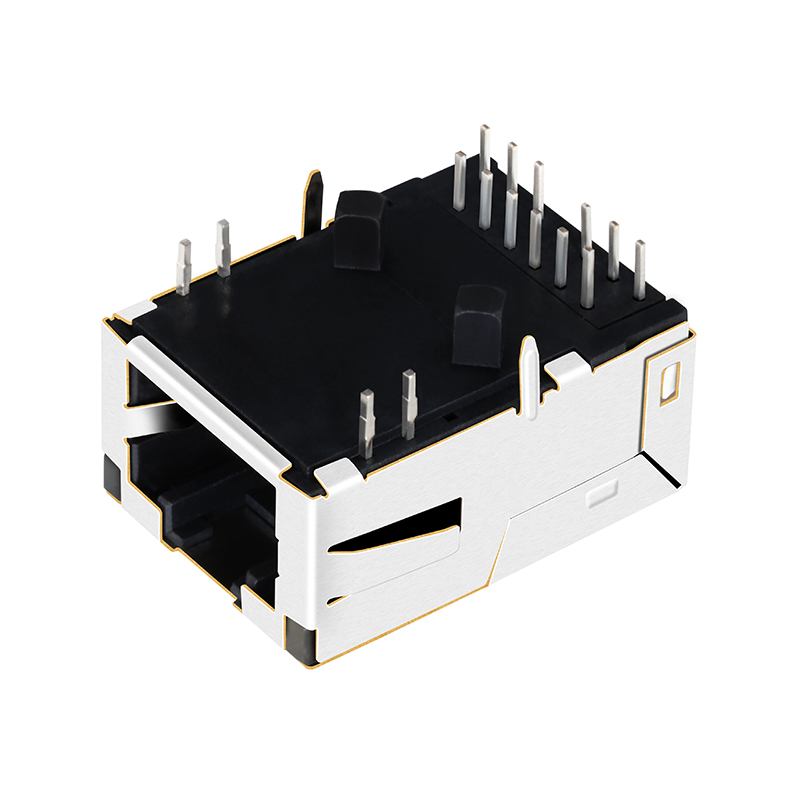

L829-1G1T-43 Tab up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds
L829-1G1T-43 Tab up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds
L829-1G1T-43 Tab up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds
L829-1G1T-43 Tab up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds
L829-1G1T-43 Tab up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds
1 / 5
L829-1G1T-43 Tab up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds
L829-1G1T-43 Tab up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds
L829-1G1T-43 Tab up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds
L829-1G1T-43 Tab up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds
L829-1G1T-43 Tab up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds

L829-1G1T-43 Tab up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds

Send Inquiry

Product Description

L829-1G1T-43 Tab Up 10/100/1000 Base-t Magnetic Ethernet Low Profile RJ45 Jack Connector With Leds
Product Overview
📋Products Description
Item RJ45 Female Connector
Part Number LPJK7036AWNL
Compatible With L829-1G1T-43
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Green
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Dimensional Drawing
📂Product Range & Categories
Product Categories Overview
🛡️Quality Assurance & Specifications
Certification
Material Specification
Testing Standard
Package Details
Operational Environment
Quality Standard
🏭Manufacturing & Production Facility
Production Workshop
Testing Laboratory
Equipment Setup
❓Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you are responsible for the shipping fee.
What is your delivery time?
Products are ready to ship from stock, and it takes 15-30 days for mass production of non-stock items.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
What is your advantage?
We have 19 years of professional production experience and have been a trusted partner to global technology leaders for many years.
