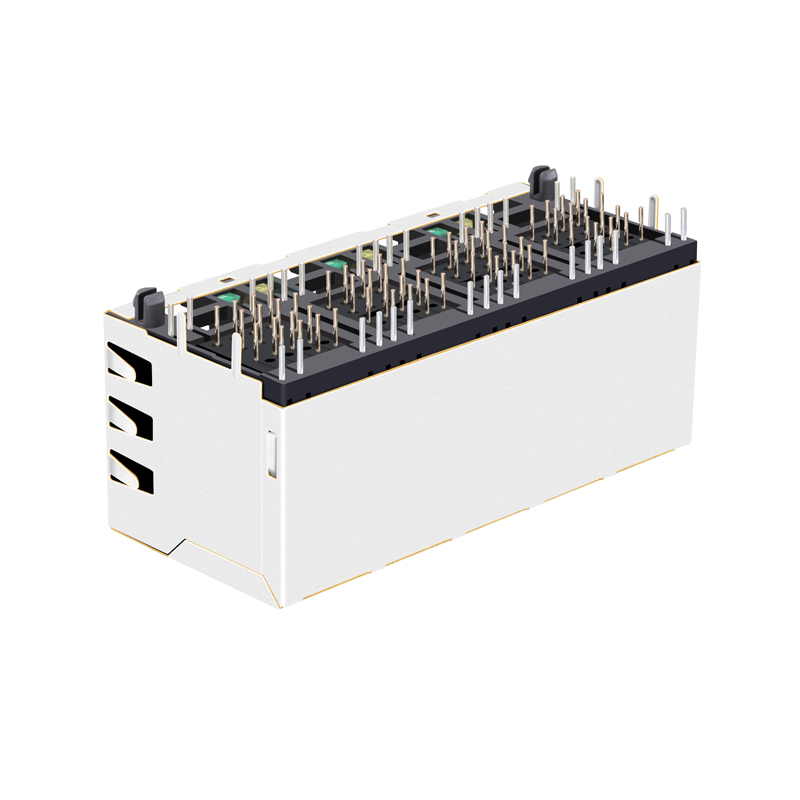

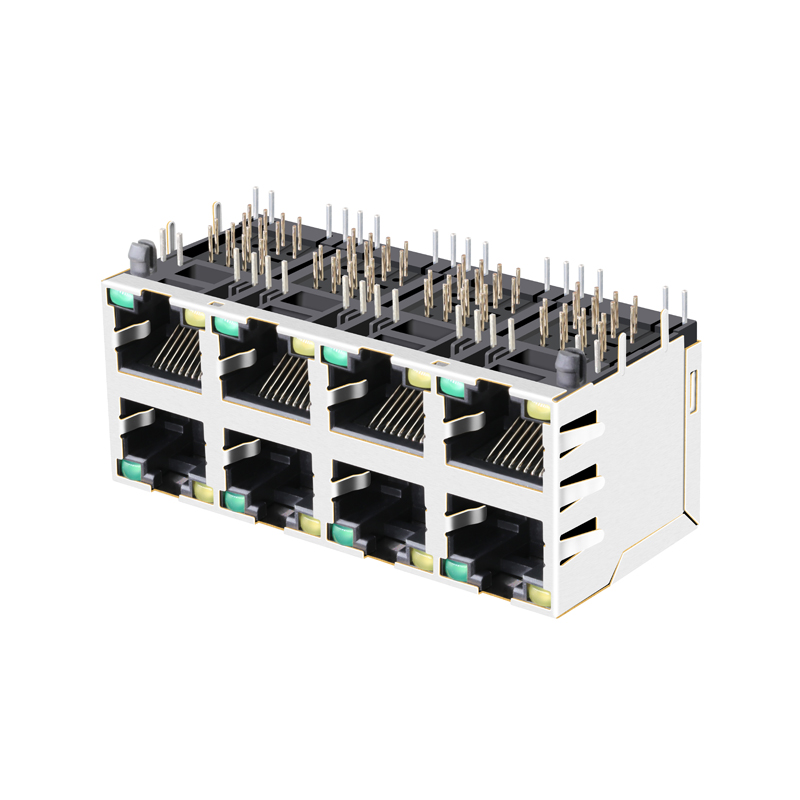

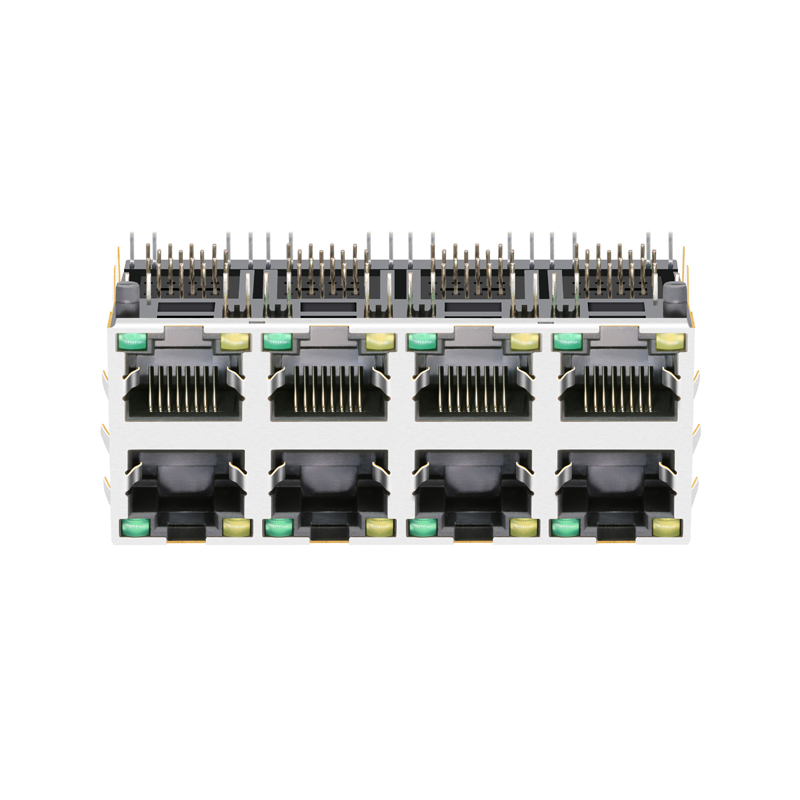

RJSNE-5381-08 RJSAE-5385-08 Without Magnetics 2x4 Port 8 Pin Ethernet RJ45 Connector

Product Description

Ethernet RJ45 Connector Overview

RJSNE-5381-08 RJSAE-5385-08 Without Magnetics 2x4 Port 8 Pin Ethernet RJ45 Connector

📋 Products Description
Item RJ45 Female Connector
Part Number LPJE108XAGNL
Compatible With RJSNE-5381-08 RJSAE-5385-08
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(Non PoE)
Number of Ports 2x4 Port
Speed Without Magnetics
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Green
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Options Info
Product Categories Grid
🔍 Product Specifications & Technical Drawings
Dimensions Layout
Mechanical Layout
Technical Specifications Sheet
Electrical Diagram
Product Layout Diagram
Packing Info
Factory Material Certificate
🏢 Company Profile

Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities.

As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading global Ethernet RJ45 connector and LAN transformer provider.

Production Facility Office
Manufacturing Area
Testing Lab
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees must be covered by the buyer.
What is your delivery time?
Items that are currently in stock are ready to ship. For mass production orders, the delivery timeframe is between 15 and 30 days.
What after-sales service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send us your inquiry details so we can proceed with a detailed discussion regarding your customization requirements.
What is your key advantage?
We have over 19 years of production experience and have partnered with industry-leading global brands for many years.
