LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
1 / 5
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

Send Inquiry

Product Description

Product Description

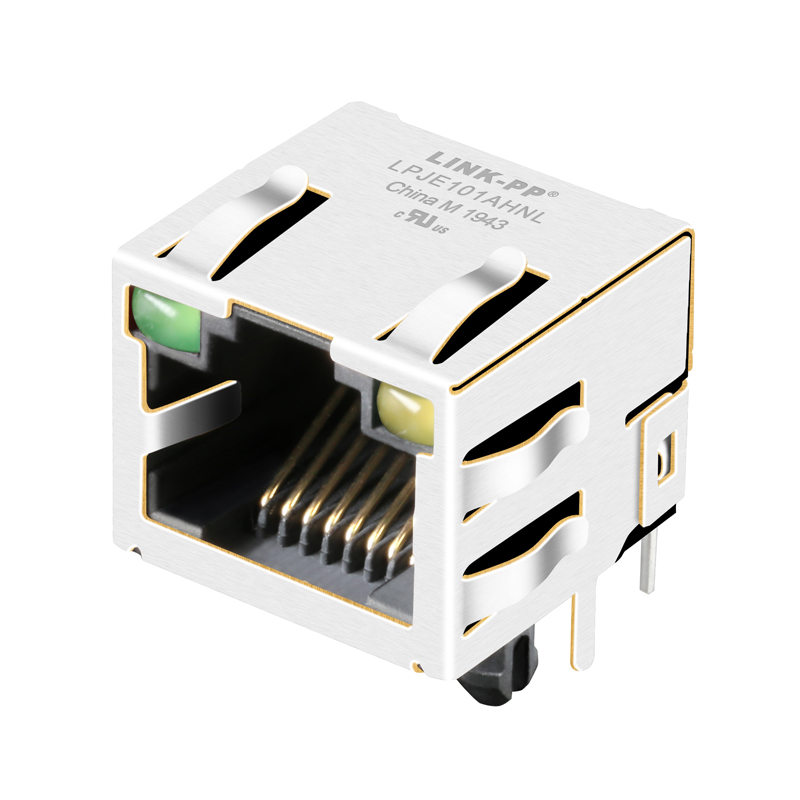

Product Image 1

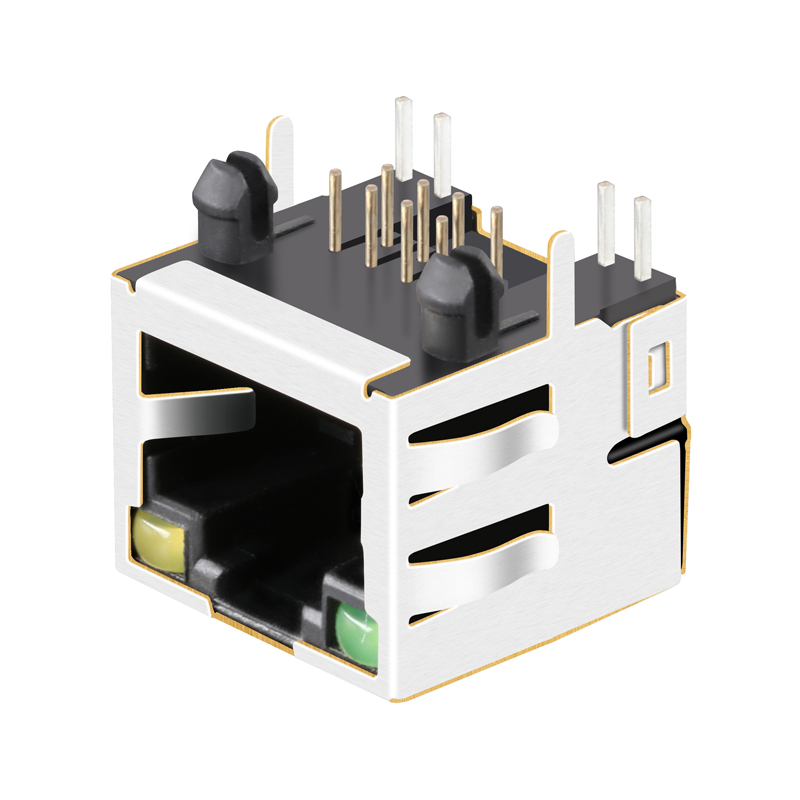

Product Image 2
Specification
Item Value
Model Number LPJE101AHNL
Part Status Active
Connector Type RJ45
Applications Without Magnetics
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Shielding Shielded, EMI Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Packing & Delivery
Package Details
Package TypeTray
Carton Size54.5 * 28.5 * 27 cm
G.W / Carton13.1 kg
Qty / Carton3000 pcs
SPQ100 pcs
N.W / Piece0.004 kg
Packing Details Image
Company Profile

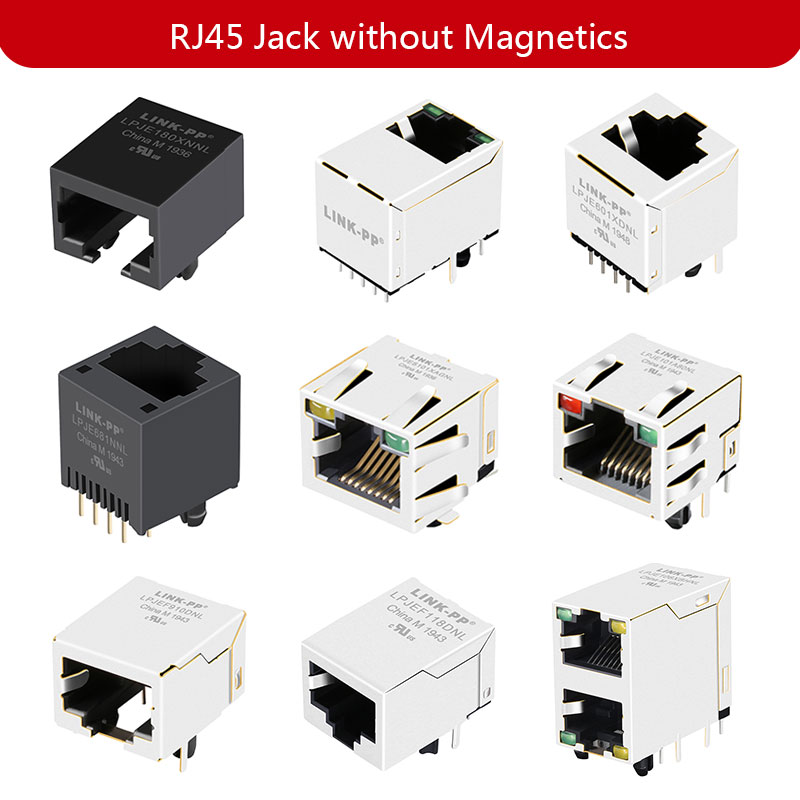

Company Profile Image 1
Company Profile Image 2
Company Profile Image 3
Company Profile Image 4
Company Profile Image 5
Company Profile Image 6
Frequently Asked Questions
Q What is the specific application of the LPJE101AHNL connector?
The LPJE101AHNL is a standard RJ45 connector designed without internal magnetics. It is widely used in network interfaces, communication equipment, and peripheral connections where external magnetics or isolation circuits are already implemented on the motherboard.
Q What are the mounting and termination requirements for this connector?
This connector uses a Through-Hole mounting type with a 90° right-angle orientation, making it ideal for horizontal PCB assembly. Termination is achieved via traditional soldering process to ensure a secure and durable mechanical and electrical connection.
Q What is the LED configuration and function?
The connector features built-in dual-color LEDs (Yellow/Green) to indicate link connection, status, and network activity. These integrated LEDs help save board space and simplify front panel design.
Q Does this RJ45 connector provide shielding against electromagnetic interference (EMI)?
Yes, the LPJE101AHNL is fully shielded and equipped with EMI fingers. This design provides excellent grounding performance and protects data transmission integrity by minimizing electromagnetic and radio-frequency interference.
Q What is the operating temperature range for this product?
This connector is designed to withstand harsh environments, featuring a wide operating temperature range from -40°C up to 85°C. This industrial-grade temperature rating ensures reliability in both consumer and demanding industrial applications.
Q What are the packaging and order minimums?
The product is standard-packaged in protective Trays. The standard package quantity (SPQ) is 100 pieces per tray, and the master carton contains 3000 pieces (with carton dimensions of 54.5*28.5*27cm and a gross weight of 13.1kg).
