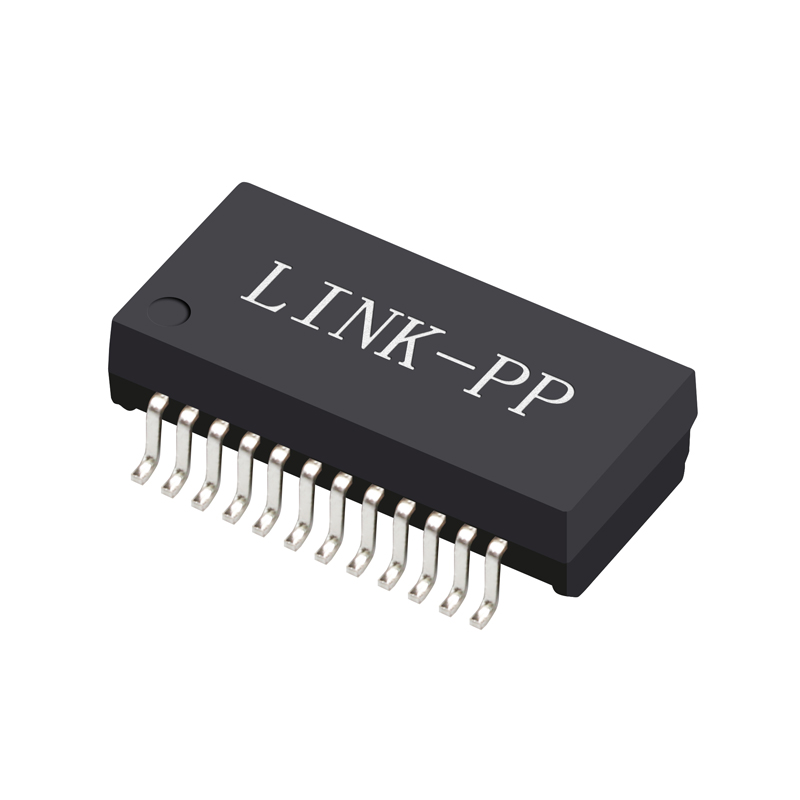

IEEE802.3af 1000 Base-T Single Port Transformer Module QT24A03

Product Description

Transformer and Connector Modules
IEEE802.3af 1000 Base-T Single Port Transformer Module QT24A03

Products Description

Item Lan Transformer
Replaceable Brand Model QT24A03
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1 Port
Speed 1000 Base-t
Cores per Port 8
Pin Number 24 Pin
Mounting Type SMT
Temperature 0℃ TO 70℃
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel
QT24A03 Transformer Detail 1 QT24A03 Transformer Detail 2 QT24A03 Transformer Detail 3
QT24A03 Transformer Detail 4 QT24A03 Transformer Detail 5
QT24A03 Mechanical Dimensions QT24A03 Electrical Schematic

Why Choose Us

Quality Assurance Process Advanced Machinery Strict Quality Control Global Delivery & Packing

Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, and we own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components along with strong technical support. Our main products include 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with 10/100/1000M magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and ISDN, HDSL, ADSL, and VDSL interface line transformers and splitters. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions worldwide, covering major markets in Europe, America, and Asia. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for our customers' unique requirements. We trust that our strength in the field and our commitment to excellence will convince you to be our long-term partner.
Factory Testing Department Automatic Production Line Quality Inspection Stage Warehousing Facilities

Frequently Asked Questions

1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee needs to be covered by your side.
3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and online technical support 24 hours a day.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
We have 19 years of professional production experience in this industry, supplying high-performance solutions globally.
