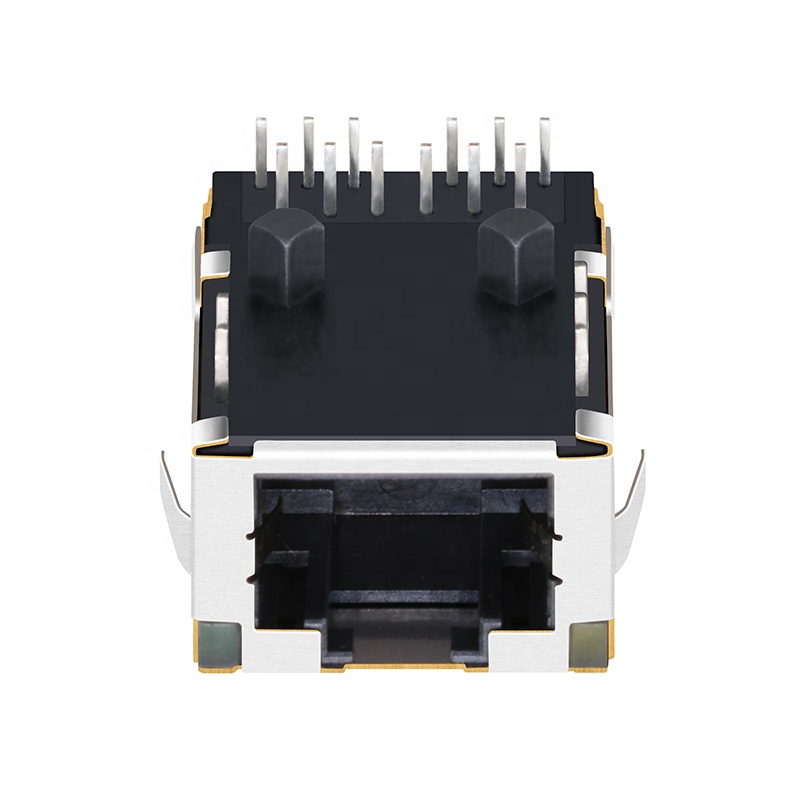

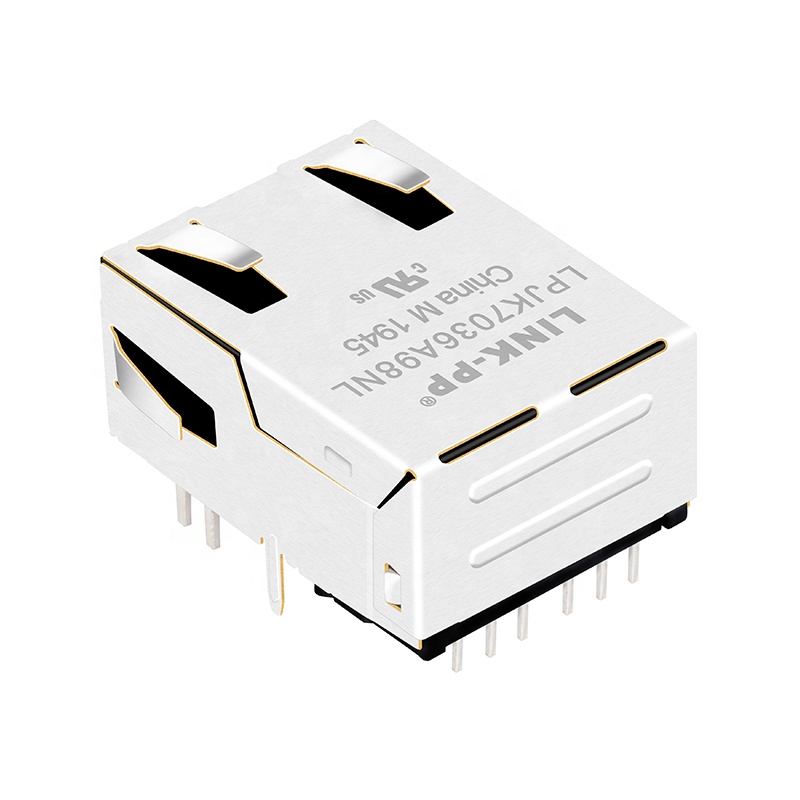

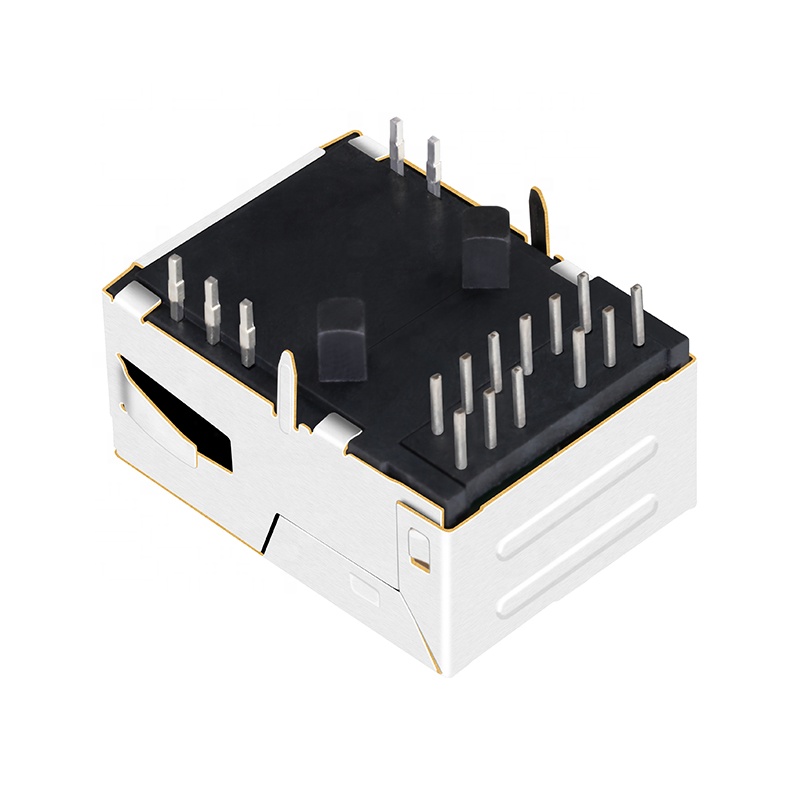

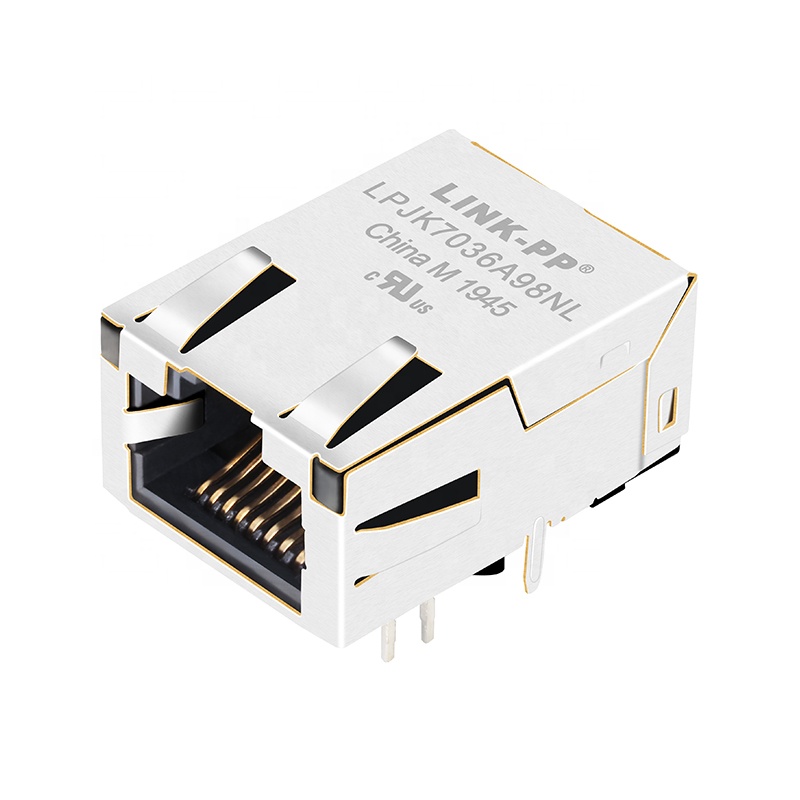

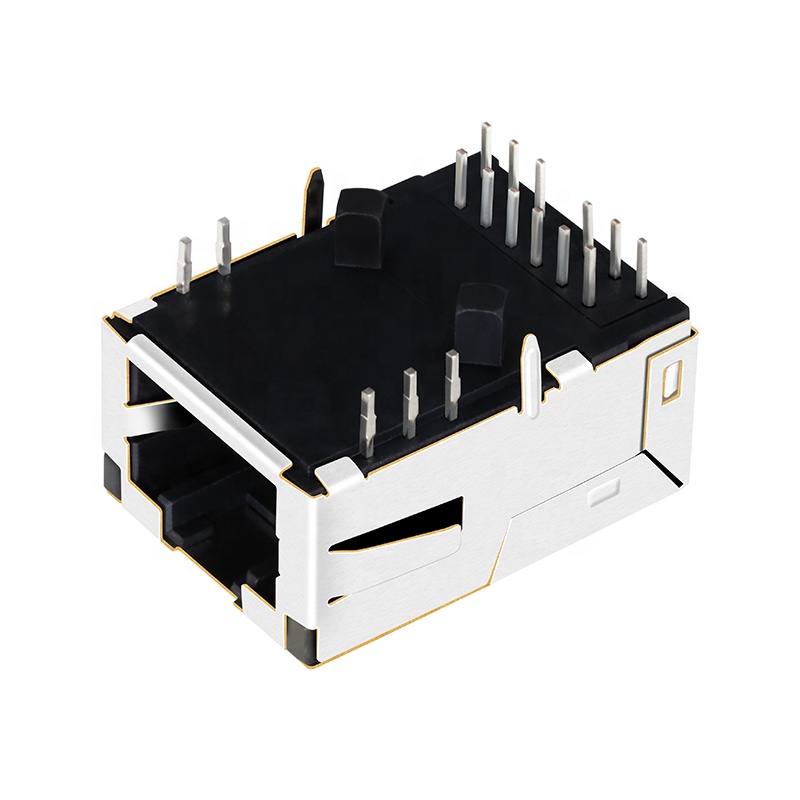

With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
1 / 5
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector

With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector

Send Inquiry

Product Description

With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
RJ45 Connector Options
Products Description
Item RJ45 Female Connector
Part Number LPJK7036A98NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Drawing Detail
Product Catalog & Category Overview
Product Range Categories
Technical Specifications & Dimensions
Electrical Diagram
Mechanical Specification
Structure Layout
Pin Configuration
Quality Assurance & Production Environment
Quality Compliance Certificate
Automated Manufacturing Line
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with the shipping fee covered by the buyer.
What is your delivery time?
Items in stock are ready to ship immediately, while mass production typically takes 15-30 days.
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so we can proceed with a detailed discussion of your requirements.
What is your advantage?
With 19 years of manufacturing experience, we have established long-term partnerships with leading global technology brands.
