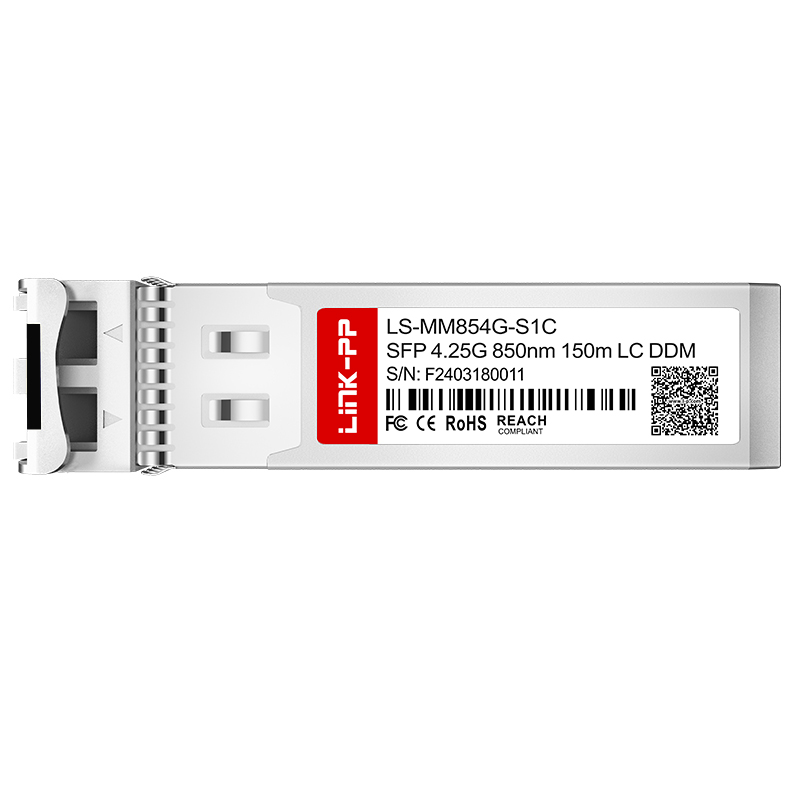

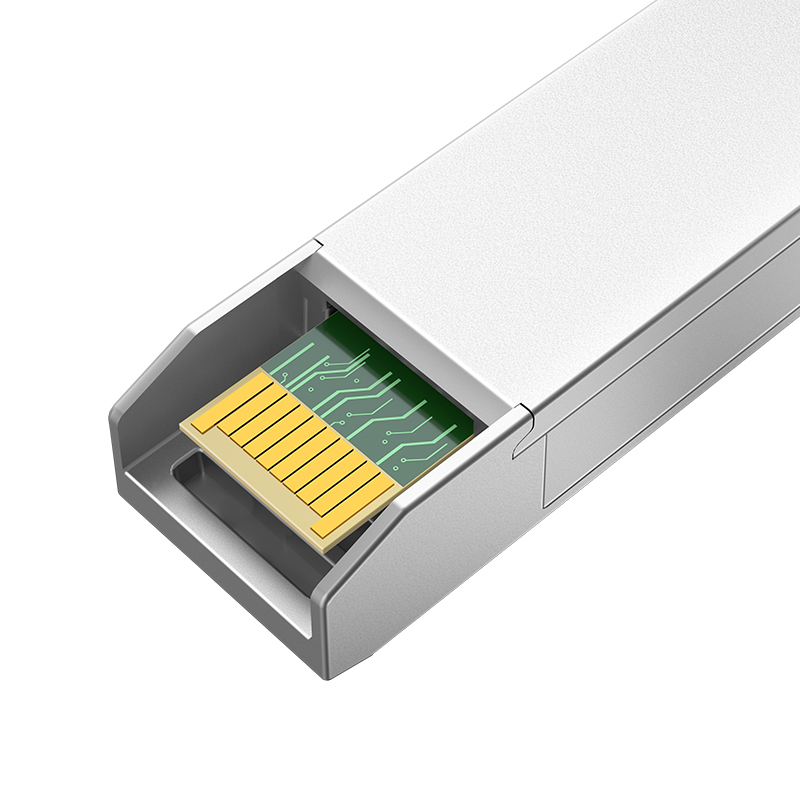

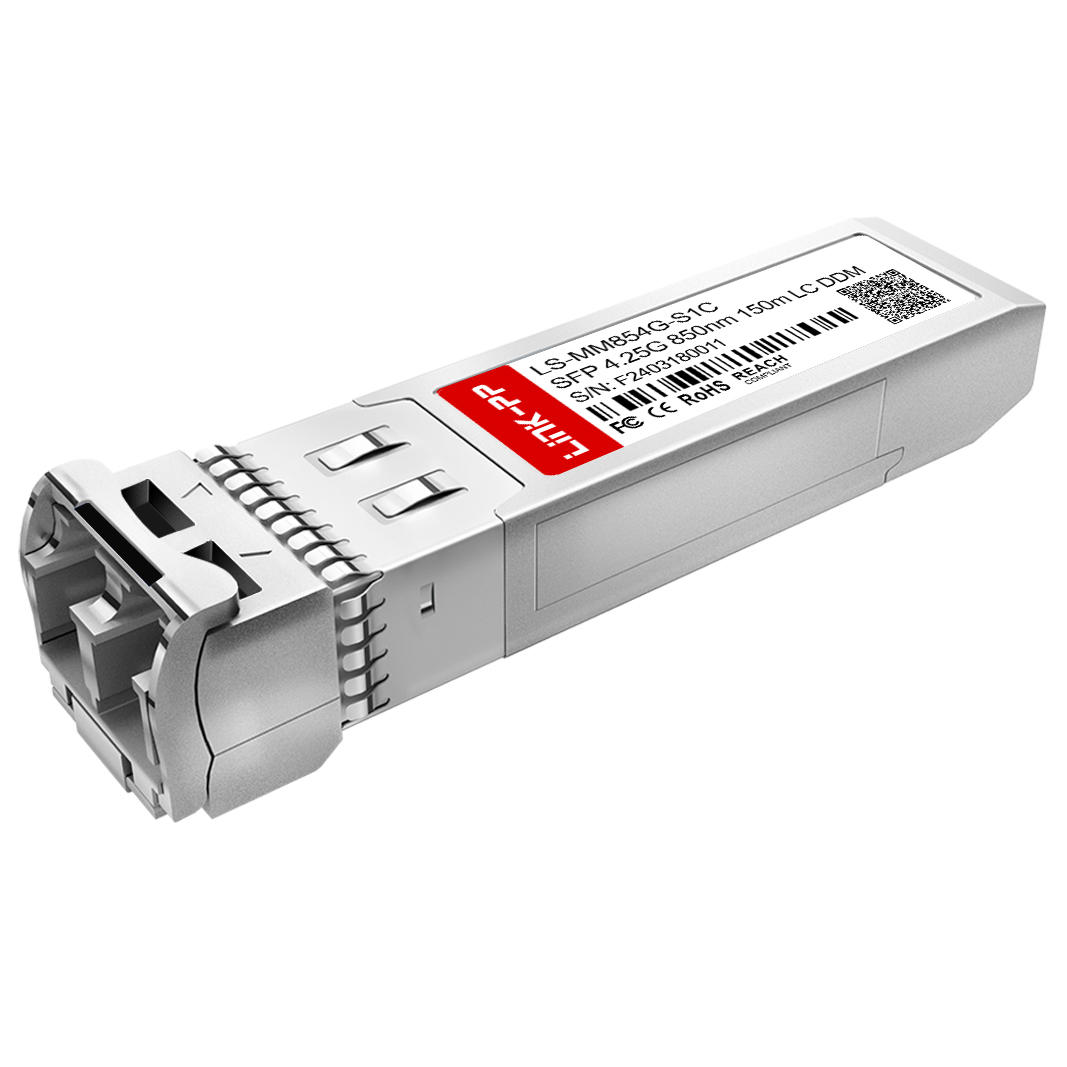

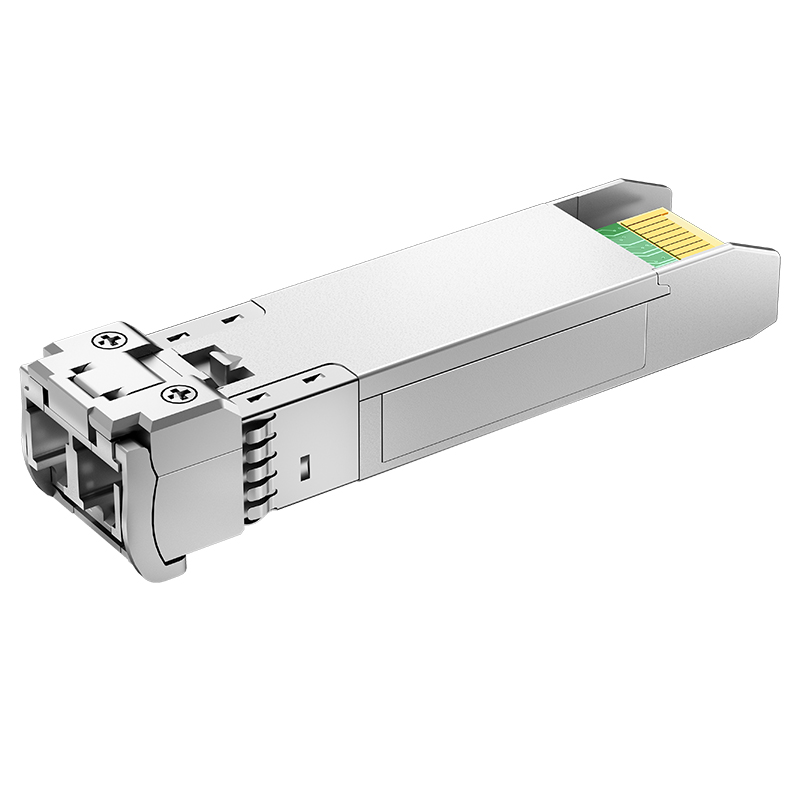

Multi Mode SFP 4G Fibre Channel 850nm 150m MMF LC Optical Transceiver Module
| Form Factor |
SFP |
| Max Data Rate |
4.25Gbps |
| Wavelength |
850nm |
| Max Cable Distance |
150m |
| Connector |
Duplex LC |
| Media |
MMF |
| Transmitter Type |
VCSEL |
| Receiver Type |
PIN |
| TX Power |
-9 ~ 0dBm |
| Receiver Sensitivity |
< -20dBm |
| EMC (Electro Magnetic Compatibility) |
Supported |
| DDM/DOM |
Supported |
| Protocols |
MSA Compliant |
| Temperature Range |
0 to 70°C / -40 to 85°C |
| Warranty |
5 Years |
| Sample |
Available |
VIEW OUR SOLUTIONS
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
Provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Support Full Range Of 4.25G SFP
| Part Number |
Data Rate |
Wavelength |
Distance |
Media |
DDM |
| LS-MM854G-S1C |
4.25Gbps |
850nm |
150m |
Multi-mode |
Yes |
| LS-MM852G-S3C |
4.25Gbps |
850nm |
300m |
Multi-mode |
Yes |
| LS-MM854G-S5C |
4.25Gbps |
850nm |
500m |
Multi-mode |
Yes |
| LS-SM314G-02C |
4.25Gbps |
1310nm |
2km |
Single Mode |
Yes |
| LS-SM314G-04C |
4.25Gbps |
1310nm |
4km |
Single Mode |
Yes |
| LS-SM314G-10C |
4.25Gbps |
1310nm |
10km |
Single Mode |
Yes |
| LS-SM314G-40C |
4.25Gbps |
1310nm |
40km |
Single Mode |
Yes |
| LS-SM554G-40C |
4.25Gbps |
1550nm |
40km |
Single Mode |
Yes |
Applications & Network Solutions
Can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
To meet the demand for mass data transmission in data centers, a series of high-speed optical modules with product rates ranging from 10G to 800G has been developed, providing high-quality optical interconnection solutions for data centers.
Provides high reliability and performance products with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Aimed at global communication network constructors, provides FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, the optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Related Products SFP Cage
Why Choose Us
Profile
A specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROHS, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Established in 1997, with about 2000 employees at present. With the abundant production capacity of 3000K per month, we are able to deliver products within a short time.
In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, products are designed, manufactured, and sold worldwide.
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and related communication modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs will be covered by the buyer.
What is your delivery time?
Ready items are shipped immediately from stock, while mass production orders typically require 15 to 30 days.
What after-sales service do you offer?
We offer a one-year warranty period and provide 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your detailed requirements and specifications to us for further discussion.
What is your main advantage?
We have over 19 years of production experience and have partnered with major global industry leaders for many years.
