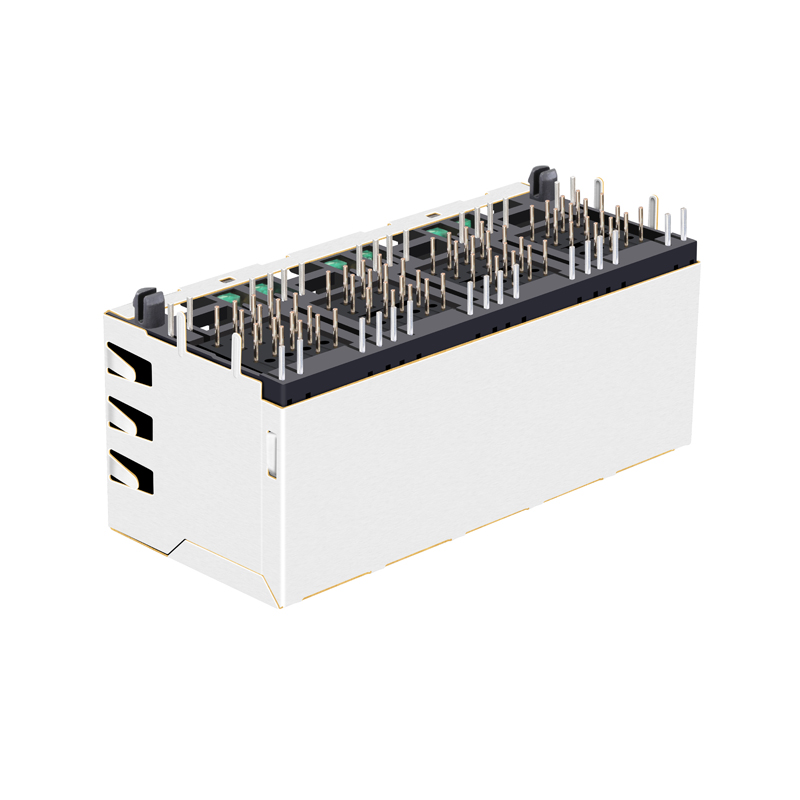

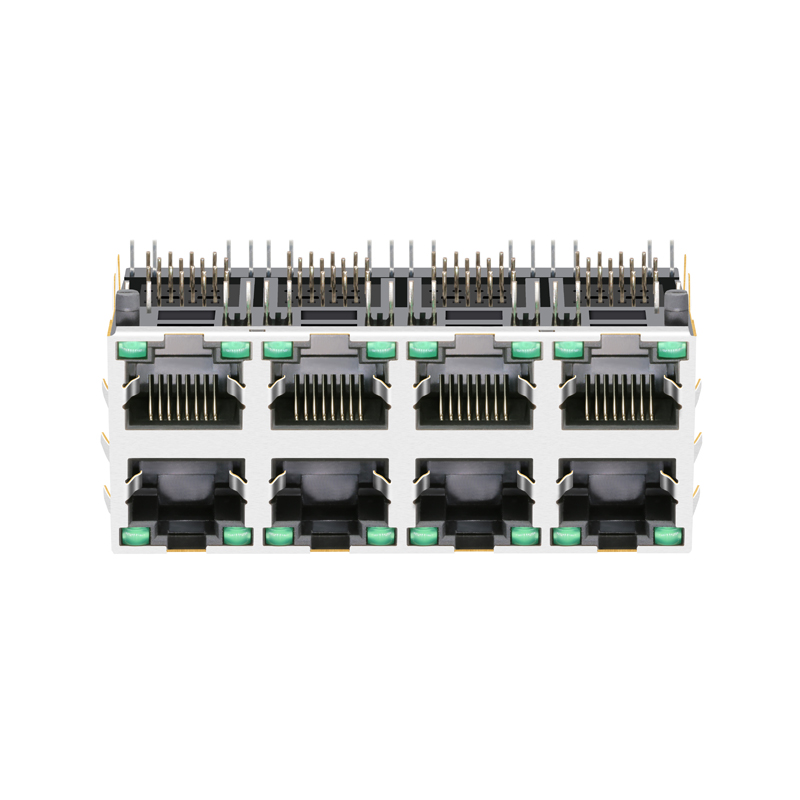

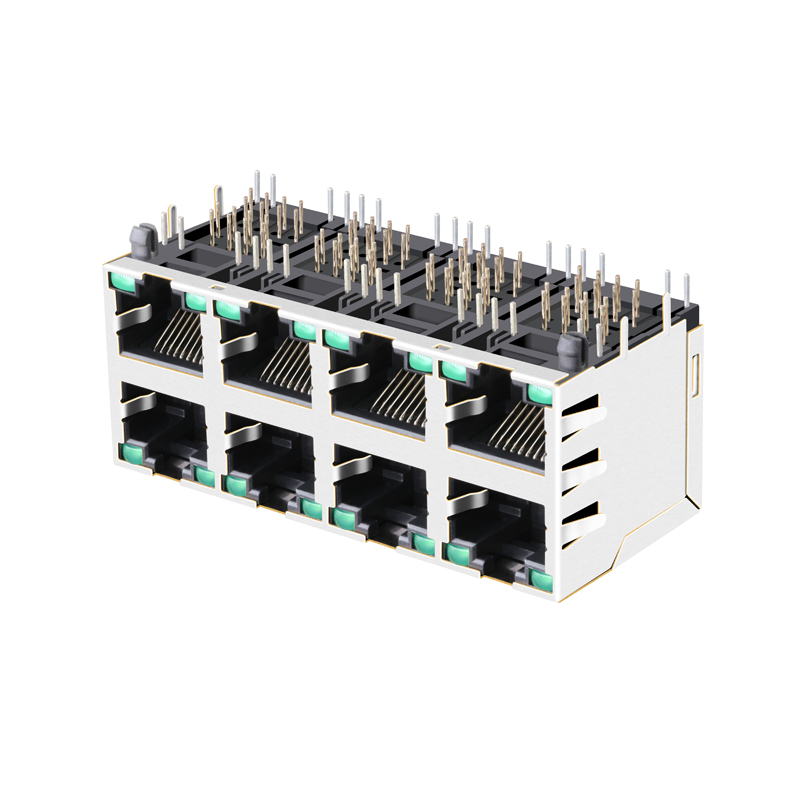

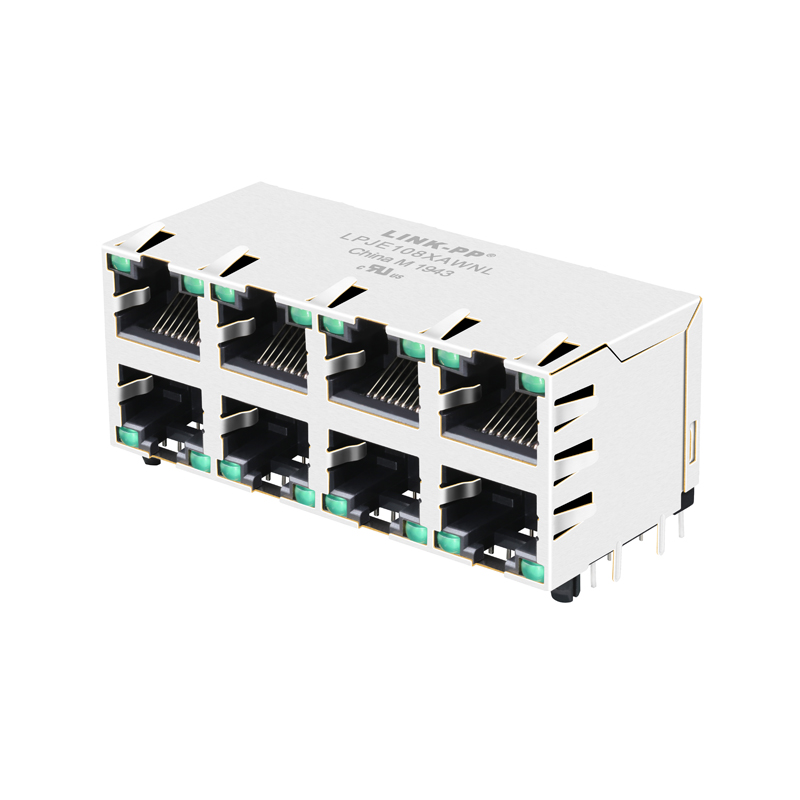

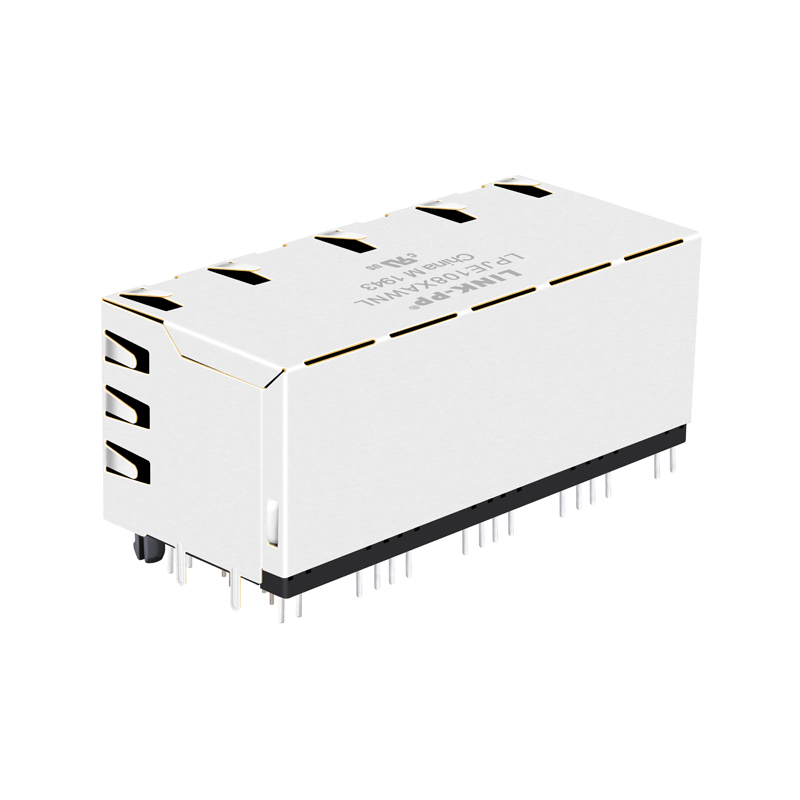

RJSAE-5385-08 withoout Transformer Shielded 2X4 Port RJ45 Modular Jack

1 / 5

RJSAE-5385-08 withoout Transformer Shielded 2X4 Port RJ45 Modular Jack

Send Inquiry

Product Description

RJSAE-5385-08 Without Transformer Shielded 2X4 Port RJ45 Modular Jack

Products Description

Item	RJ45 Female Connector
Compatible With	RJSAE-5385-08
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	2x4 Port
Speed	Without Magnetics
Latch	Down/Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With
LED Option	Green/Green
PCB	FR4
PCB Retaining Post	T POST
Temperature	0℃ TO 70℃/-40℃ TO 85℃
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C
