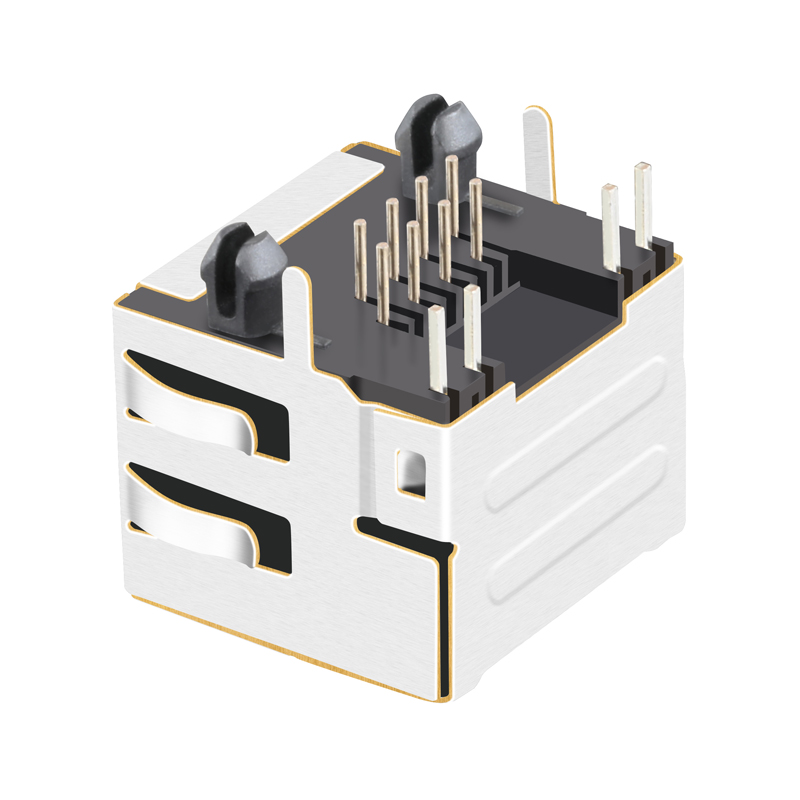

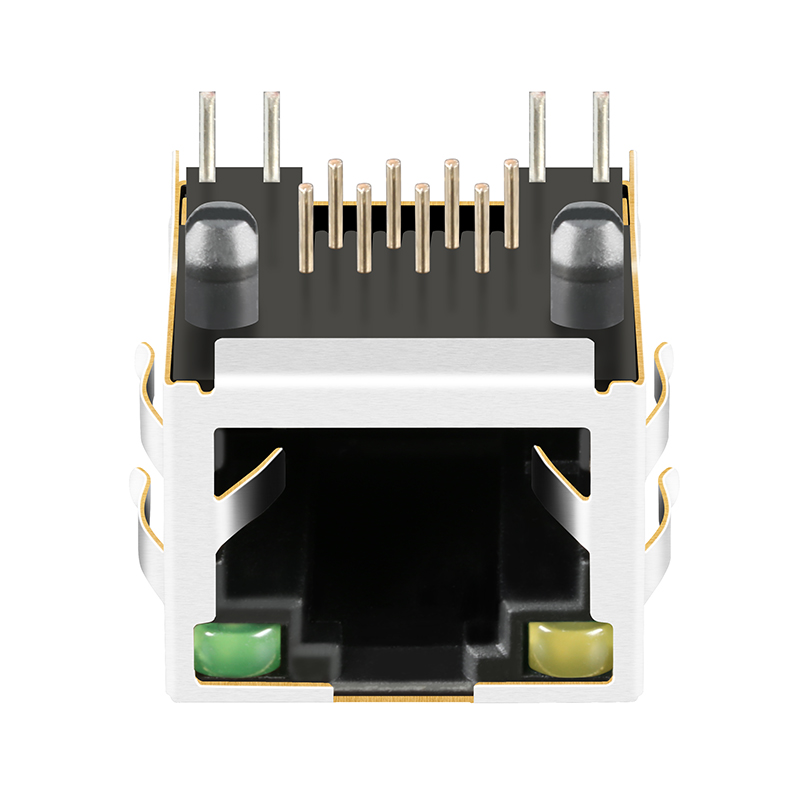

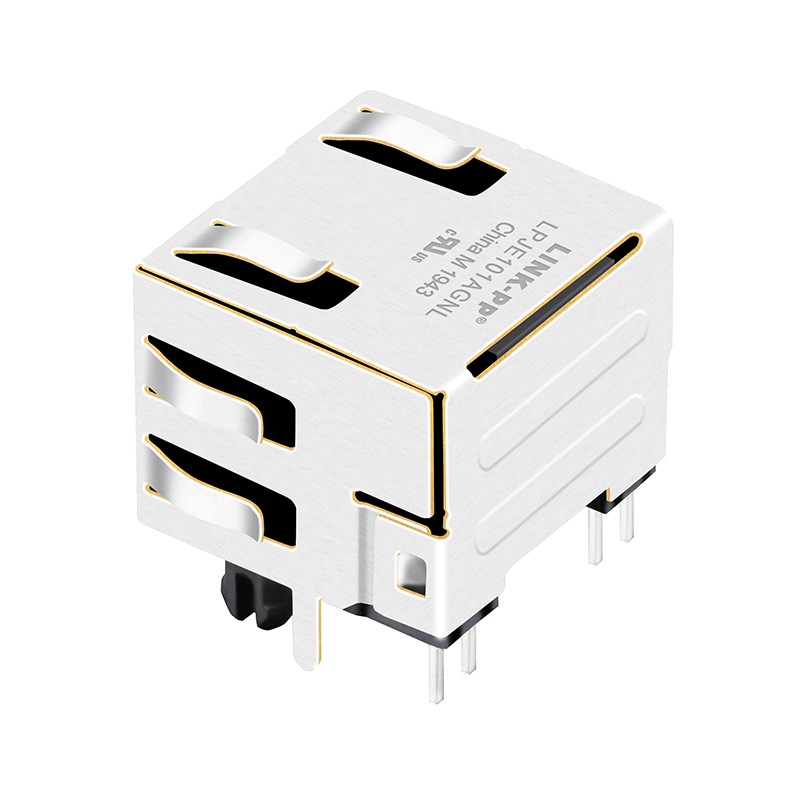

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
1 / 5
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

Send Inquiry

Product Description

Product Description

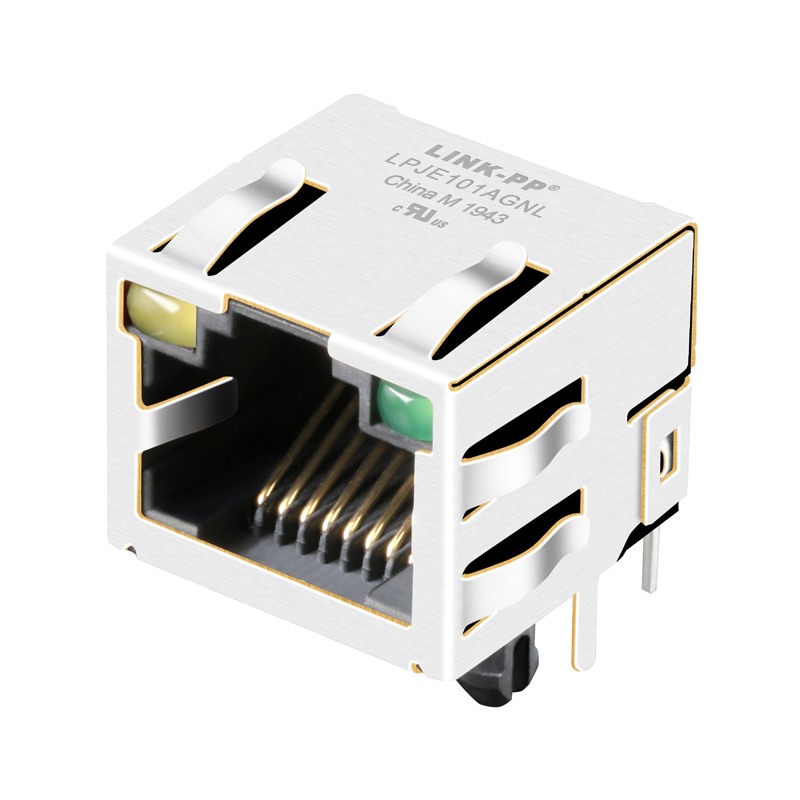

Product Image 1

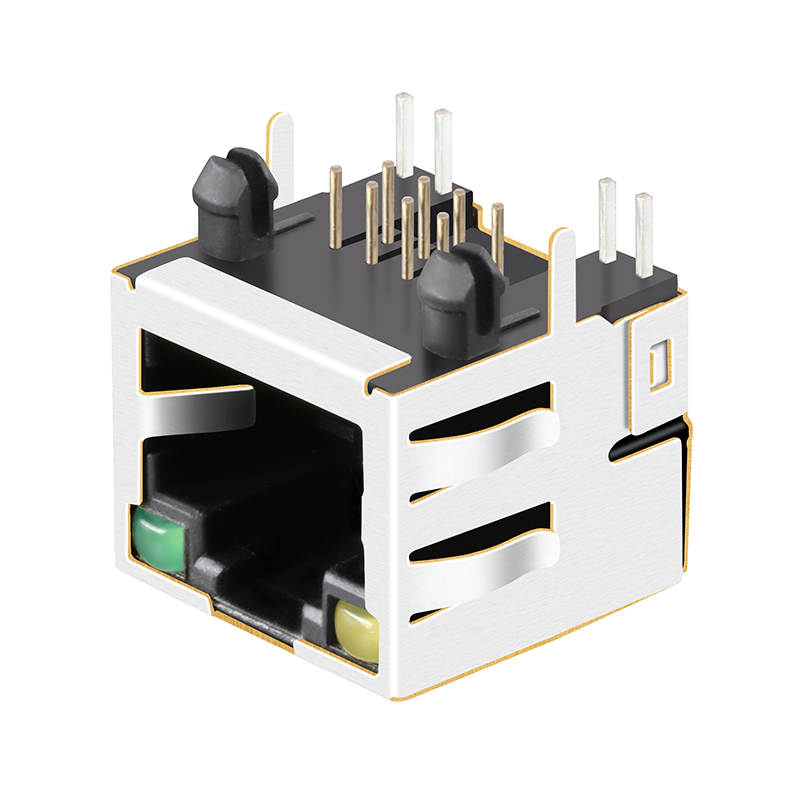

Product Image 2
Specification
Item Value
Model Number LPJE101AGNL
Part Status Active
Connector Type RJ45
Applications-Lan -
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Number of Cores per Jack -
Shielding Shielded
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Packing & Delivery

The Part Number package: 100 pcs in 1 tray, 3000 tray in 1 carton, which is 54.5*28.5*27cm, 13.1KGS (3000pcs) of each carton.

Packing Image
Product details & characteristics
Profile Image 1
Profile Image 2
Profile Image 3
Profile Image 4
Profile Image 5
Profile Image 6
Profile Image 7
Profile Image 8
Characteristics
  • RJ45 Connector with integrated transformer / common mode choke
  • Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
  • Available in SMT, THT and THT with USB
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
  • HPLE products: Improved Common Mode Rejection due to additional NiZn cores
Frequently Asked Questions
What products are available in your catalog?
We offer a wide range of network components, including RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
How is product quality guaranteed?
We maintain strict quality control by executing a comprehensive pre-production sample evaluation prior to mass production, followed by a final inspection before shipment.
What are the main features of the RJ45 Connectors?
Our RJ45 Connectors are designed with integrated transformers/common mode chokes, supporting Power over Ethernet (PoE) up to 50 Watts and transfer speeds up to 10 Gbit/s. They are available in SMT, THT, and THT with USB.
What industry standards do the products comply with?
Our products strictly comply with various networking standards, including IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt.
What delivery terms and transaction currencies are accepted?
We accept delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES. Transaction currencies accepted include USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF.
What payment options are supported?
We support diverse payment options including T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.
