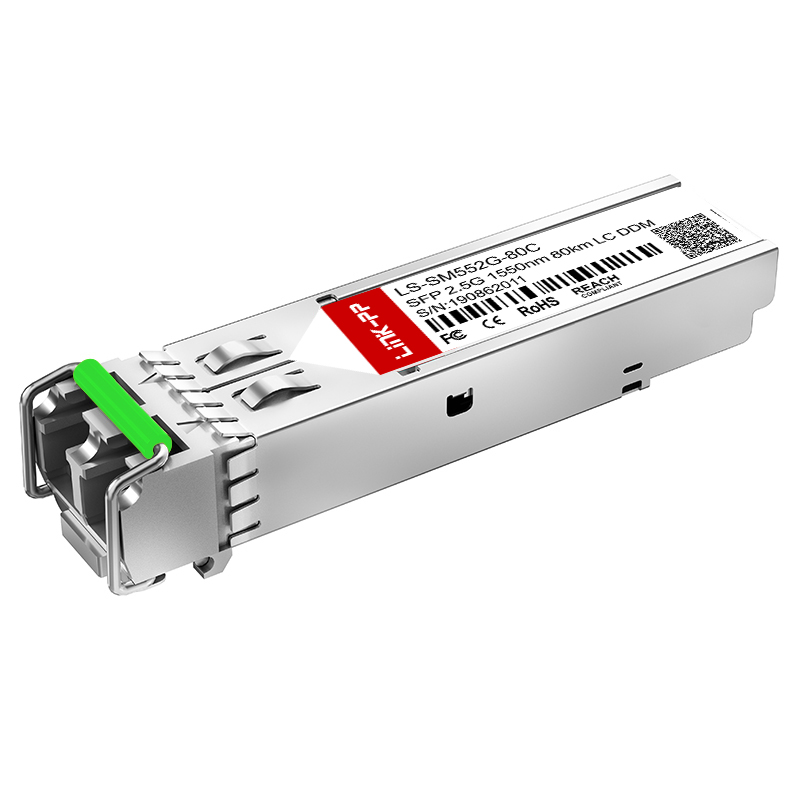

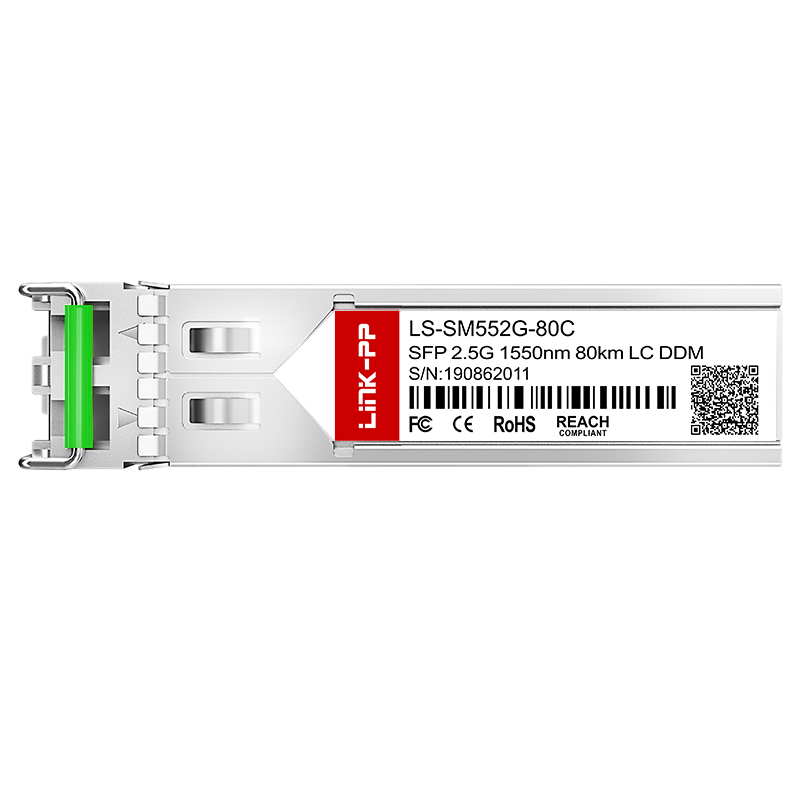

Single Mode SFP 2.5G 1550nm 80km SMF Dual LC Optic Transceiver Module
| Specification Parameter |
Details |
| Part No. |
LS-SM552G-80C |
| Form Factor |
SFP |
| Max Data Rate |
2.5Gbps |
| Wavelength |
1550nm |
| Max Cable Distance |
80km |
| Connector |
Duplex LC |
| Media |
SMF |
| Transmitter Type |
DFB |
| Receiver Type |
PIN |
| TX Power |
-2 ~ 3dBm |
| Receiver Sensitivity |
< -28dBm |
| EMC (Electro Magnetic Compatibility) |
Supported |
| DDM/DOM |
Supported |
| Protocols |
MSA Compliant |
| Temperature Range |
0 to 70°C / -40 to 85°C |
| Warranty |
5 Years |
| Sample |
Available |
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Support Full Range Of 2.5G SFP
| Part Number |
Data Rate |
Wavelength |
Distance |
Media |
DDM |
| LS-MM852G-S3C |
2.5Gbps |
850nm |
300m |
Multi-mode |
Yes |
| LS-MM852G-S5C |
2.5Gbps |
850nm |
550m |
Multi-mode |
Yes |
| LS-SM312G-02C |
2.5Gbps |
1310nm |
2km |
Single Mode |
Yes |
| LS-SM312G-10C |
2.5Gbps |
1310nm |
10km |
Single Mode |
Yes |
| LS-SM312G-15C |
2.5Gbps |
1310nm |
15km |
Single Mode |
Yes |
| LS-SM312G-20C |
2.5Gbps |
1310nm |
20km |
Single Mode |
Yes |
| LS-SM552G-20C |
2.5Gbps |
1550nm |
20km |
Single Mode |
Yes |
| LS-SM312G-40C |
2.5Gbps |
1310nm |
40km |
Single Mode |
Yes |
| LS-SM552G-40C |
2.5Gbps |
1550nm |
40km |
Single Mode |
Yes |
| LS-SM552G-80C |
2.5Gbps |
1550nm |
80km |
Single Mode |
Yes |
Applications & Scenarios
Optical Transport Networks
We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Providing high reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
