High-speed connectivity systems engineered for minimal height envelopes, harsh electromagnetic environments, and strict PCB layouts.
As modern telecommunications equipment, edge AI servers, and industrial compute cards scale down in physical thickness, standard RJ45 connector profiles limit further structural refinement. Standard modular jacks present a vertical clearance ranging from 13.5mm to 16.5mm off the printed circuit board (PCB). By contrast, Low Profile Ethernet Jacks minimize this height profile down to 8.0mm to 11.5mm, allowing physical integration into dense PCIe expansion brackets, ultra-thin industrial gateways, and low-profile blade switches.
Implementing a low profile design requires an complete reconfiguration of the internal contact springs, LED paths, and magnetic modules. Standard designs rely on vertical compliance loops within the wire leads. Low-profile engineering repositions the internal modular contacts at optimized pitch angles, reducing structural height while preserving the physical standard compatibility outlined in IEC 60603-7.
To support high-reliability environments, OEM customizations of low profile Ethernet jacks focus on mechanical assembly variants. Options include Surface Mount Technology (SMT) configurations that optimize board routing on multi-layer PCBs, and Through-Hole Technology (THT) variants designed to withstand heavy physical strain in industrial machinery. Designers must match these mechanical requirements with structural limits like coplanarity, solder joint thickness, and overall physical dimensions.
Compromising physical height inside an Ethernet interface must not compromise signal integrity. Low profile Ethernet jacks often place the data paths closer to the PCB ground plane, which increases parasitic capacitance and susceptability to high-frequency crosstalk. Lumopt’s custom design process utilizes advanced 3D electromagnetic simulators to tune the contact geometries, ensuring compliance with Cat5e, Cat6, and Cat6a insertion loss limits.
Effective electromagnetic interference (EMI) containment is achieved through wrap-around brass shields electroplated with bright nickel or tin. The inclusion of multi-point EMI grounding tabs (shield fingers) creates low-impedance contact paths between the connector shield and the chassis metal panel. This shielding system shunts high-frequency noise from internal circuitry and external ambient interference to ground, keeping common-mode noise levels within limits defined by FCC Part 15 Class B and EN 55032 standards.
For applications where PCB space constraints prevent routing discrete magnetics, Lumopt offers low profile RJ45 connectors with built-in transformers. These integrated magnetics (MagJacks) provide high-voltage isolation (1.5kV AC dielectric withstanding voltage) and signal conditioning. This design protects sensitive transceivers from transients, electrostatic discharge (ESD), and common-mode noise in a compact mechanical profile.
Under strict implementation of ISO9001 and IATF16949 quality standards, our modern factory utilizes high-precision automation and comprehensive electrical testing to ensure zero-defect shipment.
The convergence of 5G, distributed edge computing, and AI accelerators is shifting inter-system data rates from 1Gbps up to 10Gbps copper interfaces (10G Base-T). To maintain these high frequencies without increasing physical size, low-profile Ethernet ports must minimize high-speed noise. This requires tighter routing tolerances, low-dielectric constant (Dk) materials, and integrated common-mode chokes.
Increasing the frequency of standard RJ45 connections up to 500MHz requires advanced mechanical layouts. Future low-profile connectors will feature integrated multi-stage low-pass filtering modules inside the metal shield case. These modules suppress unwanted high-frequency harmonics before they reach the differential transceiver, ensuring clean data transmission at higher speeds.
Delivering PoE+ and PoE++ (up to 90W) via low-profile jacks requires careful thermal management. The high currents generate internal heat within the fine wire coils. Lumopt addresses this by using heat-resistant wire insulation and thermal dissipation tabs, ensuring stable operation under high electrical load.
Providing specialized physical interfaces that meet the demanding environmental, mechanical, and electrical requirements of global industries.
Modern data centers utilize short, low-profile server designs to maximize compute density. Low-profile connectors fit within the height limits of standardized PCIe form factors, allowing network interface cards (NICs) to deliver multiple 10G/25G copper ports on the rear I/O panel.
Automotive computing requires physically low-profile connectors to fit within thin dashboard electronics and ADAS sensors. These components must also withstand high vibrations, wide temperature shifts, and vehicle-level EMI requirements (such as CISPR 25).
Industrial machinery often uses DIN-rail mounted controllers with very limited depth and vertical clearance. Our low-profile Ethernet jacks are designed to withstand vibration and voltage transients, ensuring reliable performance in harsh manufacturing environments.
In medical imaging and diagnostics, high voltage isolation is critical to safety. Our low-profile jacks feature built-in magnetics that provide robust electrical isolation, ensuring patient and operator safety in high-density medical equipment.
Lumopt Opto Technology Co., Ltd. (registered as Luguang Communication Technology Co., Ltd. in China) is a manufacturer and exporter specializing in high-reliability connection systems and optical modules. We specialize in custom OEM/ODM solutions, manufacturing optical transceivers spanning 10G, 25G, 100G, 400G, 800G, and 1.6T speeds, alongside high-density RJ45 magnetic connectors and discrete LAN transformers.
Our dust-free manufacturing facilities are equipped with automated production and testing systems. We perform strict quality control checks at every stage, including automatic welding, laser marking, automated high-voltage isolation checks, and comprehensive parametric testing. Lumopt provides cost-effective, high-reliability connectivity components designed for global data communication markets.
We maintain strict quality control standards to ensure our products meet international regulatory and safety requirements.
Common questions regarding the mechanical design, customization options, and manufacturing standards of our low-profile Ethernet jacks.

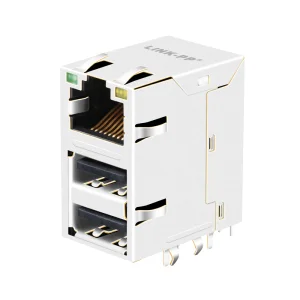

Additional high-reliability connectors and media converters designed for industrial networks, optical communications, and telecommunication systems.
