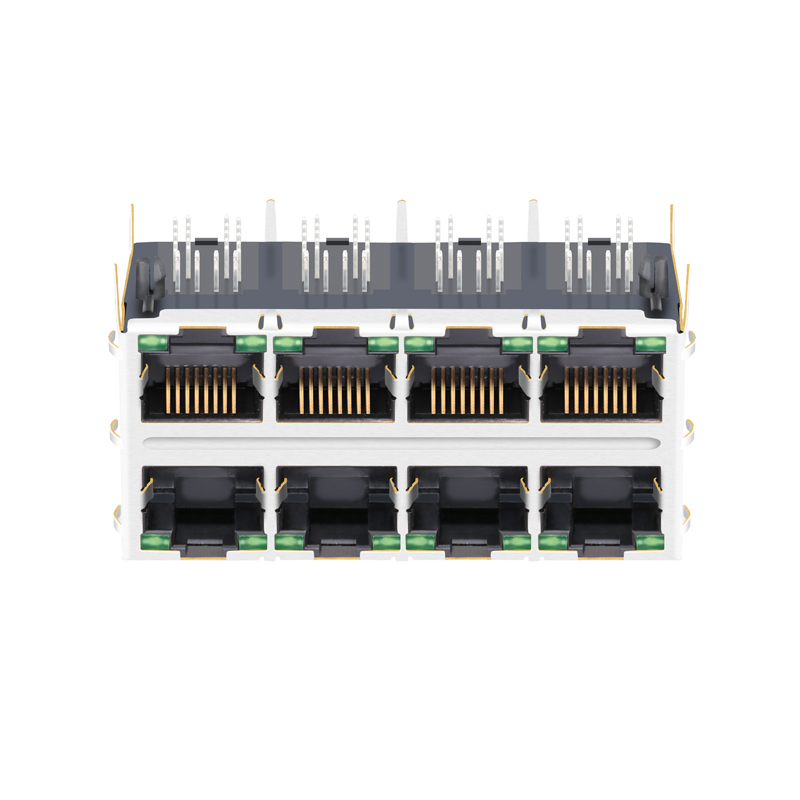

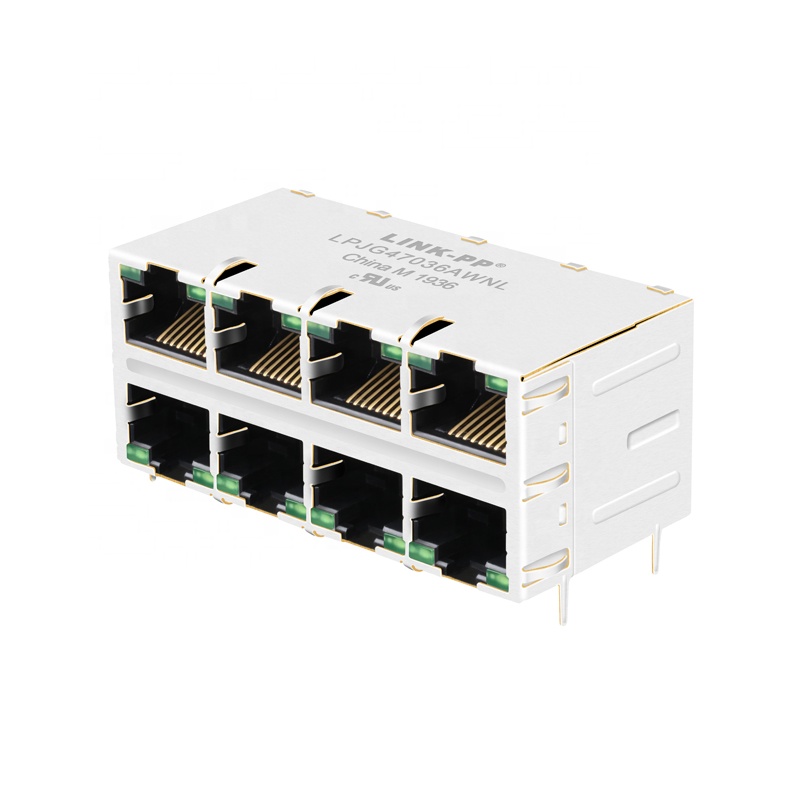

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

Send Inquiry

Product Description

Product Specifications

Part Number	LPJG47036AWNL
Application-LAN	ETHERNET(POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	8
Diodes	NO DIODES
LED Option	GREEN/GREEN
Latch	UP/DOWN
Number of Ports	2X4
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Shielding	Shielded
Speed	2.5G BASE-T
Temperature	-20~+70℃
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

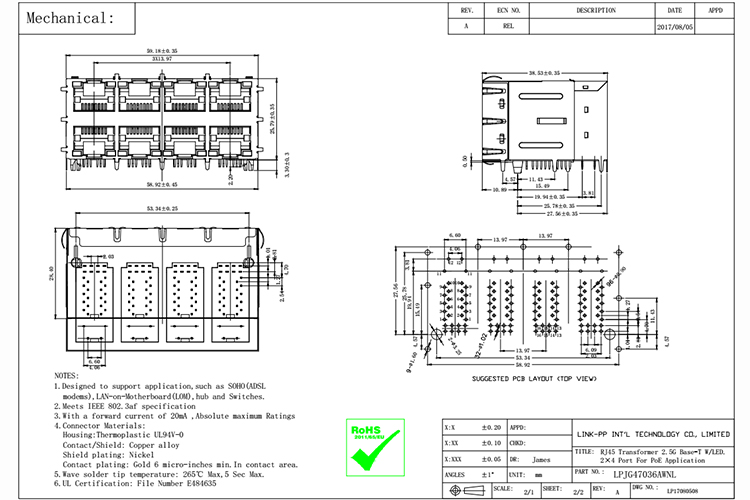

Technical Drawings & Dimensions

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

🛡️ Professional Certification

💎 100% Quality Guarantee

⚡ Competitive Price & Service

Electrical & Schematic Diagrams

Frequently Asked Questions (FAQ)

What is the data speed capability of this RJ45 connector?

This connector supports high-speed network transmissions up to 2.5G BASE-T, making it ideal for Cat5e and modern high-bandwidth Ethernet setups.

Does this RJ45 female connector support Power over Ethernet (PoE)?

Yes, it is designed for ETHERNET (PoE) applications, allowing it to efficiently handle power and data transmission simultaneously.

What are the key configurations of the ports and pins?

It features a 2x4 port structure (totaling 8 ports) with 8 cores per port. The pin mounting type is THT solder, and the entry angle is side entry.

What is the operating temperature range for this product?

The connector is designed to function reliably in temperature environments ranging from -20°C to +70°C.

Is this connector RoHS compliant and certified?

Yes, it is RoHS compliant (RoHS-5 with lead in solder exemption) and complies with key standards including ISO 9001:2008 and UL certifications.

What shielding and EMI options does this connector offer?

The connector features full shielding with built-in EMI tabs to prevent electromagnetic interference and maintain stable connection quality.
