Product Description

Product Description

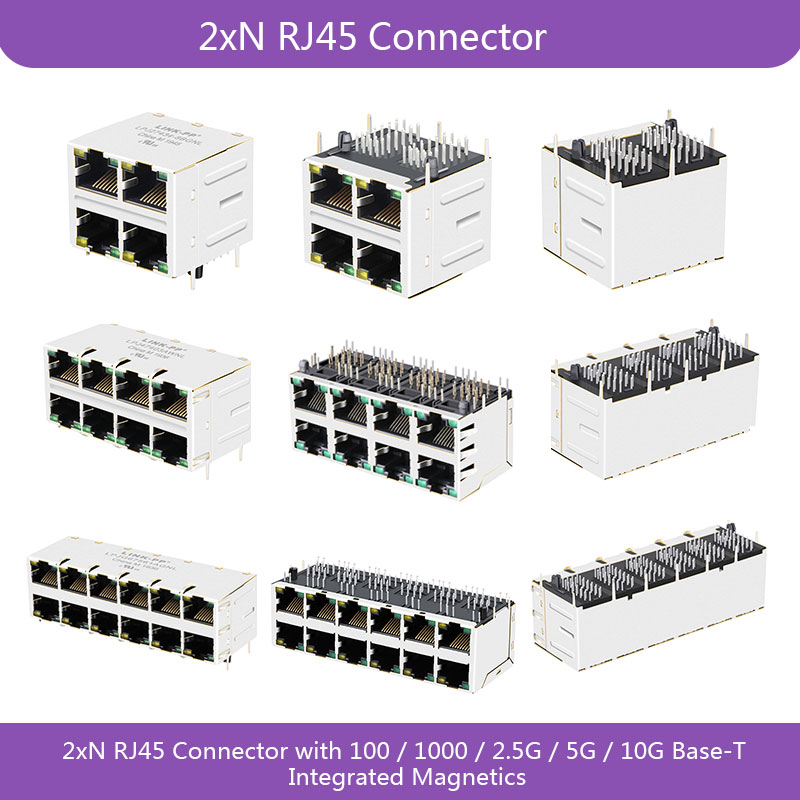

RJ45 Connector

Key Characteristics

  • RJ45 Connector with integrated transformer / common mode choke.
  • Power over Ethernet (PoE) support up to 50 Watt with speeds up to 10 Gbit/s.
  • Available in multiple mounting configurations: SMT, THT, and THT with USB.
  • Fully compliant with international standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt.
  • HPLE products: Features improved Common Mode Rejection due to additional NiZn cores.
Technical Specifications
Specification Feature Value Detail
Model Number RJ45 Filtered Connectors
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet (PoE / Non-PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4 / 6 / 8 / 12
Shielding Shielded, EMI Finger
Number of Ports 2x1, 2x2, 2x4, 2x6, 2x8 Port
Features Board Guide
Tab Direction Down / Up
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C / -40°C ~ +85°C
Packing & Delivery
Package Method
Tray
Carton Size
32 x 30 x 31 cm
G.W. / Carton
8.5 kg
Qty / Carton
1200 pcs
SPQ
50 pcs
N.W. / Piece
0.007 kg
Packaging Box Dimension
Product Showcase & Facilities
Product Facility View 1
Product Facility View 2
Product Facility View 3
Product Facility View 4
Product Facility View 5
Product Facility View 6
Product Facility View 7
Frequently Asked Questions
1. What primary product ranges are offered?
We offer a wide variety of high-performance connectors and components including RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
2. How is the product quality guaranteed?
Quality is consistently maintained by providing a pre-production sample for evaluation before mass production and conducting a rigorous final inspection on all units before shipment.
3. What technical standards do these RJ45 connectors support?
Our RJ45 connectors are fully compliant with IEEE standards, supporting IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt standards.
4. What makes these components suitable for high-performance networks?
These connectors support speeds up to 10 Gbit/s and Power over Ethernet (PoE) up to 50 Watt. Additionally, HPLE series products feature improved Common Mode Rejection through advanced NiZn cores.
5. What delivery options and payment currencies are supported?
We support diverse delivery terms (including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express) and process payments in multiple world currencies (USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF).
6. Are multiple mounting styles and configurations available?
Yes, our parts support multiple configurations including SMT, THT, and THT with USB, with custom orientation (90° Angle Right), optional LED colors, and variable port configurations (ranging from 2x1 to 2x8 ports).
