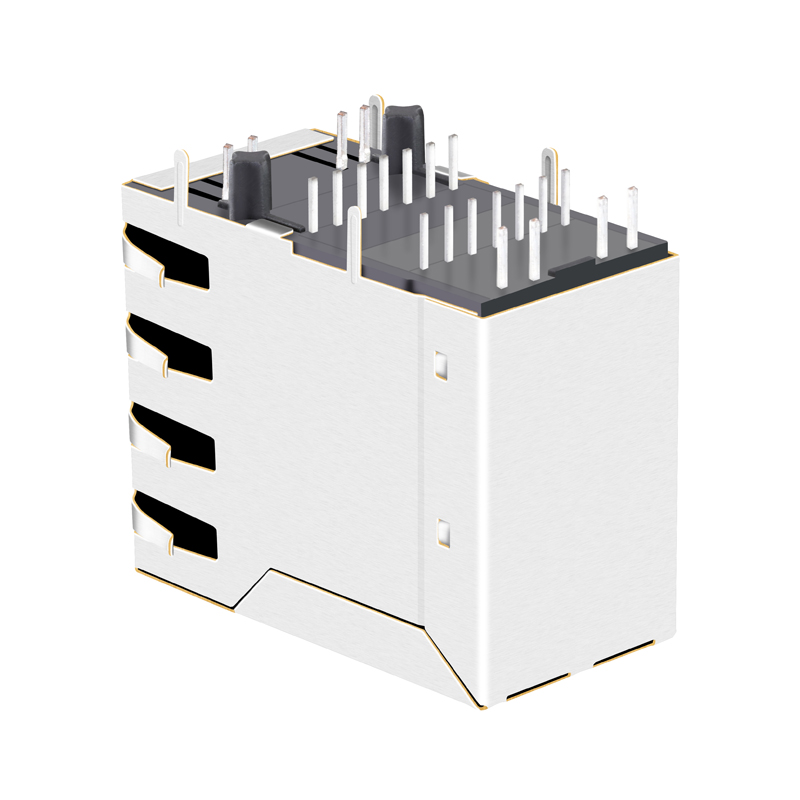

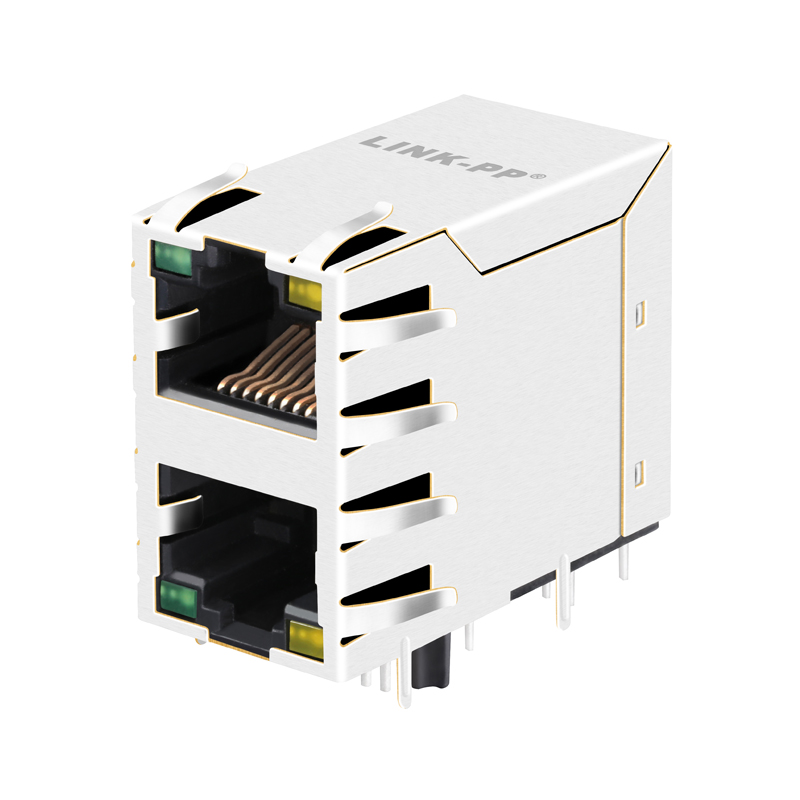

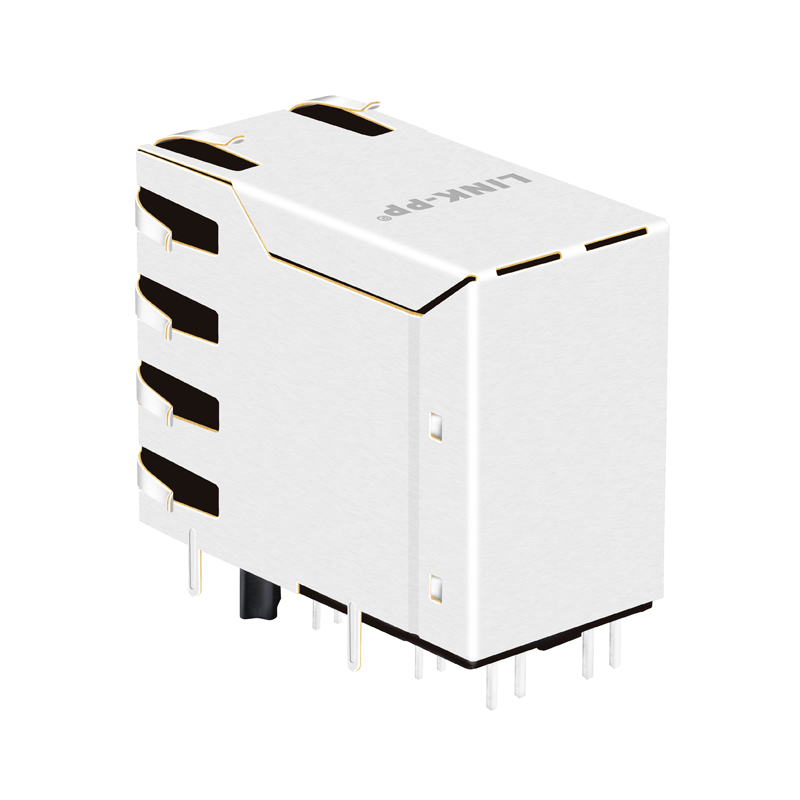

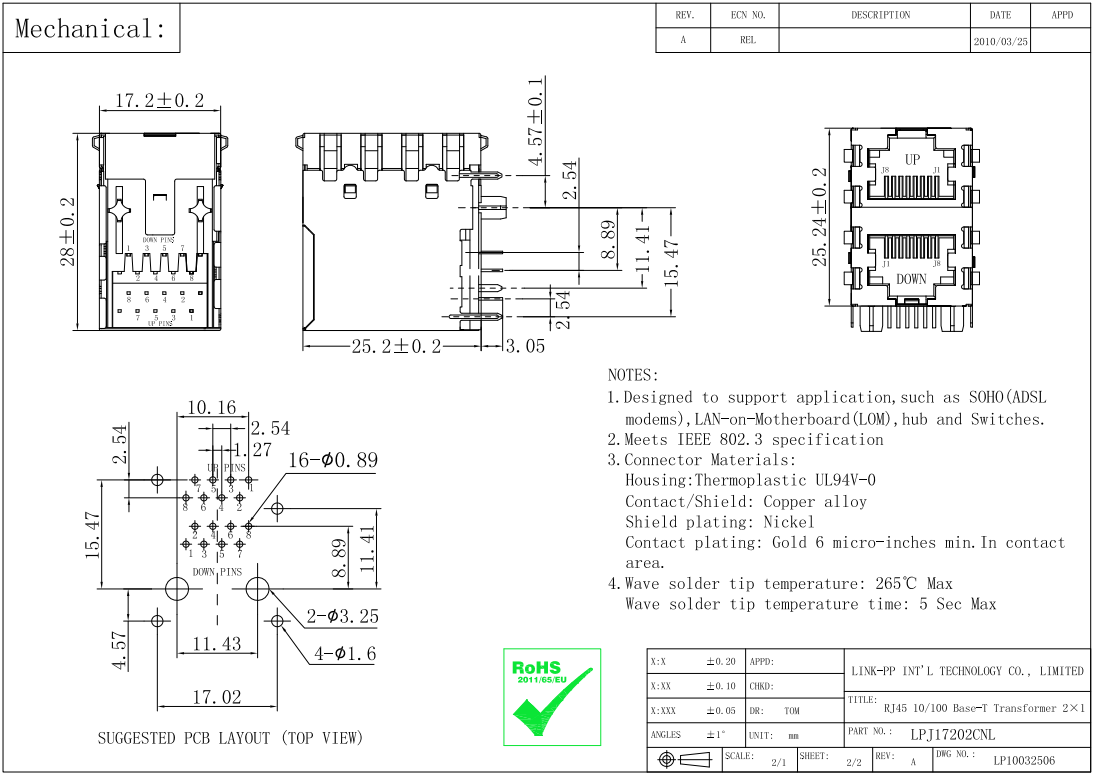

China Manufactures 2x1 Port Shielded RJ45 Modular Jack Product View China Manufactures 2x1 Port Shielded RJ45 Modular Jack Structural Diagram
Separator Banner

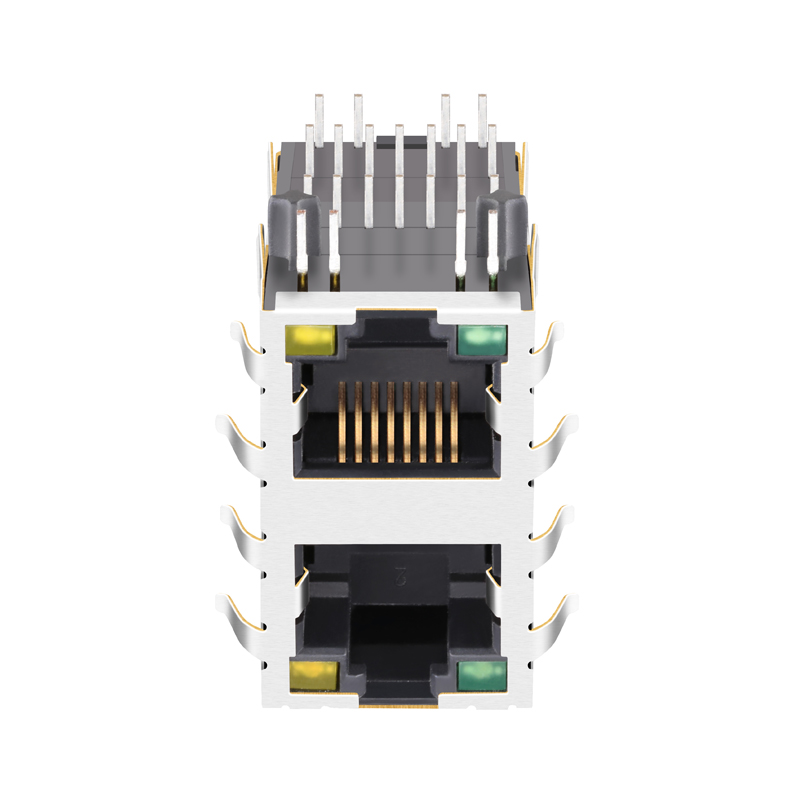

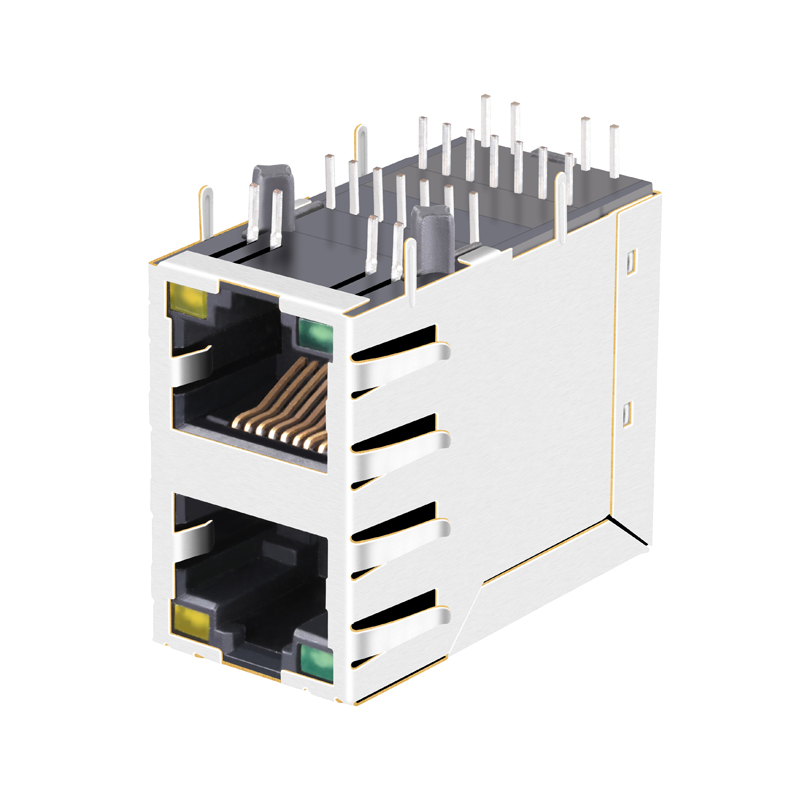

2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics, Without LED, Tab Down/Up, RoHS
Part Number LPJ17202CNL
Cross Part Number MIC24A10-0101W-LF3 / 7499051002
Application-Lan ETHERNET(Non PoE)
AutoMDIX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NO
Diodes NO DIODES
LED Option Without
Latch TAB DOWN / Up
Number of Ports 2x1 (1X1 dual stack)
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100 Base-T
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
