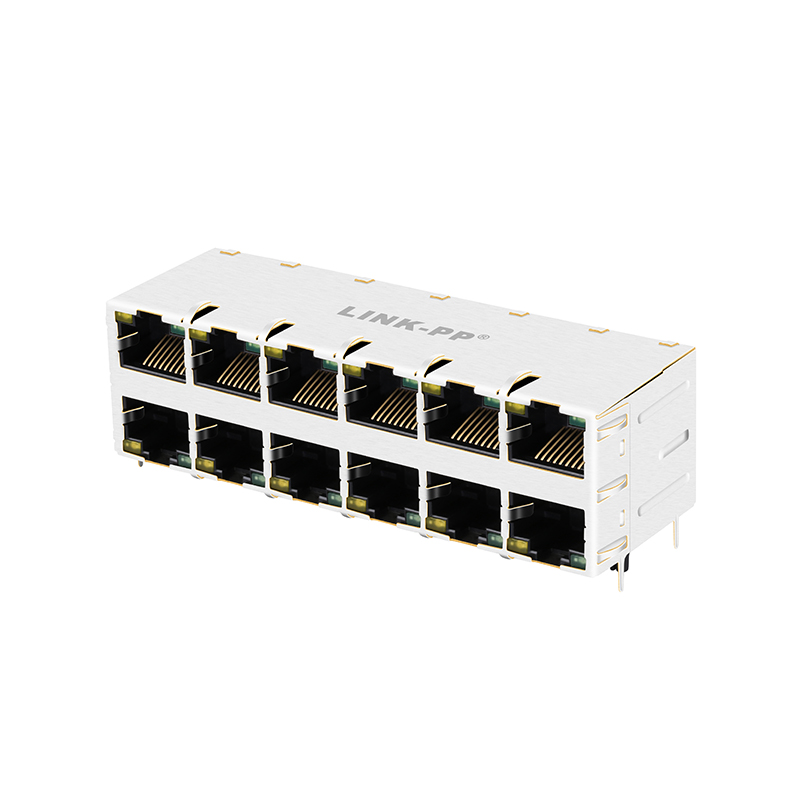

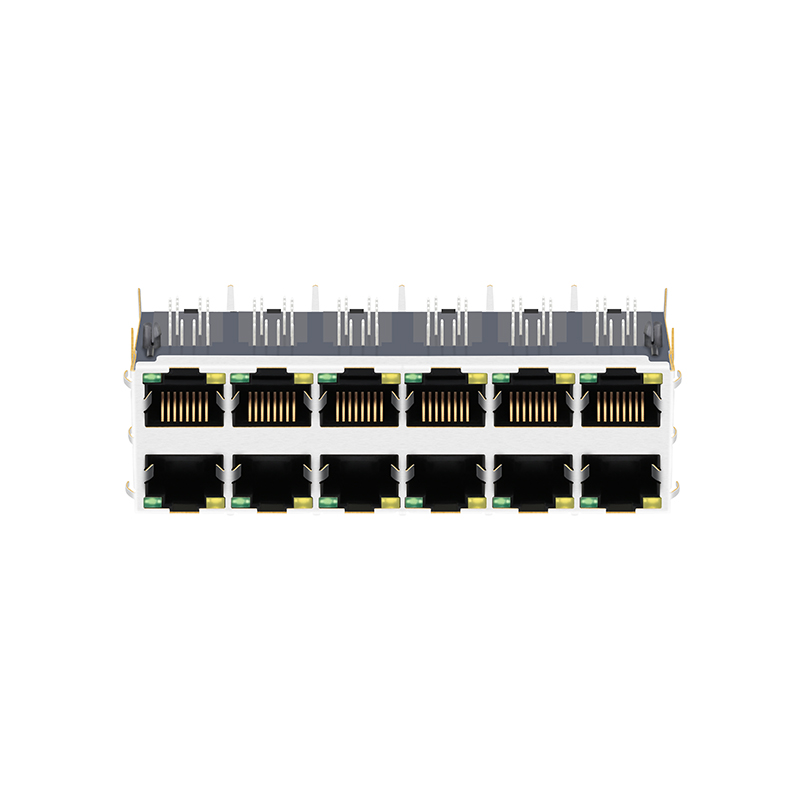

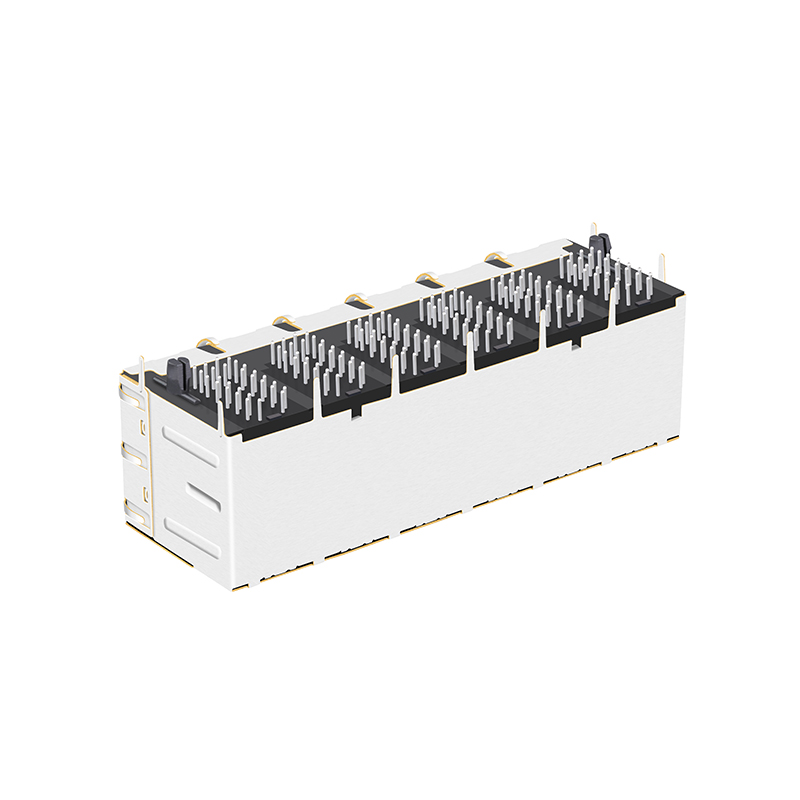

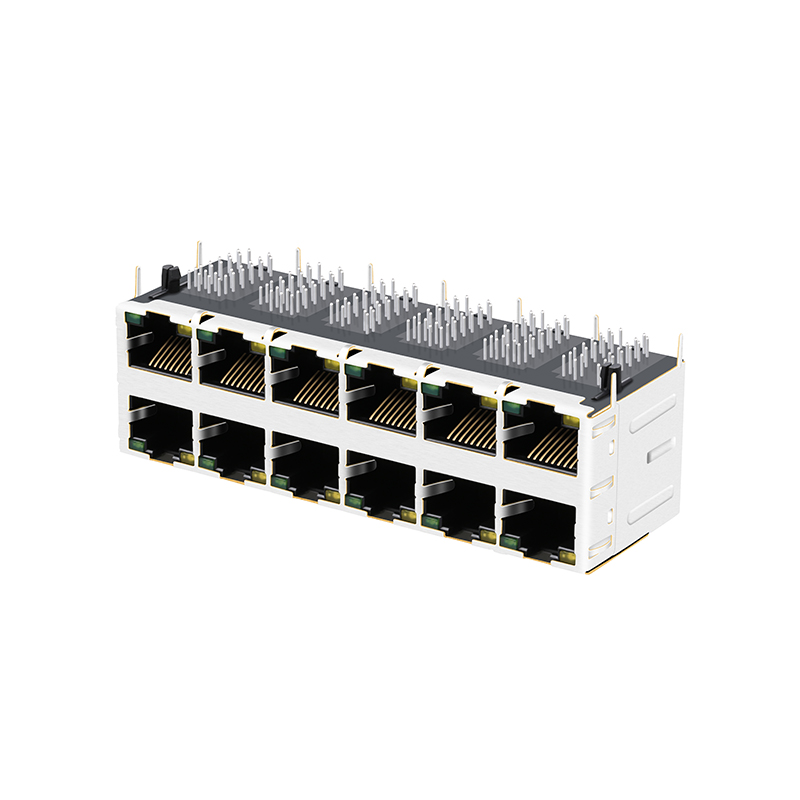

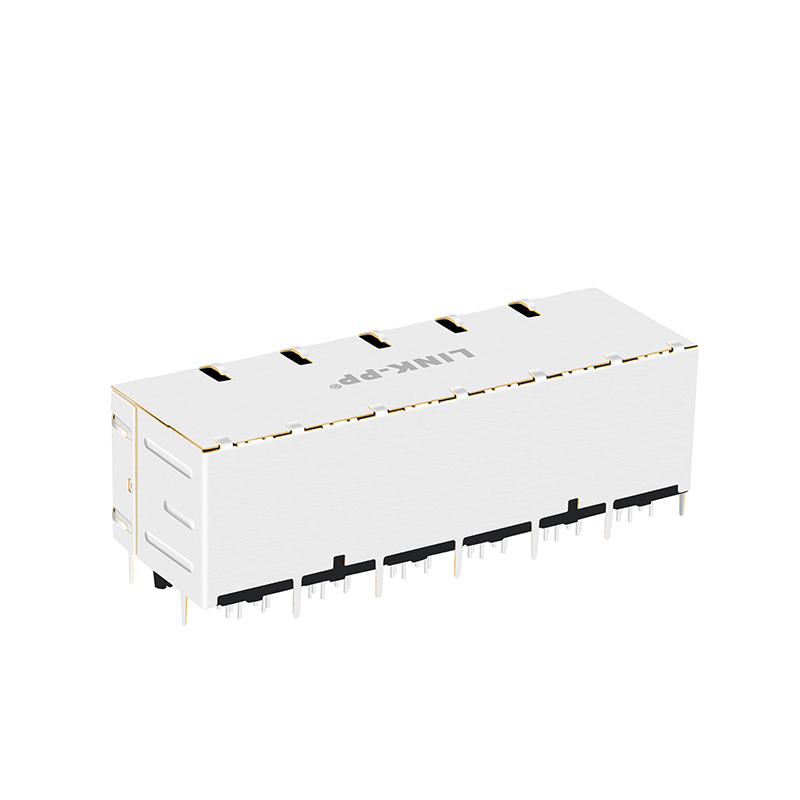

2x6 Port RJ45 Jack 8P8C Ethernet Connector (A60-262-300P562 / A60-263-300P562 / JC0-0032 / 0857190101)
Products Description
Item RJ45 Female Connector
Compatible With A60-262-300P562 A60-263-300P562 JC0-0032 0857190101
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 2x6 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Image Detail
Product Variety Overview
Technical Dimension 1 Technical Dimension 2 Schematic Diagram
Packaging Specifications Quality Inspection standard
Soldering Reflow Profile Testing Equipment
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we operate as a global supplier of magnetic telecom and networking components of OEMs, contract manufacturers and CEMs, supplying more than 10000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Factory Workshop 1 Factory Workshop 2 Assembly Line
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and more.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you are responsible for paying the shipping fee.
3. What is your delivery time?
We are ready to ship immediately for in-stock products. For mass production items, the lead time is typically 15-30 days.
4. What after-sales service can you offer?
We offer a one-year warranty period and provide 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so we can proceed with a detailed discussion regarding your custom requirements.
6. What is your competitive advantage?
We bring over 19 years of dedicated production experience and have been a trusted partner to major global technology brands for many years.
