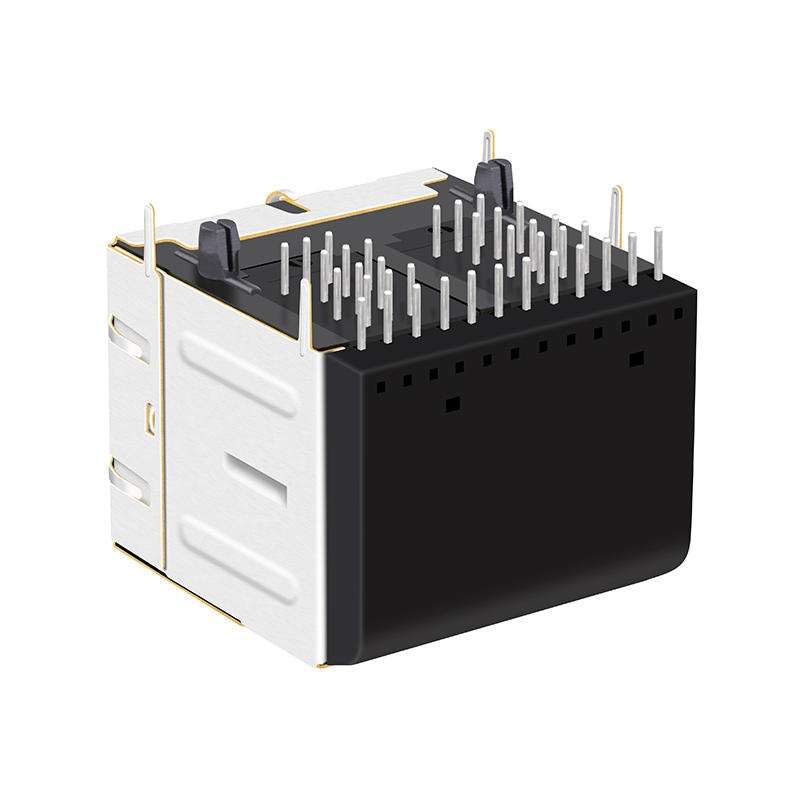

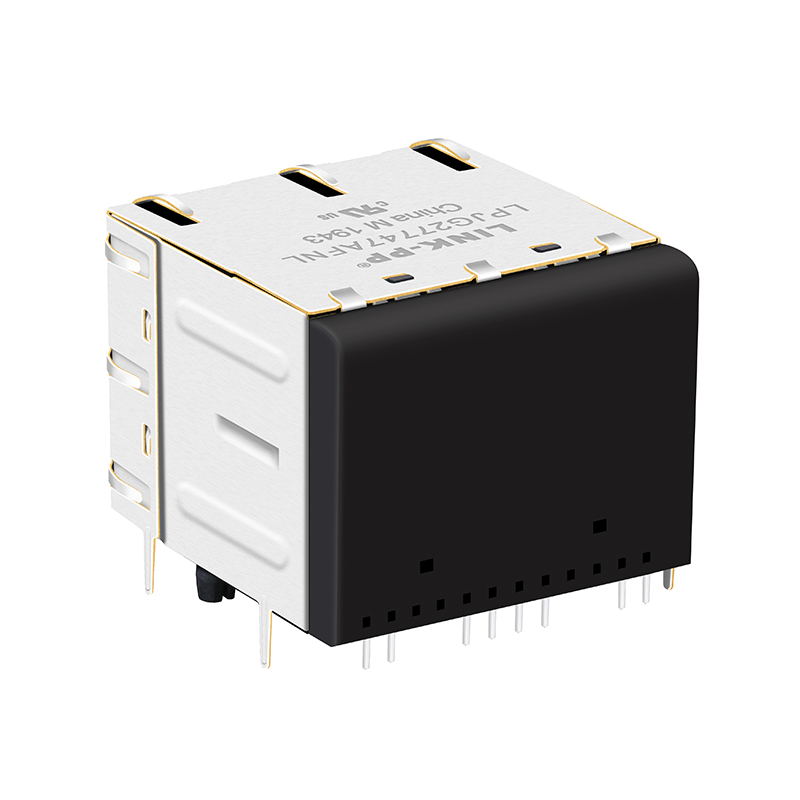

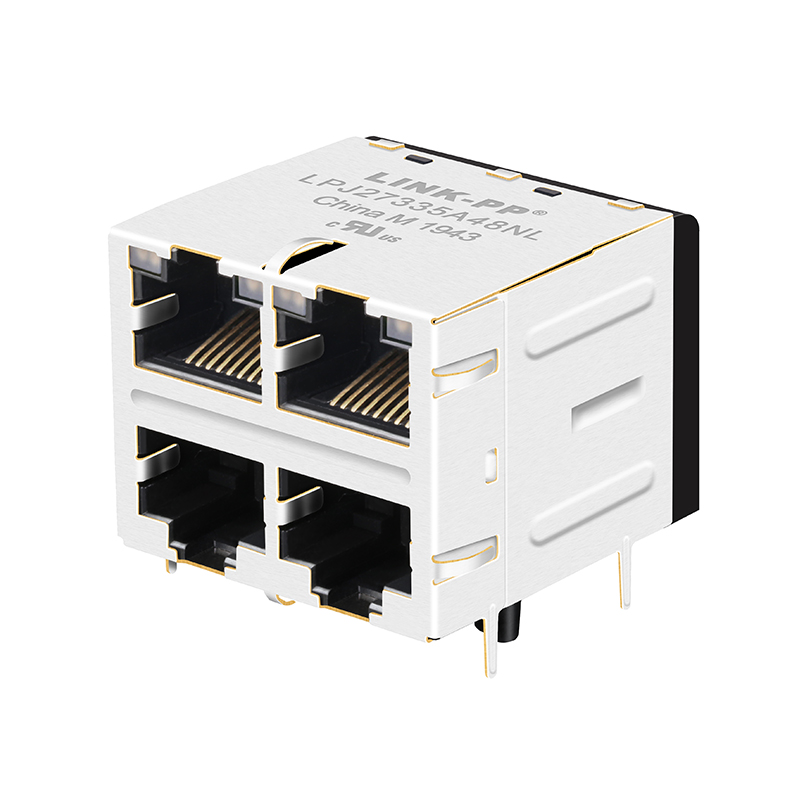

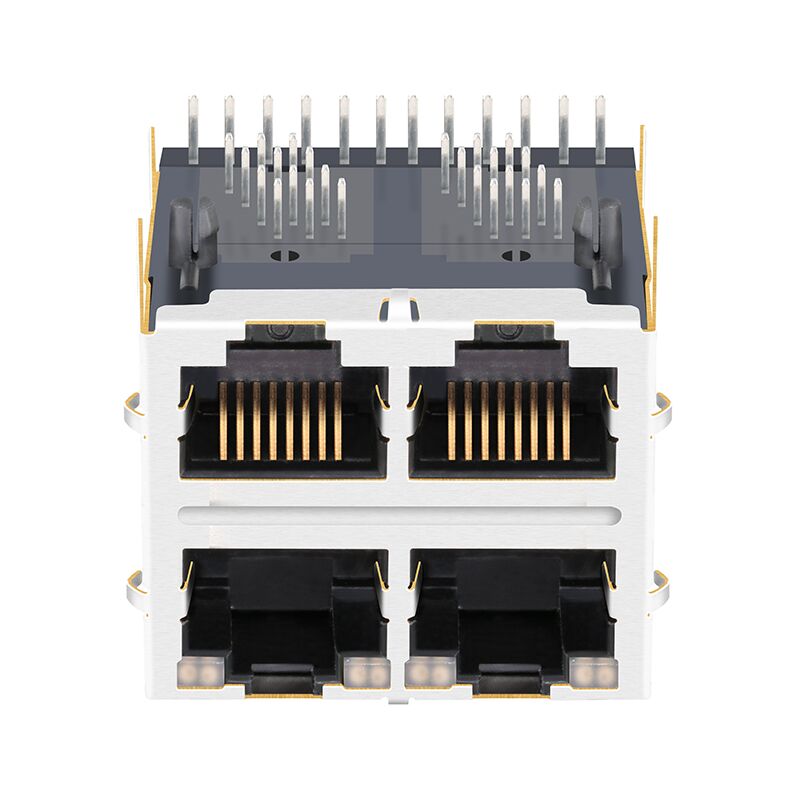

JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
1 / 5
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks

JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks

Send Inquiry

Product Description

Specifications

Item Value
Part Number LPJ27335A48NL
Cross Part Number JX20-0252NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green&Orange/Green&Orange Led
Number of Cores per Jack 4
Shielding Shielded, Emi Finger
Number of Ports 2x2 Port
Features Board Guide
Tab Direction Both
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C

Product Gallery

Product Image 1

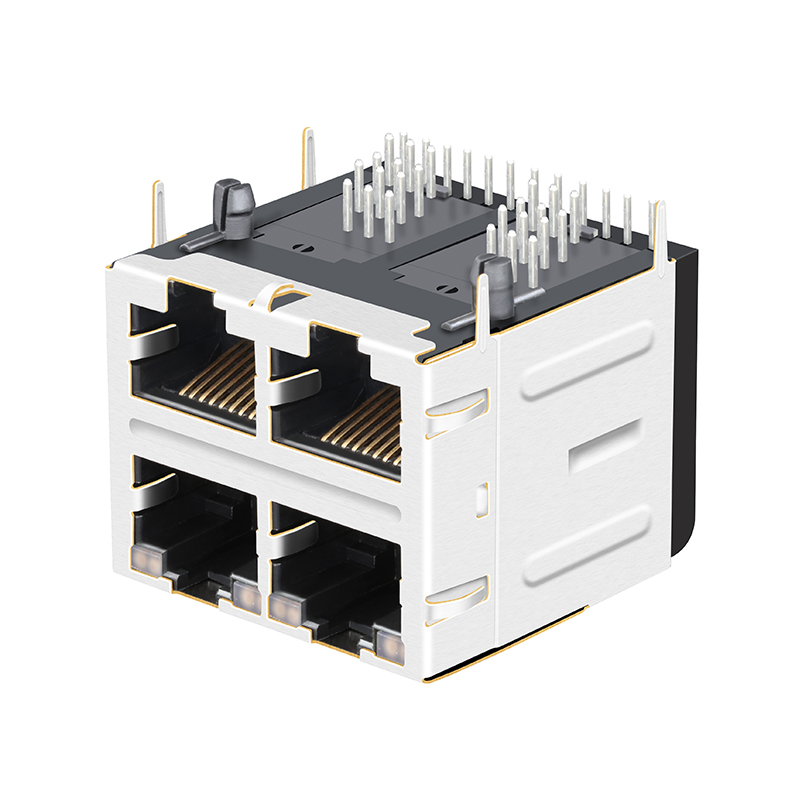

Product Image 2
Product Details 1
Product Details 2
Product Details 3
Product Details 4
Product Details 5
Product Details 6
Product Details 7
Product Details 8
Product Details 9

Product Overview

A specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL. Equipped with advanced manufacturing facilities and test instruments, providing professional complete solutions for magnetic components alongside strong technical support. Products are widely implemented in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
Main Products:
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

Frequently Asked Questions

Q1: Are you a manufacturer or trade company?
A: We are a manufacturer that has specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Q2: Can I get some samples?
A: Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Q3: Is OEM available?
A: Yes. We have rich experience and robust capability to bring your design and idea into a real product. We can laser print your brand on the products.
Q4: How about the lead time?
A: We have a highly professional team focused on delivering high quality. Usually, we can ship within 30 days. For specific order details, please consult our team.
Q5: What quality standards and certifications do your products comply with?
A: Our manufacturing processes and products strictly comply with international standards and are certified by ISO9001:2000, RoHS, REACH, CE, and UL.
Q6: What is the operating temperature range for these RJ45 connectors?
A: These industrial-grade components support an operating temperature range of -40°C to 85°C, ensuring reliable performance in harsh environments.
