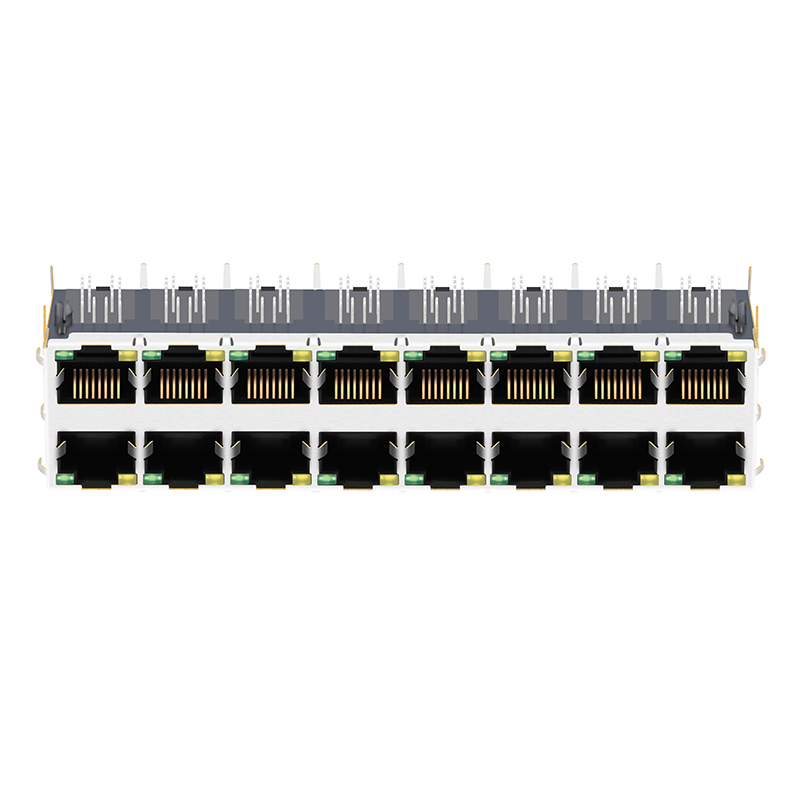

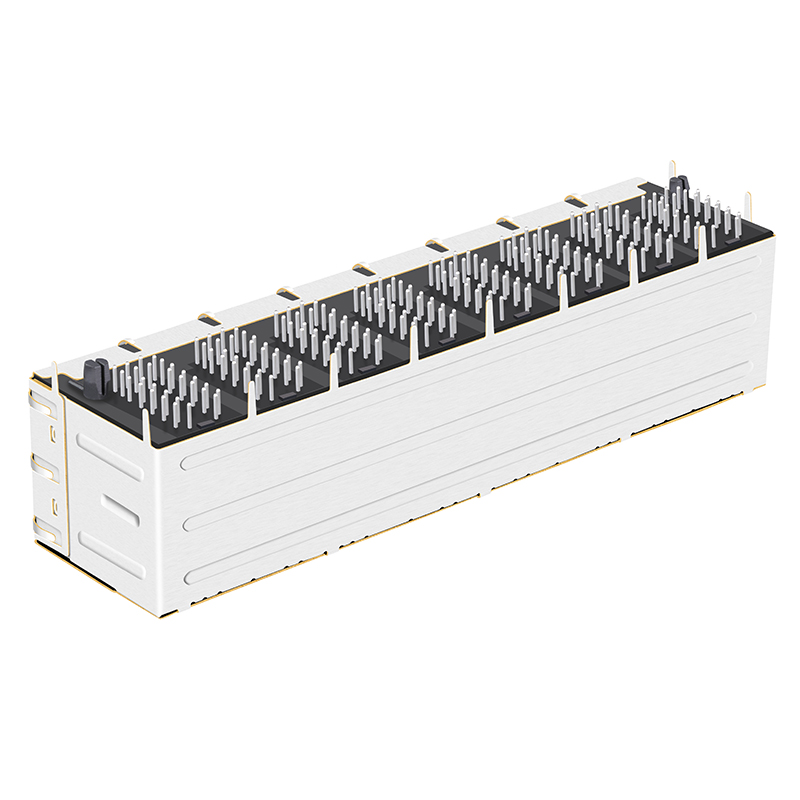

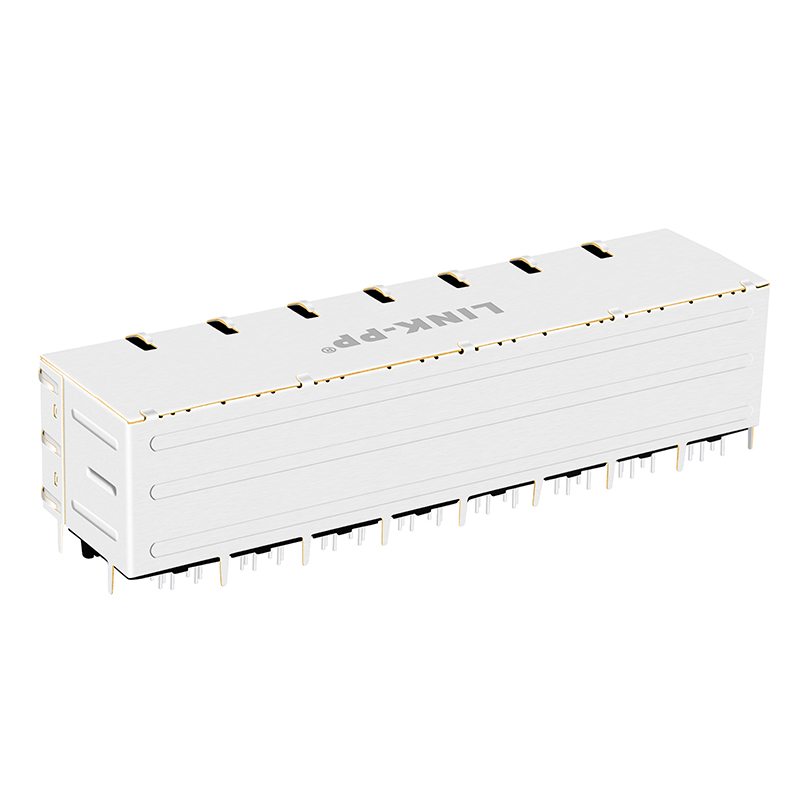

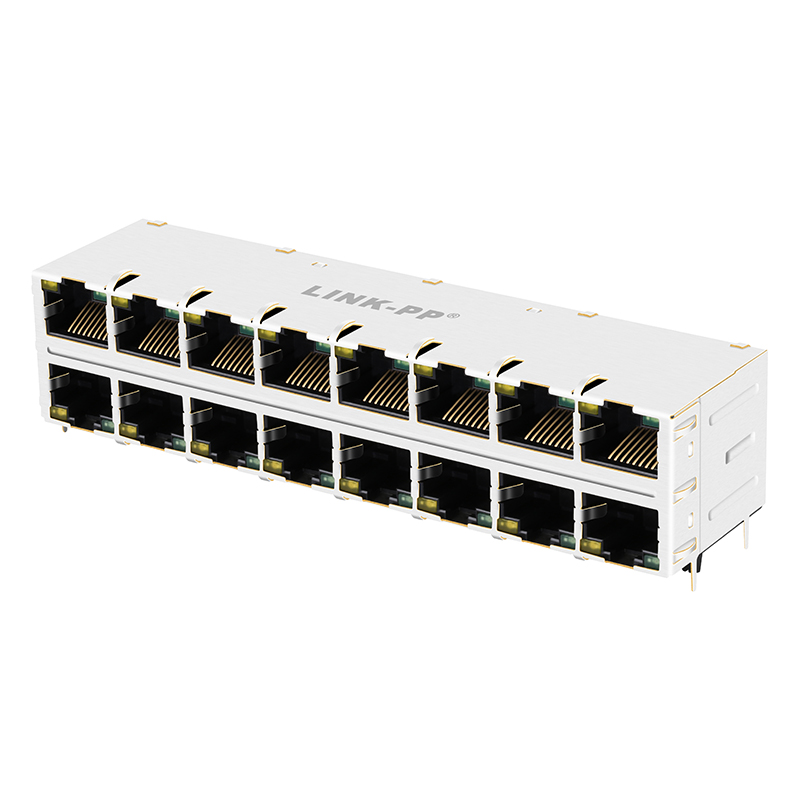

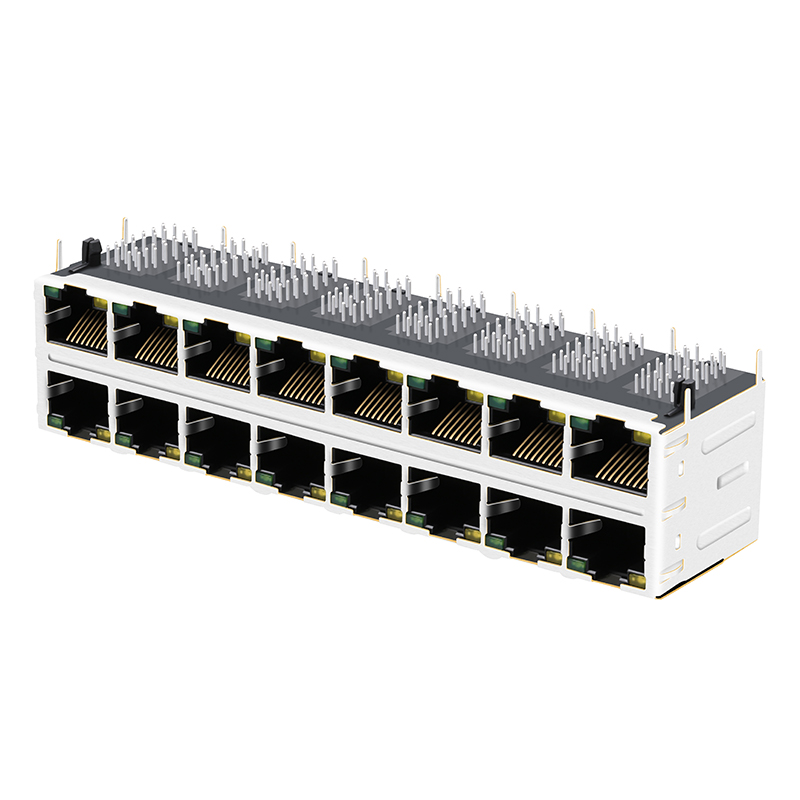

2X8 RJ45 Male to Female Connector 1-1840289-2
2X8 RJ45 Male to Female Connector 1-1840289-2
2X8 RJ45 Male to Female Connector 1-1840289-2
2X8 RJ45 Male to Female Connector 1-1840289-2
2X8 RJ45 Male to Female Connector 1-1840289-2
1 / 5
2X8 RJ45 Male to Female Connector 1-1840289-2
2X8 RJ45 Male to Female Connector 1-1840289-2
2X8 RJ45 Male to Female Connector 1-1840289-2
2X8 RJ45 Male to Female Connector 1-1840289-2
2X8 RJ45 Male to Female Connector 1-1840289-2

2X8 RJ45 Male to Female Connector 1-1840289-2

Send Inquiry

Product Description

RJ45 Male to Female Connector Product Range
2X8 RJ45 Male to Female Connector 1-1840289-2
Products Description
Item RJ45 Female Connector
Compatible With 1-1840289-2
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 2x8 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Specification Drawing
☞ Below Products for More Information ☞
Product Matrix Overview
Detailed Images
Detailed View 1
Detailed View 2
Detailed View 3
Detailed View 4
Detailed View 5
Detailed View 6
Detailed View 7
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Manufacturing Facility 1
Manufacturing Facility 2
Manufacturing Facility 3
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
What is your advantage?
19 years of production experience and we are a partner with global leading brands for many years.
